TRANSMISSION

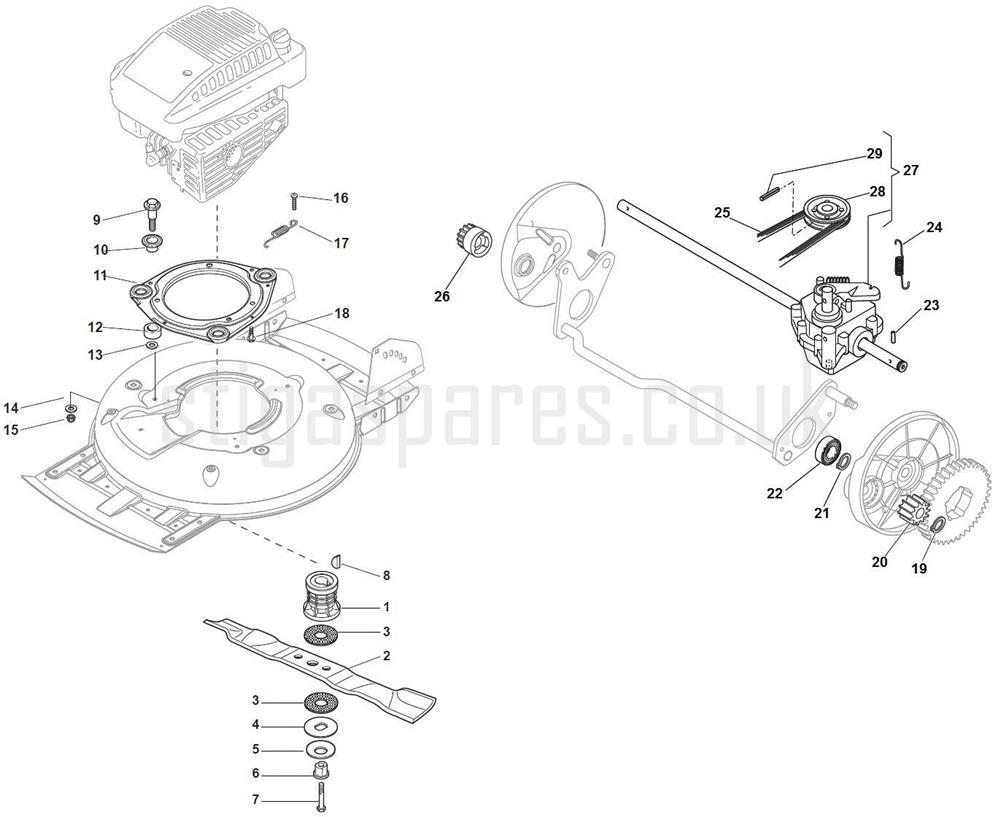

TRANSMISSION assembly details for Stiga MULTICLIP PRO 50 S SVAN (H160) 291502038/S14 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465612/1FRICTION BLADE BOSS D=25£14.45 Add to
002181004146/0MULTICLIP BLADE 48/50cm£15.94 Add to
003322672110/1FRICTION WASHER 18.3 x 60 x 1.5£1.91 Add to
004322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
005112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
006122041940/0METAL BUSH 25 x 19 x 15£5.87 Add to
007112736850/0HEX-HEAD SCREW 3/8" x 2½"£2.32 Add to
008112139150/0WOODRUFF KEY D=25mm£2.14 Add to
009122524329/0HEXAGON BOLT M8£12.68 Add to
010322672201/0RUBBER GROMMET£6.27 Add to
011381207221/1ENGINE MOUNTING PLATE AVS [YELLOW] MCS50£32.99 Add to
012322250012/0AVS RUBBER DAMPER£9.00 Add to
013122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
014112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
016112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
017122450444/0SPRING£2.87 Add to
018112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
019112608600/0CIRCLIP D=12£2.08 Add to
020122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
021112608600/0CIRCLIP D=12£2.08 Add to
022119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
023122753000/0PIN D=5.2 x 25.65£2.06 Add to
024122450439/0TENSION SPRING£3.69 Add to
025135064100/0TRAPEZOIDAL BELT Z30£10.50 Add to
026122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
027181003109/1AGEARBOX [GREY] RATIO 6:1£162.54 Add to
028122601909/0PULLEY£6.01 Add to
029112645705/0ROLL PIN D=5 x 32£2.02 Add to
