BLADE

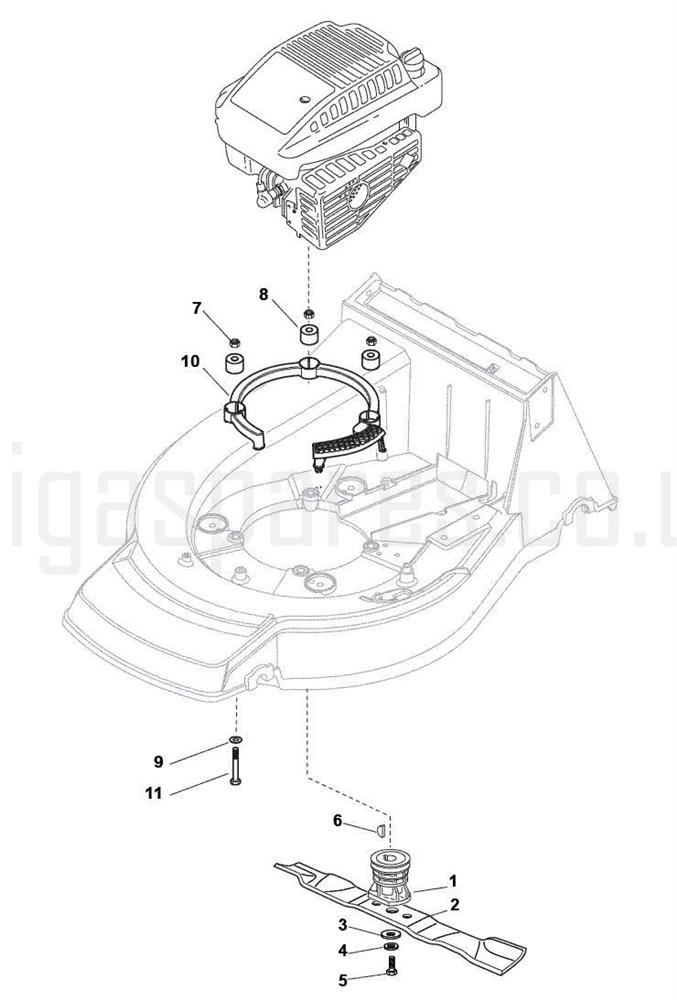

BLADE assembly details for Stiga TURBO POWER 50 SB (B&S 625E) 295506028/S15 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465638/1BLADE BOSS D=22.2mm£15.52 Add to
002181004366/2MULCHING BLADE 48cm£16.36 Add to
003122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
004112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
005112736815/0HEX-HEAD SCREW TE 3/8" x 2¾"£4.90 Add to
006112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
007112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
008122170835/0ENGINE SPACER£6.63 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
010322170964/0ENGINE SUPPORT RING£4.42 Add to
011112692050/0HEX-HEAD SCREW£1.91 Add to
