BLADE

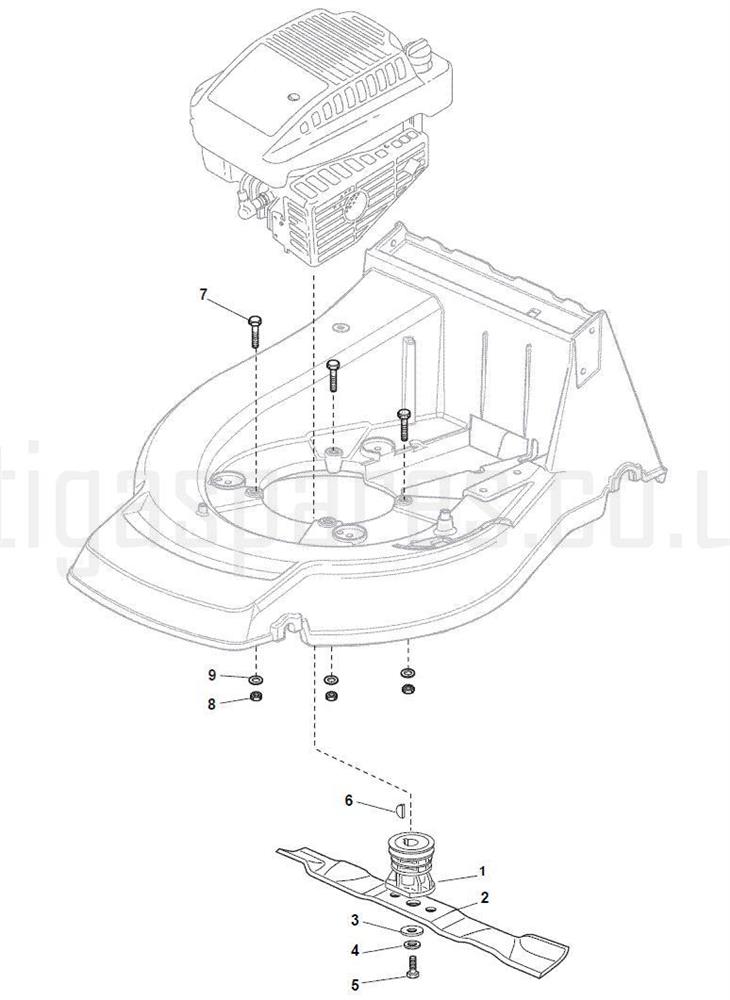

BLADE assembly details for Stiga TURBO POWER 53 SB (B&S 675 EX) 292166028/S14 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465607/4BLADE BOSS D=22.2mm£10.09 Add to
002181004381/1BLADE 51cm£17.85 Add to
003122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
004112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
005112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
006112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
007112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
007112692080/0HEX-HEAD SCREW M8 x 90£2.06 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
