CHASSIS

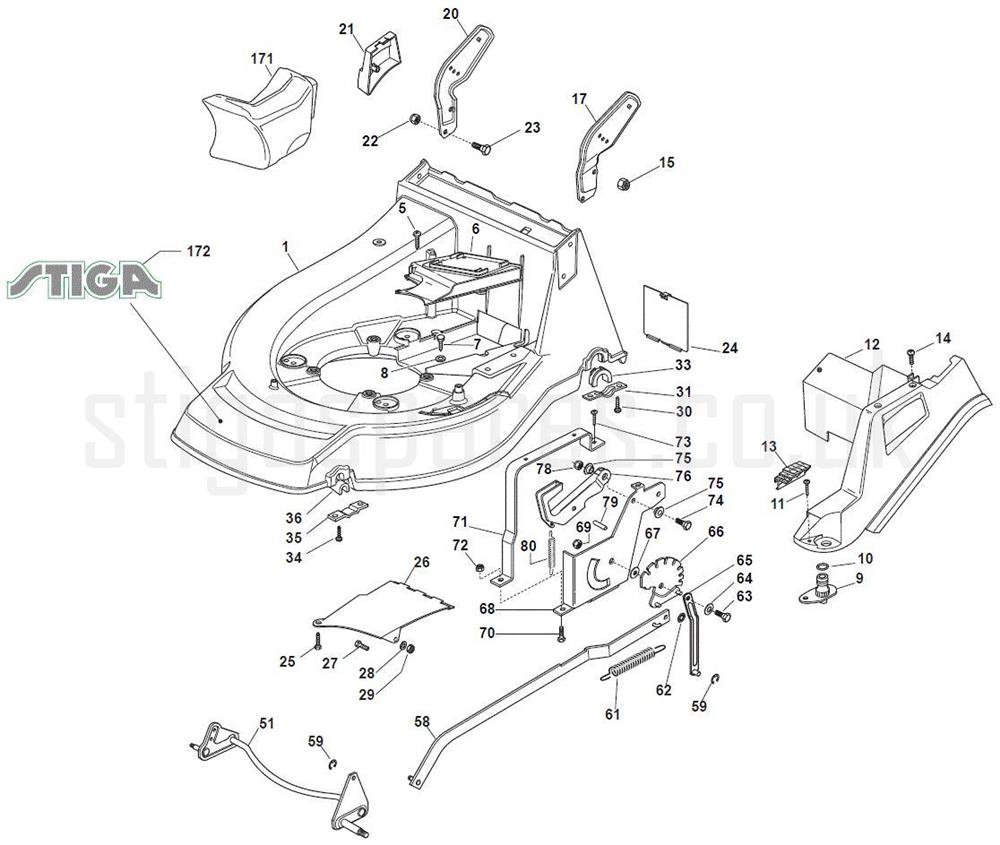

CHASSIS assembly details for Stiga TURBO POWER 53 SB (B&S 675 EX) 292166028/S14 2015 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004744/0ALUMINIUM DECK NP53 [GREY]£441.19 Add to
005112728522/0SELF-TAP SCREW TCB 5.5 x 19£2.06 Add to
006322060200/1BELT PROTECTION GUARD NP53£4.59 Add to
007112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
008112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
009122034000/0WASHING CONNECTION£2.06 Add to
010119035000/0O RING 10.77 x 2.62£5.46 Add to
011112728519/0SELF-TAP SCREW TCB 5.5 x 16£1.79 Add to
012322060144/3DECK ADJUST COVER£13.23 Add to
013122570200/0HEIGHT POSITION PLATE£2.06 Add to
014112728520/0SELF-TAP SCREW TCB 5.5 x 13£1.79 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
017322778397/1LEFT HANDLE BRACKET£13.77 Add to
020322778396/1RIGHT HANDLE BRACKET£13.77 Add to
021122601001/0RIGHT BRACKET COVER£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
024122595352/0INSPECTION DOOR£2.74 Add to
025112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
026322108205/1COVER PLATE£10.50 Add to
027112789000/0SCREW TE M5 x 12£2.06 Add to
028112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
029112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
030112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
031322545147/0AXLE PLATE£2.32 Add to
033322038407/0AXLE U PLATE£2.06 Add to
034112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
035322545156/0STOP PLATE£1.79 Add to
036122038400/1FRONT AXLE BUSH£1.91 Add to
051381302865/0FRONT WHEELS AXLE£42.53 Add to
058381002040/0HEIGHT ADJUST TIE BAR£30.17 Add to
059112000930/0CIRCLIP D=6£0.79 Add to
061122446187/0SPRING£6.42 Add to
062112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
063122529662/0FULCRUM PIN£2.87 Add to
064322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
065381001269/0REAR AXLE ROD£5.05 Add to
066381000479/2HEIGHT ADJUST QUADRANT£8.73 Add to
067322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
068322785109/0HEIGHT ADJUST SUPPORT£7.10 Add to
069112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
070112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
071322785113/0HANDLE SUPPORT BAR£3.69 Add to
072112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
073112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
074112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
075125038002/1BUSH£2.06 Add to
076322393611/2HEIGHT ADJUSTMENT HANDLE£4.91 Add to
078112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
079112622640/0CYLINDRICAL PIN D=6 x 28£2.06 Add to
080122446175/0SPRING£2.14 Add to
171322140224/1MULCHING PLUG [NP53]£38.12 Add to
172114367494/2EMBLEMA LABEL STIGA 3D 93 x 19mm£9.54 Add to
