Transmission

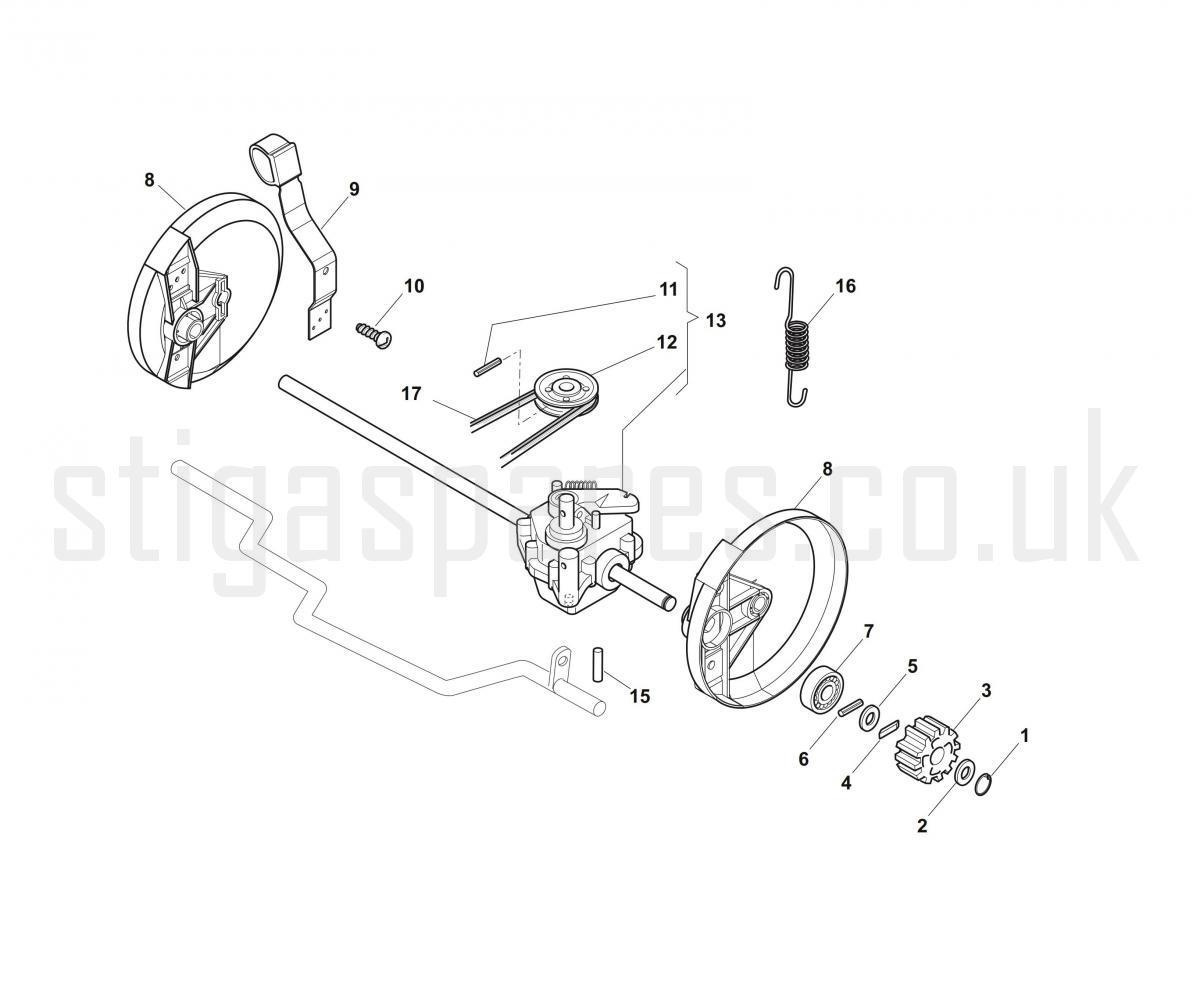

Transmission assembly details for Stiga COLLECTOR 46 S 299274648 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112608520/0CIRCLIP D=11£2.54 Add to
002322160520/0DUST COVER£2.06 Add to
003122570125/0RIGHT/LEFT PINION GEAR£15.00 Add to
004122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
005322160520/0DUST COVER£2.06 Add to
006112622620/0CYLINDRICAL PIN D=4 x 20£1.79 Add to
007122122202/0BEARING D12£2.47 Add to
008322600106/1INNER WHEEL COVER D=190£7.10 Add to
009381003303/0REAR HEIGHT ADJUST LEVER£17.86 Add to
010112728689/0SCREW KA50 x 12£1.79 Add to
011112713801/0DOWEL PIN M6 x 8£2.74 Add to
012122601909/0PULLEY£6.01 Add to
013181003093/1GEARBOX [BLACK]£103.85 Add to
015122753001/0PIN D=4 x 32£2.06 Add to
016122450438/0SPRING£4.10 Add to
017135063750/0TRAPEZOIDAL BELT X10 LP=680£10.55 Add to
