Blade

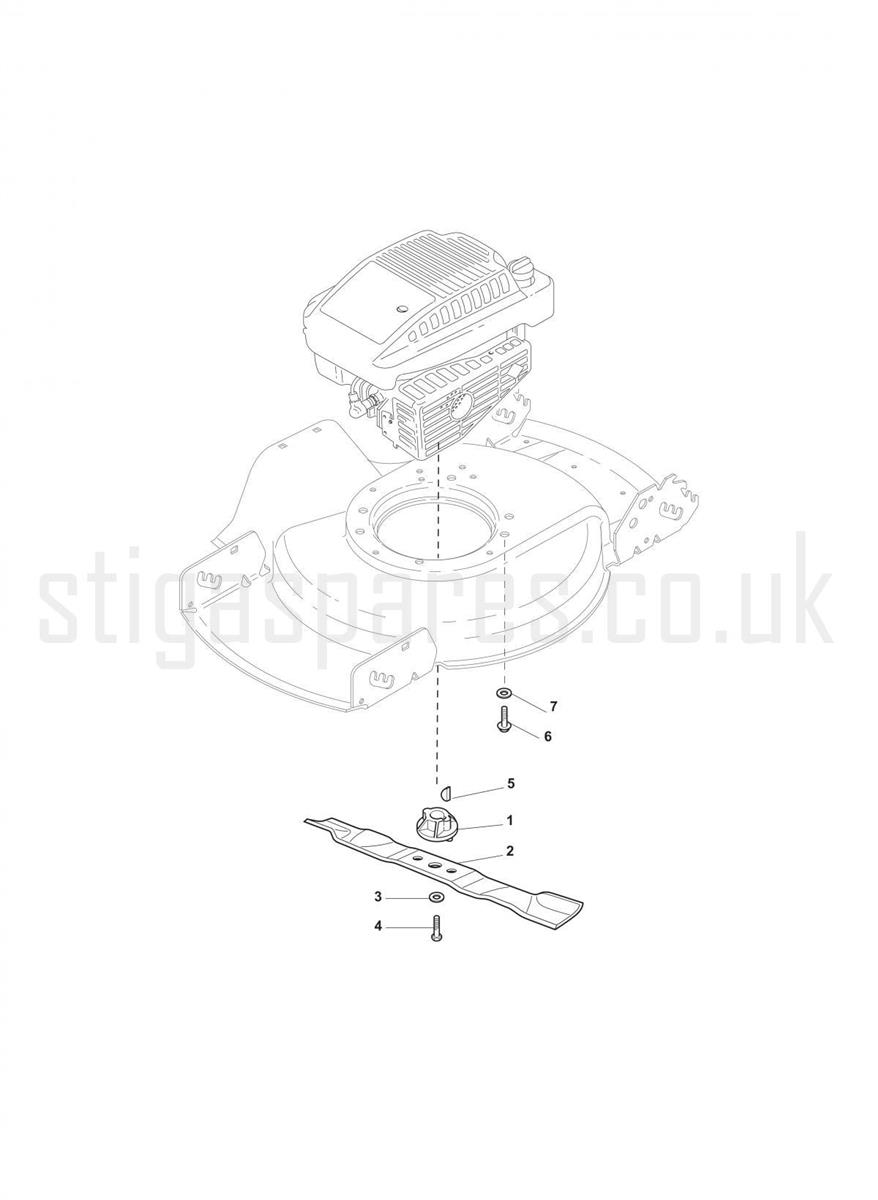

Blade assembly details for Stiga DINO 47 292470048 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465617/0BLADE HUB D=22.2 DI 474-MC 484£12.40 Add to
002181004124/1BLADE L=450£12.96 Add to
003112530140/0WASHER M10£2.32 Add to
004112735694/0HEX-HEAD SCREW 3/8" X 1 1/2" 24 UNF£1.97 Add to
005112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
006112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
007112521355/0WASHER 3/8" 10 x 18 x 2£1.79 Add to
