Deck

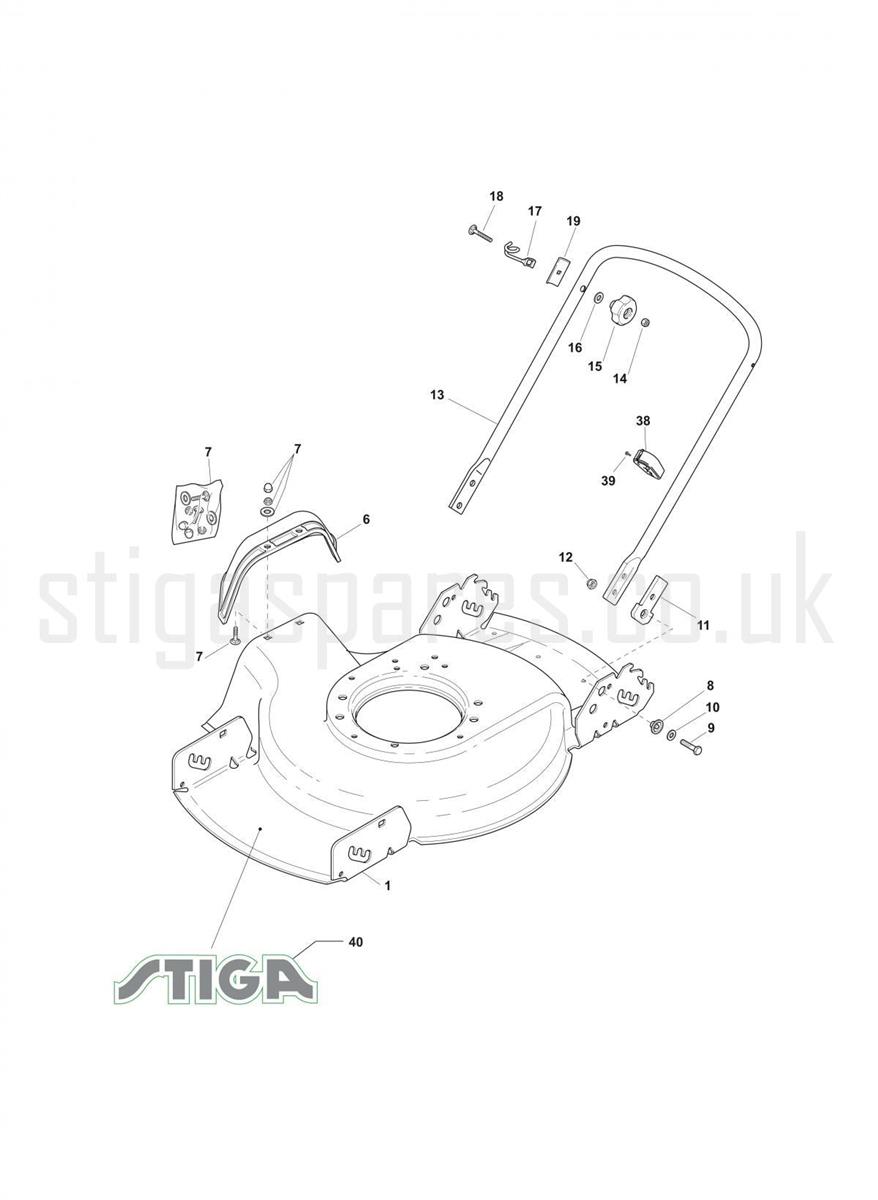

Deck assembly details for Stiga DINO 47 292470048 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381004733/0	DECK DI 474 WRINKLED GREY STIGA'14	£204.69	Add to
006	322600159/0	BLACK PLASTIC STONE GUARD DI 474	£11.73	Add to
007	381008502/0	SCREWS OUTFIT DI 474	£5.05	Add to
008	322041958/0	HANDLE/CHASSIS INSULATION BUSH MC480	£1.79	Add to
009	112793701/0	HEX-HEAD SCREW M8 x 30	£1.76	Add to
010	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
011	322551577/0	LOWER HANDLE INSULATION PLATE MC 480	£3.55	Add to
012	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
013	381007548/0	HANDLE LOWER PART MC480/DI47 YELLOW	£27.27	Add to
014	112361005/0	HEXAGON NUT 1/4" UNC	£2.71	Add to
015	322399810/0	HANDWHEEL w/o NUT [BLACK]	£8.73	Add to
016	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
017	122430311/0	PULL CORD GUIDE	£6.87	Add to
018	112820655/0	SCREW TTDQ 1/4" x 2 1/4"	£1.79	Add to
019	322545137/0	HANDLE CLAMP PLATE	£2.06	Add to
038	322192001/0	CABLE CLAMP	£2.06	Add to
039	112728706/0	SELF-TAPPING SCREW K40 x 16	£2.06	Add to
040	114367494/2	EMBLEMA LABEL STIGA 3D 93 x 19mm	£9.54	Add to
