Wheels and Hub Caps

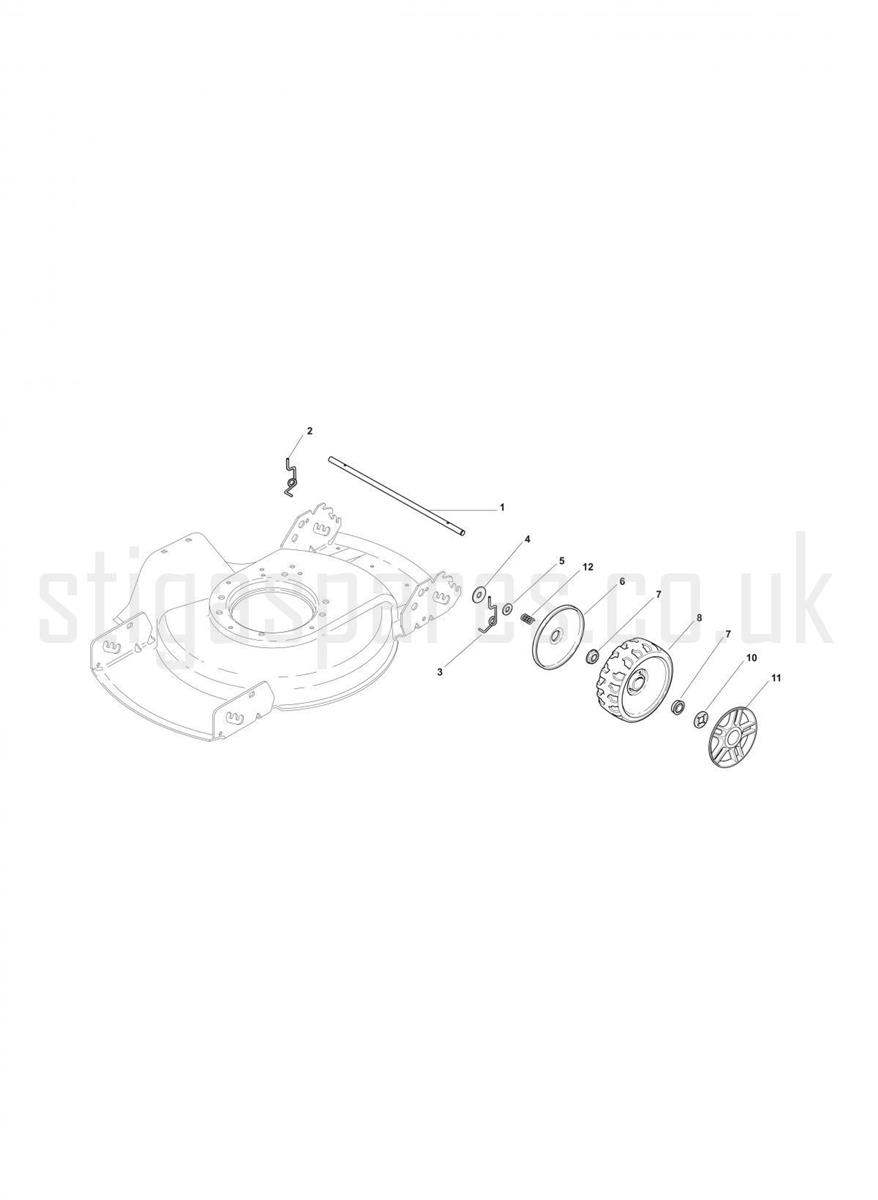

Wheels and Hub Caps assembly details for Stiga DINO 47 B 292470128 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322033395/0FRONT/REAR WHEELS AXLE DINO 47£10.50 Add to
002122450442/0HEIGHT ADJUST SPRING R/H£2.06 Add to
003122450441/0HEIGHT ADJUST SPRING L/H£2.06 Add to
004122671654/0WASHER 12,5X38X2£2.32 Add to
005112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
006322600095/0INNER WHEEL COVER D=165£2.06 Add to
007122122206/0BEARING£2.32 Add to
008322686091/1WHEEL D=165mm£7.10 Add to
010122020050/0CIRCLIP D=12£2.06 Add to
011322110491/0HUB CAP D=170 [GREY]£2.47 Add to
012122430215/0SPRING£3.69 Add to
