Deck And Height Adjusting

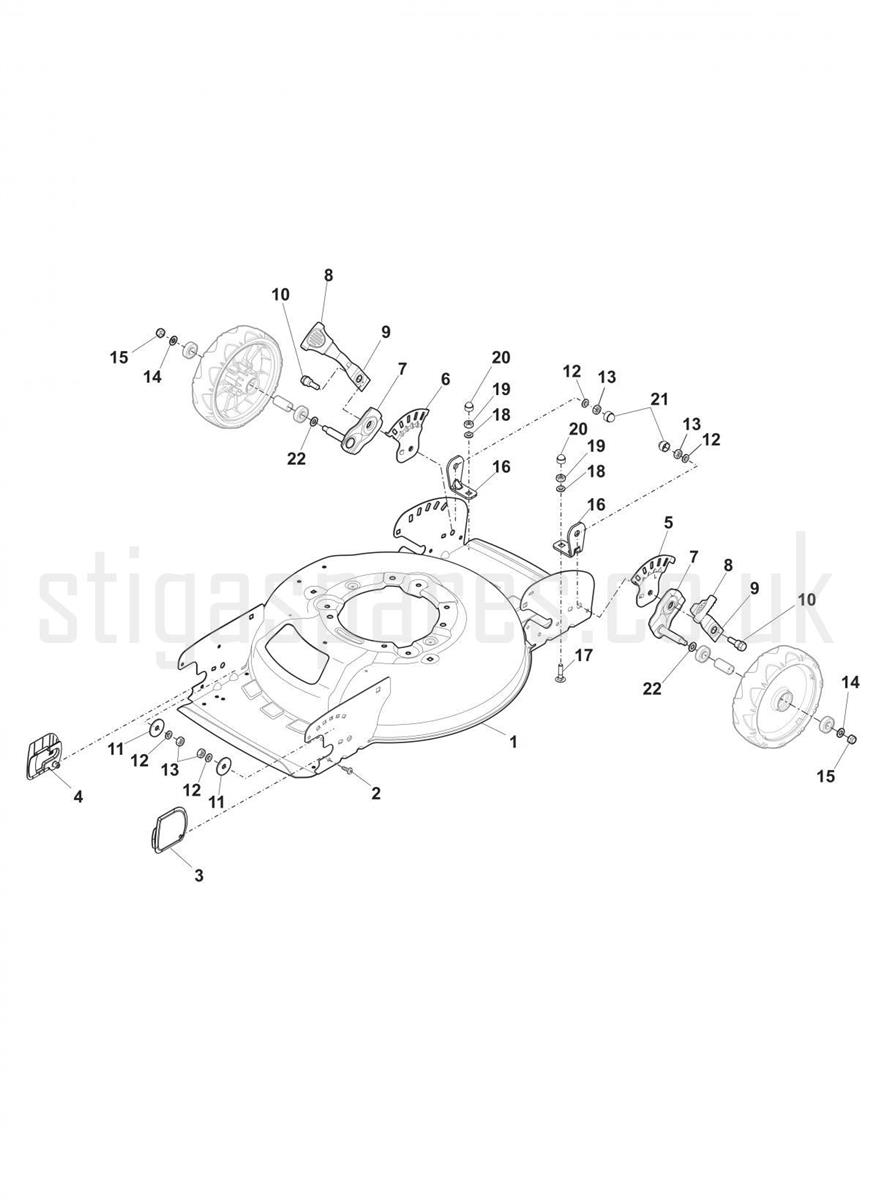

Deck And Height Adjusting assembly details for Stiga MULTICLIP 47 BLUE 298471048 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381004783/1	STEEL DECK MCS 47 [BLACK]	£162.60	Add to
002	112728697/0	SELF-TAPPING SCREW TORX K50 x 16	£2.06	Add to
003	322109912/0	L/H SIDE COVER [GREY] MCS47	£2.78	Add to
004	322109911/0	R/H SIDE COVER [GREY] MCS47	£2.32	Add to
005	322735597/1	HEIGHT ADJUST QUADRANT L/H	£2.54	Add to
006	322735595/1	HEIGHT ADJUST QUADRANT R/H	£3.00	Add to
007	381005161/0	WHEEL STUB AXLE CR D=240	£13.64	Add to
008	322321537/0	HEIGHT ADJUST LEVER	£5.37	Add to
009	122394501/0	HEIGHT ADJUST KNOB	£2.06	Add to
010	122519811/0	WHEEL BOLT	£2.06	Add to
011	112523070/0	WASHER M8 8.5 x 32 x 2.5	£2.06	Add to
012	112583500/0	WASHER M8 UNI 1751 WZ	£2.06	Add to
013	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
015	112155015/0	SELF-GRIP NUT M8(FROM 1ST SEPT 2015)	£2.06	Add to
016	322608569/0	REINFORCEMENT BRACKET	£3.15	Add to
017	112815200/0	SCREW TTDQ M6X16	£2.06	Add to
018	112582100/0	LOCK WASHER M6	£2.06	Add to
019	112292100/0	HEXAGON NUT M6	£1.47	Add to
020	118203853/0	BLACK NUT CAP M6	£3.00	Add to
021	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
022	122671661/0	WASHER ZINCED 12.4 x 20 x 1	£1.79	Add to
