Deck And Height Adjusting

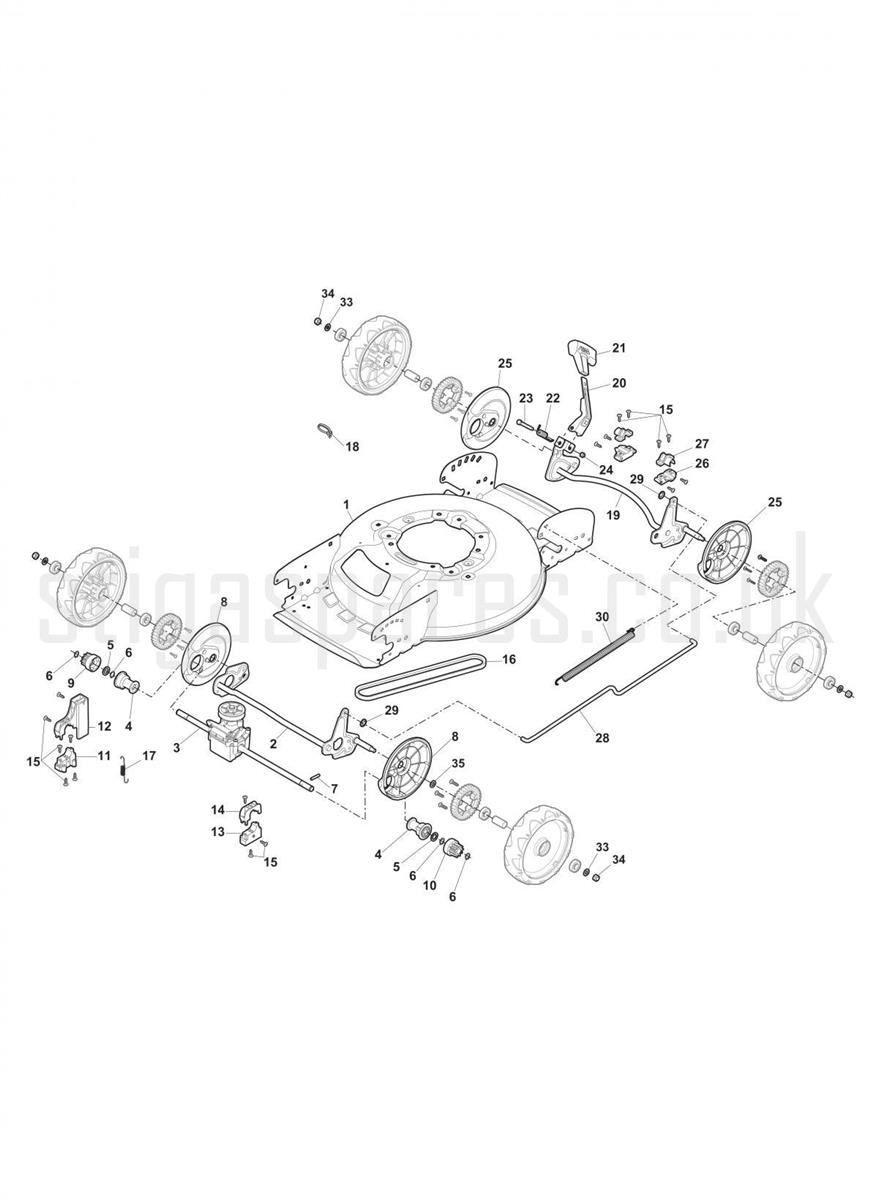

Deck And Height Adjusting assembly details for Stiga MULTICLIP 47 SQ B 298472828 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004782/1STEEL DECK MCS 47 S.D. [GREY] STIGA£170.61 Add to
002381302877/0FRONT WHEELS AXLE£23.58 Add to
003181003113/0GEARBOX RED. 6:1£166.13 Add to
003181003123/0GEARBOX [GREY] 7:1£51.96 Add to
004322042066/0AXLE BUSH£1.91 Add to
005112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
006112608600/0CIRCLIP D=12£2.08 Add to
007122753000/0PIN D=5.2 x 25.65£2.06 Add to
008322600204/0INNER WHEEL COVER D=180£3.69 Add to
009122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
010122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
011322785476/0LOWER RH SUPPORT SHAFT BUSH£3.69 Add to
012322785477/0UPPER RH SUPPORT SHAFT BUSH£5.06 Add to
013322785478/0LOWER LH SUPPORT£3.49 Add to
014322785479/0UPPER LH SUPPORT SHAFT BUSH£3.49 Add to
015112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
016135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
016135063802/0TRAPEZOIDAL BELT Z 27 1/2 LP=725(PLASTIC GEAR)£9.96 Add to
017122450439/0TENSION SPRING£3.69 Add to
018133320022/0FASTPOINT BAND ART. 0384.AA01 L=160£2.06 Add to
019381302879/0REAR WHEELS AXLE£25.28 Add to
020322322857/0REAR HEIGHT ADJ.LEVER ZNW D180/200 CR/NT£6.27 Add to
021322394527/0HEIGHT ADJUST KNOB£5.52 Add to
022122446192/0SPRING£2.47 Add to
023122534131/0PIN£2.06 Add to
024112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
025322600204/0INNER WHEEL COVER D=180£3.69 Add to
026322785474/0LOWER AXLE SUPPORT£2.06 Add to
027322785475/0UPPER AXLE SUPPORT£2.06 Add to
028122033332/0HEIGHT ADJUST ROD£9.54 Add to
029112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
030122446184/0SPRING£5.21 Add to
033112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
034112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
035122671661/0WASHER ZINCED 12.4 x 20 x 1£1.79 Add to
