Handle, Lower Part

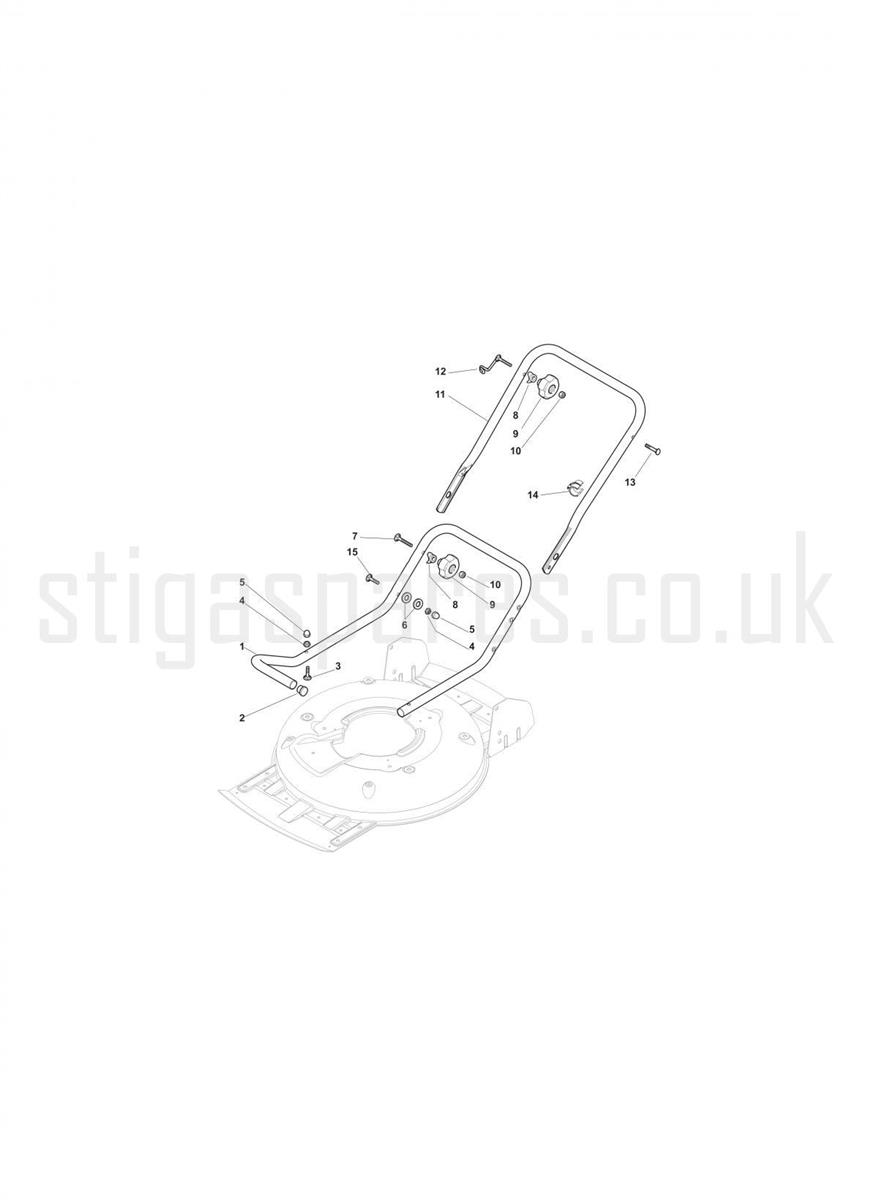

Handle, Lower Part assembly details for Stiga MULTICLIP 50 S 291502048 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006677/0	LOWER HANDLE [YELLOW] MCS50	£42.53	Add to
002	118566110/0	HANDLE CAP D=22 [BLACK]	£2.06	Add to
003	112818900/0	SCREW TTDQ M8 x 35	£1.97	Add to
004	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
005	118203854/0	NUT CAP M8 [BLACK]	£2.06	Add to
006	112819100/0	CARRIAGE BOLT M8 x 40	£2.06	Add to
007	112819121/0	CARRIAGE BOLT M8 X 55	£1.96	Add to
008	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
009	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
010	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
011	381007542/1	MIDDLE HANDLE [YELLOW] MCS 50-47	£42.53	Add to
012	122430313/0	PULL CORD GUIDE	£4.37	Add to
013	112819201/0	CARRIAGE BOLT M8 x 60	£3.15	Add to
014	118390020/0	CABLE CLIP	£1.91	Add to
015	112521370/0	WASHER M12 13 24 x 2.5	£2.06	Add to
