Transmission

Transmission assembly details for Stiga MULTICLIP 50 S H 291502138 2016 model

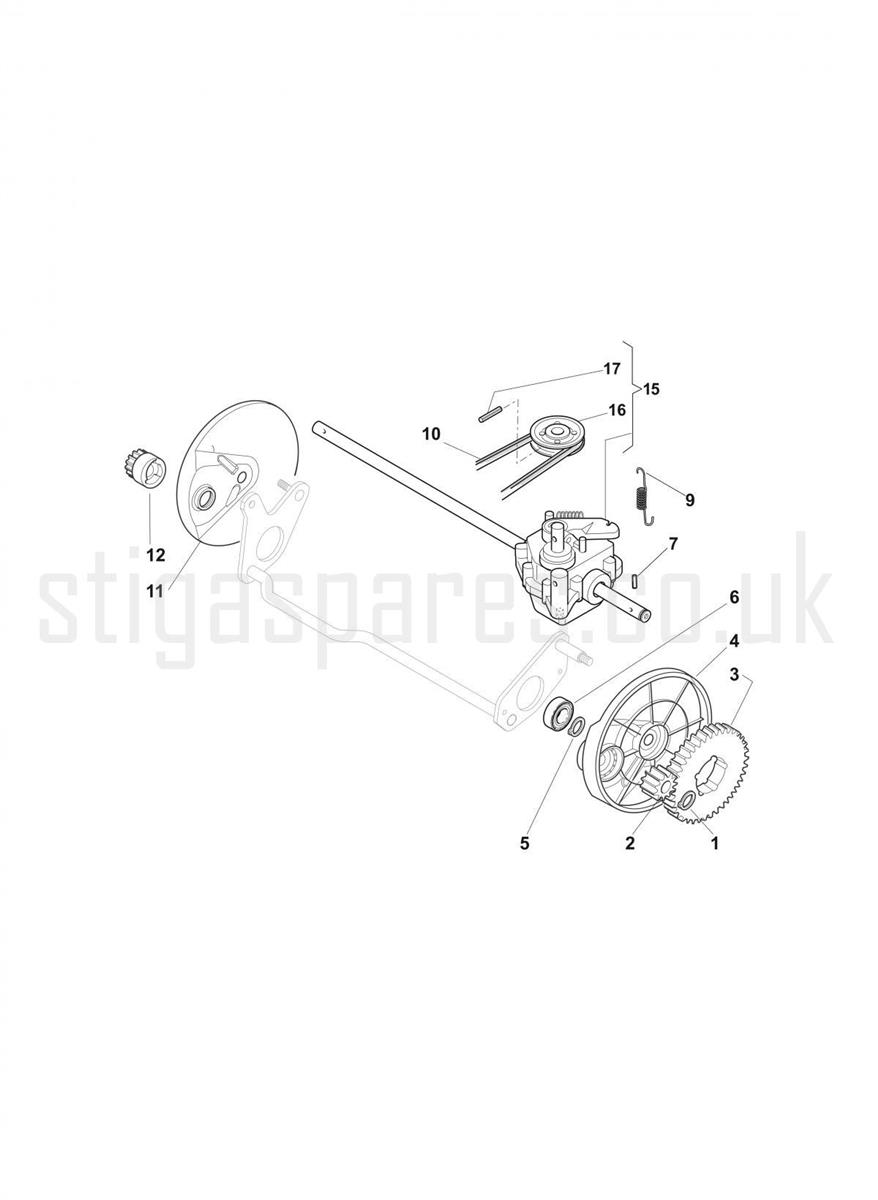

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	112608600/0	CIRCLIP D=12	£2.08	Add to
002	122570120/1	LEFT PINION Z10 GEAR(METAL)was Plastic	£8.75	Add to
003	122120105/2	DRIVE GEAR WHEEL	£10.36	Add to
004	322600267/0	INNER WHEEL COVER	£6.09	Add to
005	112608600/0	CIRCLIP D=12	£2.08	Add to
006	119216035/0	BEARING 6001 2RS (12 x 28 x 8)	£3.83	Add to
007	122753000/0	PIN D=5.2 x 25.65	£2.06	Add to
009	122450439/0	TENSION SPRING	£3.69	Add to
010	135063902/1	TRAPEZOIDAL BELT Z 29.5 LP=772	£12.24	Add to
011	322600267/0	INNER WHEEL COVER	£6.09	Add to
012	122570110/1	RIGHT PINION Z10 GEAR(METAL)was Plastic	£8.52	Add to
015	181003122/0	GEARBOX BI.CI.DI. [GREY] Red. 7:1	£130.61	Add to
016	122601909/0	PULLEY	£6.01	Add to
017	112645705/0	ROLL PIN D=5 x 32	£2.02	Add to
