Deck And Height Adjusting

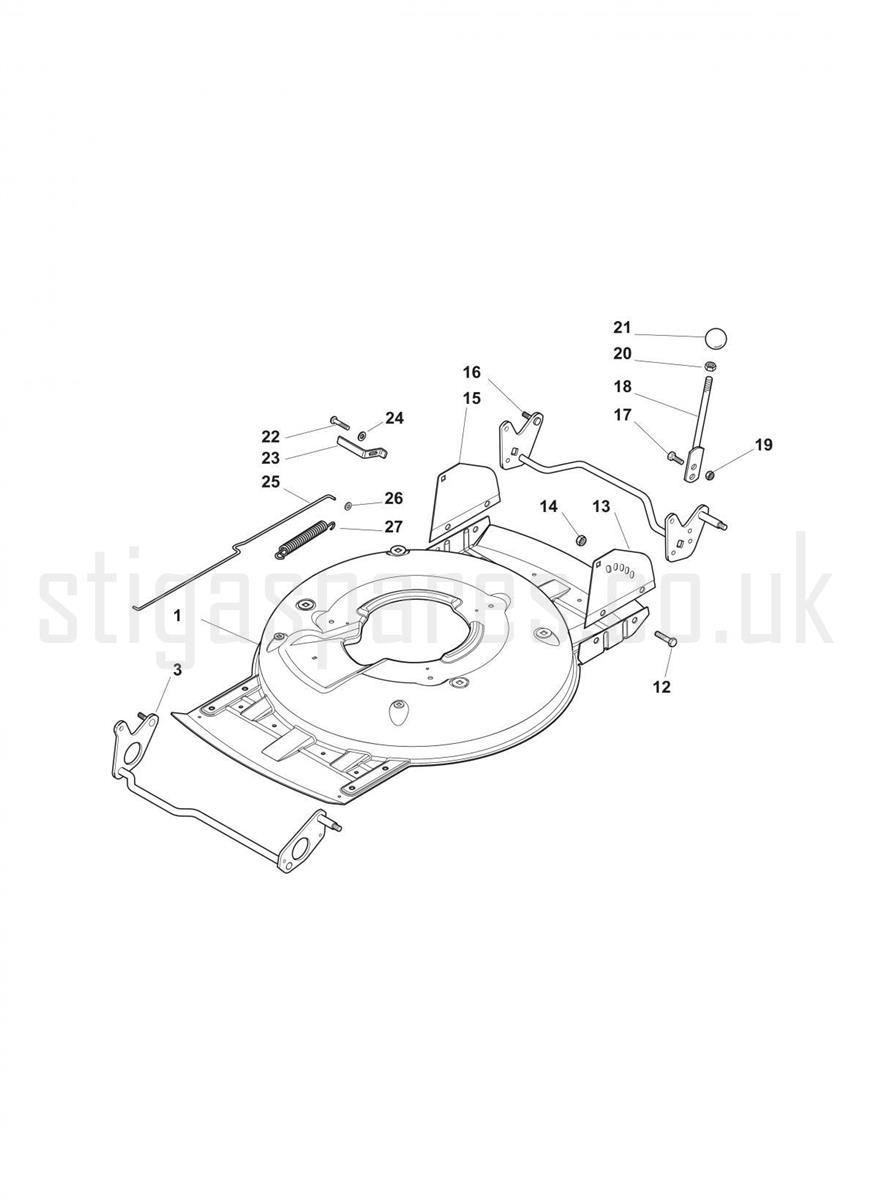

Deck And Height Adjusting assembly details for Stiga MULTICLIP PLUS 50 S 291502248 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004735/1STEEL DECK MCS 50 [GREY]£211.50 Add to
003381302863/0FRONT WHEELS AXLE£47.97 Add to
012112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
013381545105/0LEFT REAR PLATE£10.50 Add to
014112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
015381545104/0RIGHT REAR PLATE£10.77 Add to
016381302861/1REAR WHEELS AXLE£45.26 Add to
017112789000/0SCREW TE M5 x 12£2.06 Add to
018381003323/0HEIGHT ADJUST LEVER£16.36 Add to
019112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021322399812/0BALL KNOB£3.41 Add to
022112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
023322551529/0WHEELS CLEANING PLATE£4.10 Add to
024112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
025122033329/0HEIGHT ADJUST ROD£9.62 Add to
026112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
027122446184/0SPRING£5.21 Add to
