Transmission

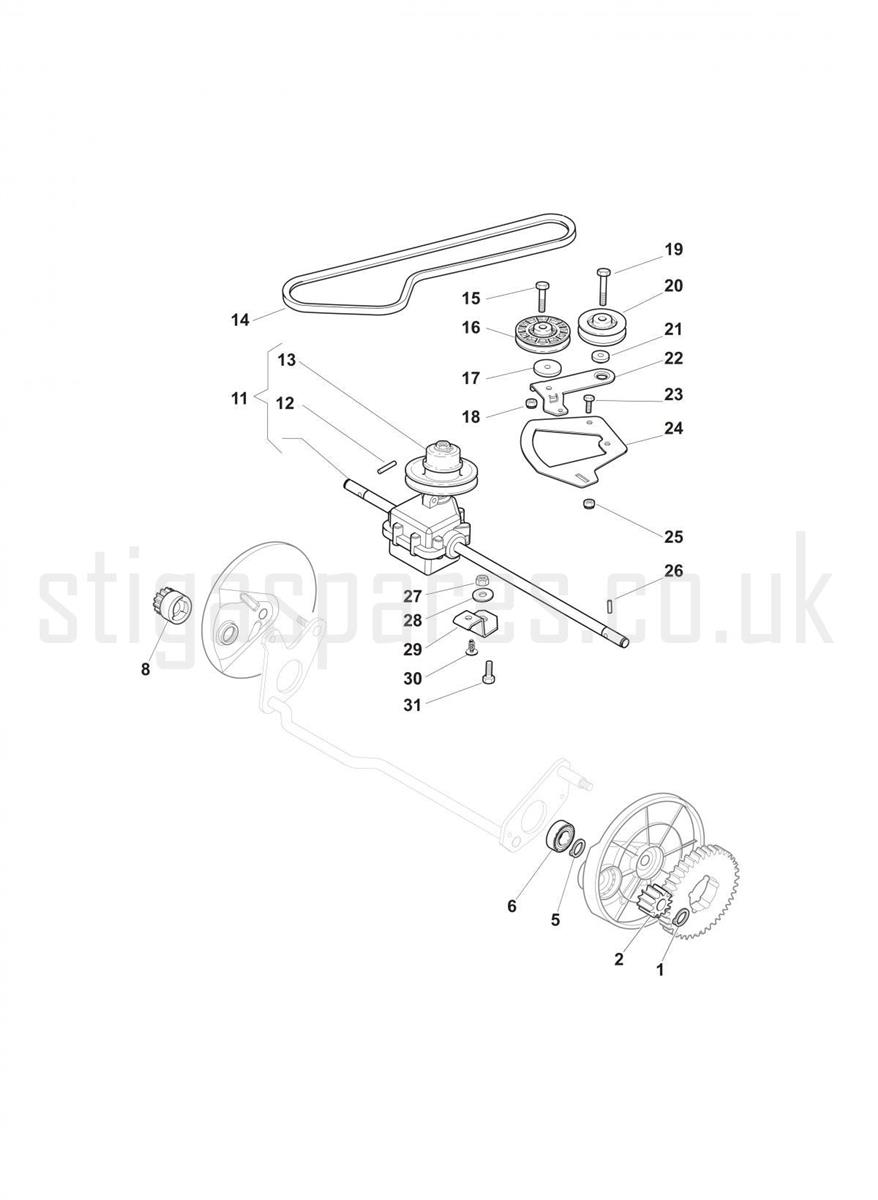

Transmission assembly details for Stiga MULTICLIP PLUS 50 SEV B 291503528 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112608600/0CIRCLIP D=12£2.08 Add to
002122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
005112608600/0CIRCLIP D=12£2.08 Add to
006119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
008122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
011181003098/2GEARBOX [BLACK]£170.61 Add to
012112645700/0PIN£2.06 Add to
013122601932/0VARIATOR PULLEY£58.87 Add to
014135064010/0TRAPEZOIDAL BELT SPZX812£15.13 Add to
015112689500/0SCREW M6 x 40£2.06 Add to
016122601914/0BELT GUIDE PULLEY£21.95 Add to
017322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
018112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
019112674701/0SCREW TE M6 x 35£2.06 Add to
020122601915/0TENSION PULLEY£21.82 Add to
021122671656/0WASHER£6.42 Add to
022322320007/0VARIATOR TENSION ARM£20.04 Add to
023112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
024322806629/0VARIATOR LEVER SUPPORT ZNW MCS 50 4S£25.28 Add to
025112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
026122753000/0PIN D=5.2 x 25.65£2.06 Add to
027112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
028112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
029322551655/0VARIATOR BLOCKING PLATE MCS 50 4S£18.82 Add to
030112728704/1SELF-TAP SCREW K70 x 16£2.06 Add to
031112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
