Transmission

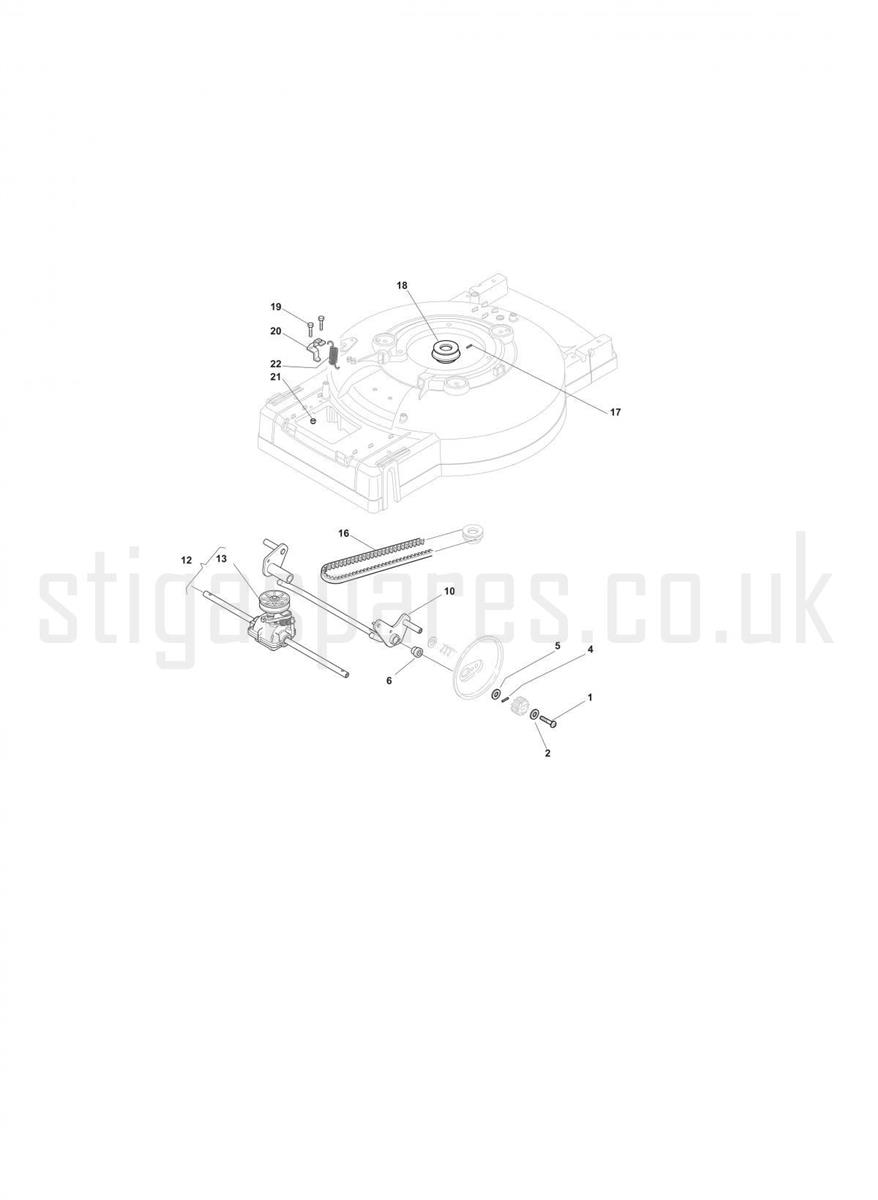

Transmission assembly details for Stiga MULTICLIP PRO 53 S B 293532028 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
002112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
004122753002/0CYLINDRICAL PIN 5 x 25£2.06 Add to
005122671661/0WASHER ZINCED 12.4 x 20 x 1£1.79 Add to
006122038406/0BUSH£2.87 Add to
010381002833/2FRONT WHEELS AXLE£71.14 Add to
012181003110/0GEARBOX [DOG CLUTCH 7:1M]£102.48 Add to
013122601919/0PULLEY D=67£15.41 Add to
016135064010/0TRAPEZOIDAL BELT SPZX812£15.13 Add to
017112714312/0DOWEL PIN M6 x 12£2.06 Add to
018122601917/0DRIVE ENGINE PULLEY D=22mm£24.50 Add to
019112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
020322551659/1SUPPORT BRACKET£21.02 Add to
021112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
022122450437/0SPRING£3.55 Add to
