Wheel and Hub Cap

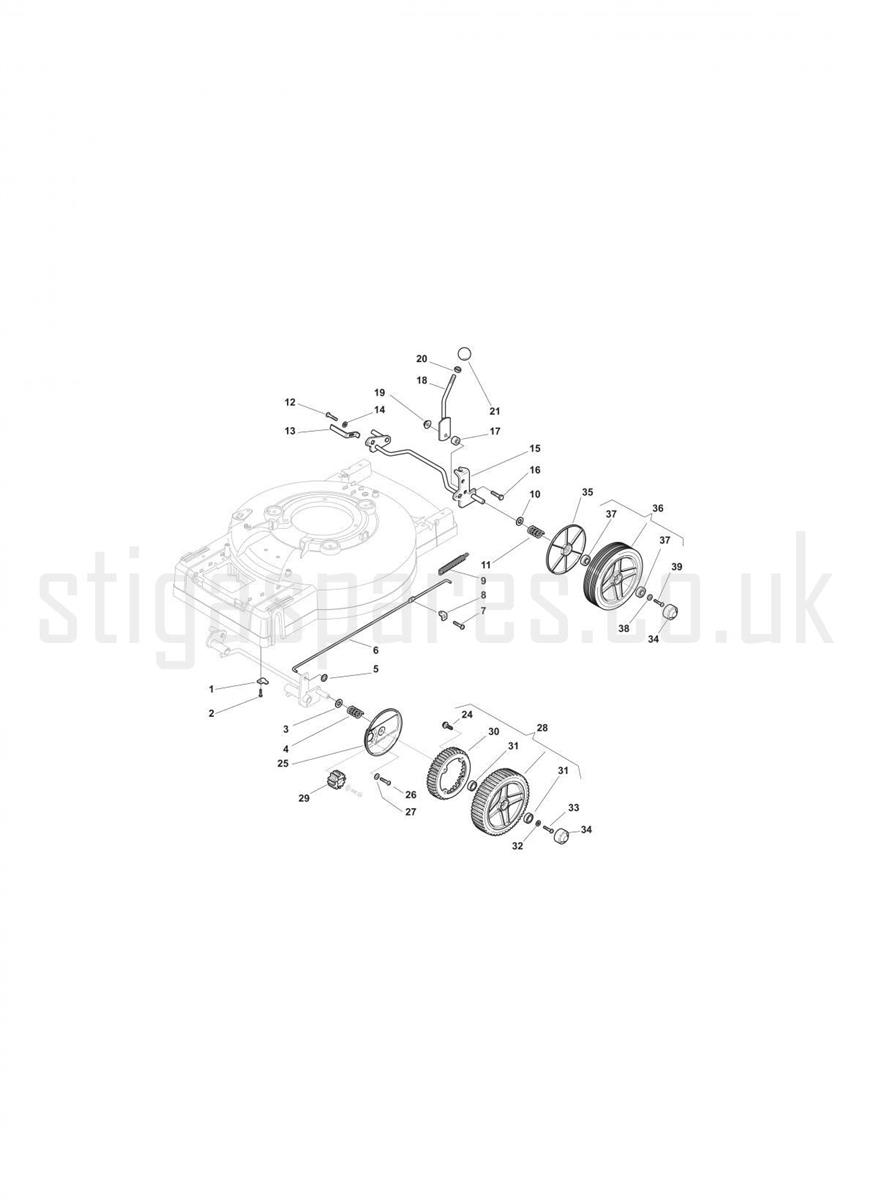

Wheel and Hub Cap assembly details for Stiga MULTICLIP PRO 53 S B 293532028 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322545157/1FRONT AXLE PLATE£3.00 Add to
002112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
003122671659/0WASHER M12 13 x 24 x 2£2.06 Add to
004122430215/0SPRING£3.69 Add to
005112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
006122033331/0HEIGHT ADJUST ROD£17.31 Add to
007112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
008322545139/0RETAINING BRACKET£2.06 Add to
009122446183/0SPRING£9.68 Add to
010122671659/0WASHER M12 13 x 24 x 2£2.06 Add to
011122430215/0SPRING£3.69 Add to
012112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
013322551529/0WHEELS CLEANING PLATE£4.10 Add to
014112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
015381002835/0REAR WHEELS AXLE£45.26 Add to
016112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
017122170830/0SPACER£4.35 Add to
018381003317/0HEIGHT ADJUST LEVER£15.13 Add to
019112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
020112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
021322399812/0BALL KNOB£3.41 Add to
024112728210/0SCREW TORX M4 x 10£1.79 Add to
025322600129/0INNER WHEEL COVER£22.05 Add to
026112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
027112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
028381007367/0ALUMINIUM WHEEL ASSEMBLY 205mm£101.13 Add to
029122570128/0PINION GEAR D=47.5£14.86 Add to
030322120108/0PLASTIC DRIVE GEAR£12.00 Add to
031119216038/0BEARING 6201-2RS C3£6.27 Add to
032112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
033112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
034322110380/0HUB CAP [BLACK]£3.15 Add to
035322600130/0INNER WHEEL COVER£12.96 Add to
036381007365/0ALUMINIUM WHEEL ASSEMBLY 205mm£87.07 Add to
037119216038/0BEARING 6201-2RS C3£6.27 Add to
038112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
039112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
