Blade

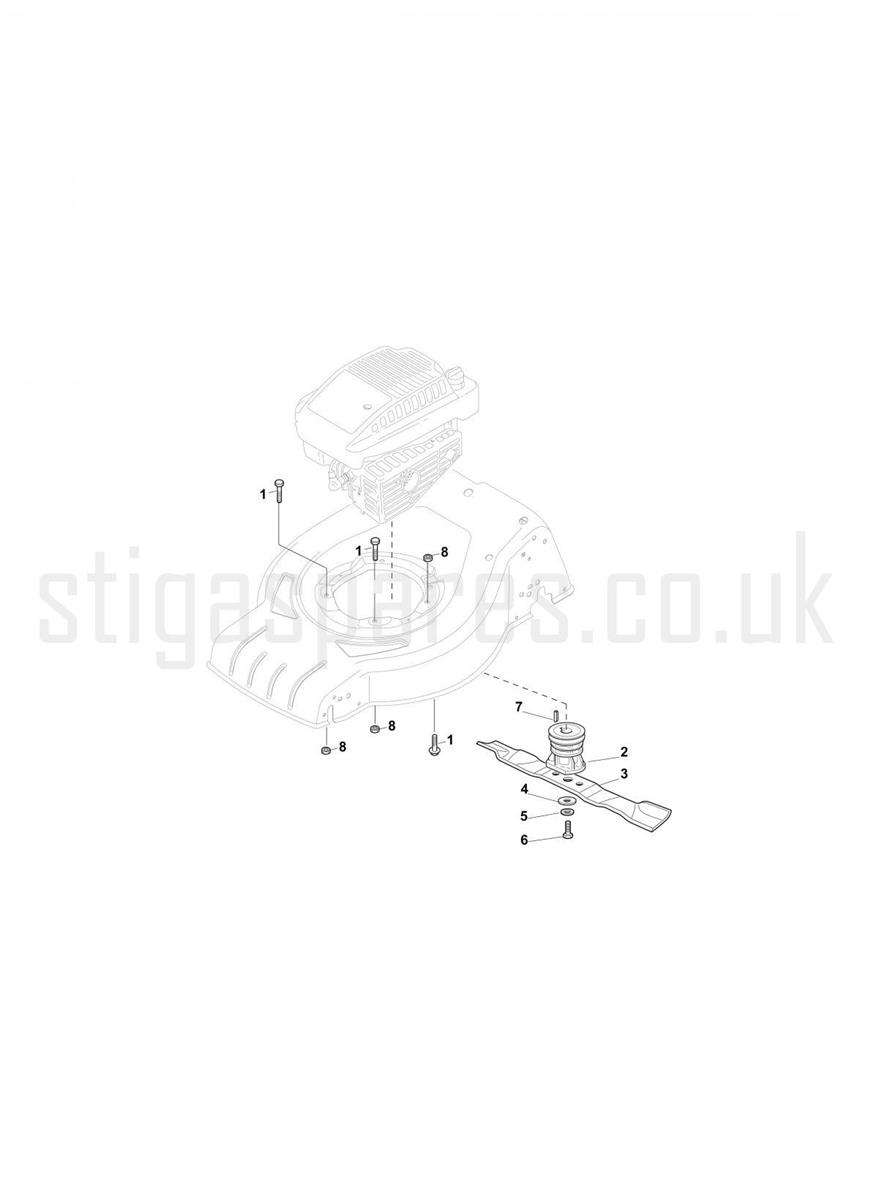

Blade assembly details for Stiga MULTIMOWER 53 S 295536148 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
002122465607/4BLADE BOSS D=22.2mm£10.09 Add to
003181004459/0MULCHING BLADE CR53£18.13 Add to
004122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
005112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
006112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
007112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
008112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
