Deck

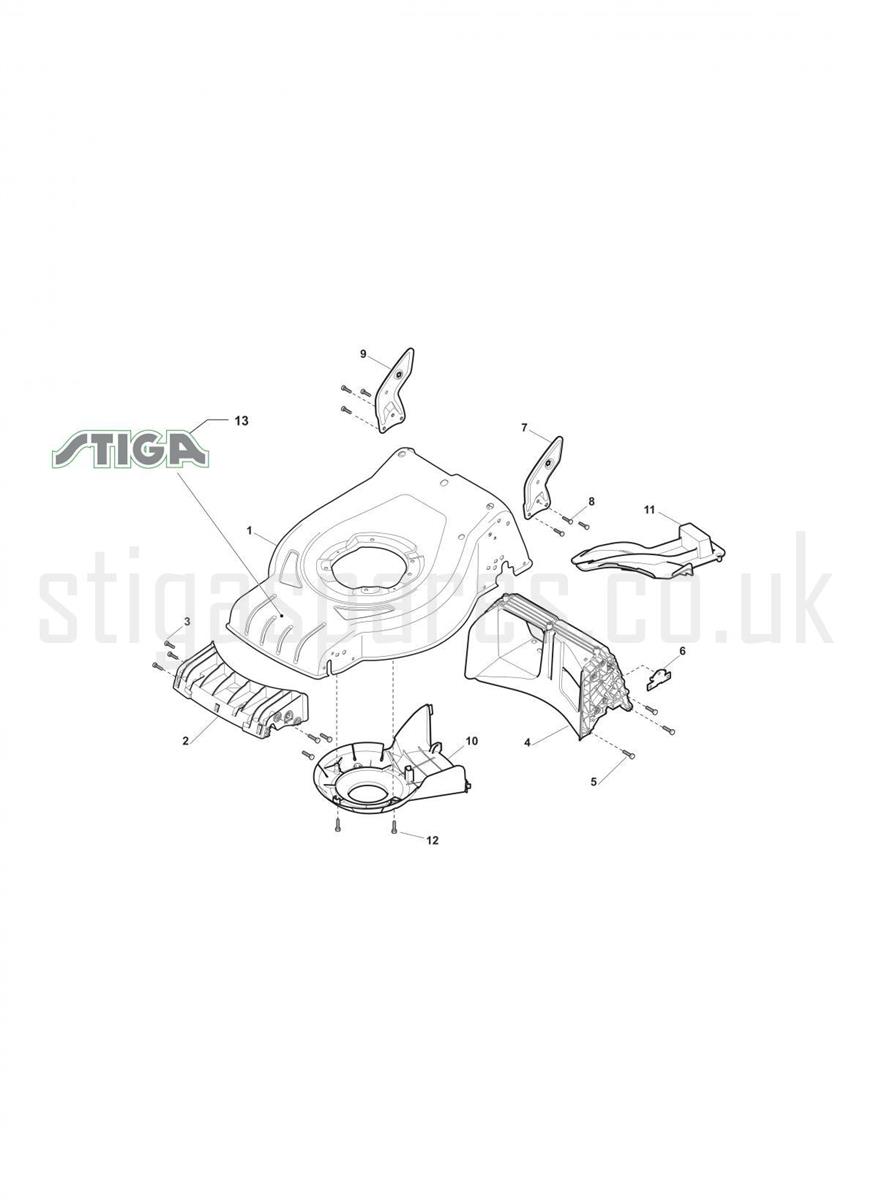

Deck assembly details for Stiga MULTIMOWER 53 S 295536148 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004730/0STEEL DECK CR53 [GREY]£211.40 Add to
002322108308/0PLASTIC FRONT BAFFLE£14.45 Add to
003112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
004322108392/0PLASTIC REAR BAFFLE£20.72 Add to
005112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
006322545213/0FIXING PLATE£2.06 Add to
007381005183/0Left BracketN/A POA
008112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
009381005181/0Right BracketN/A POA
010322060250/0BELT PROTECTION GUARD CR53£10.56 Add to
011322140244/0MULCHING PLUG [CRUISER 53]£17.57 Add to
012112728903/0SCREW£1.69 Add to
013114367494/2EMBLEMA LABEL STIGA 3D 93 x 19mm£9.54 Add to
