Handle, Upper Part

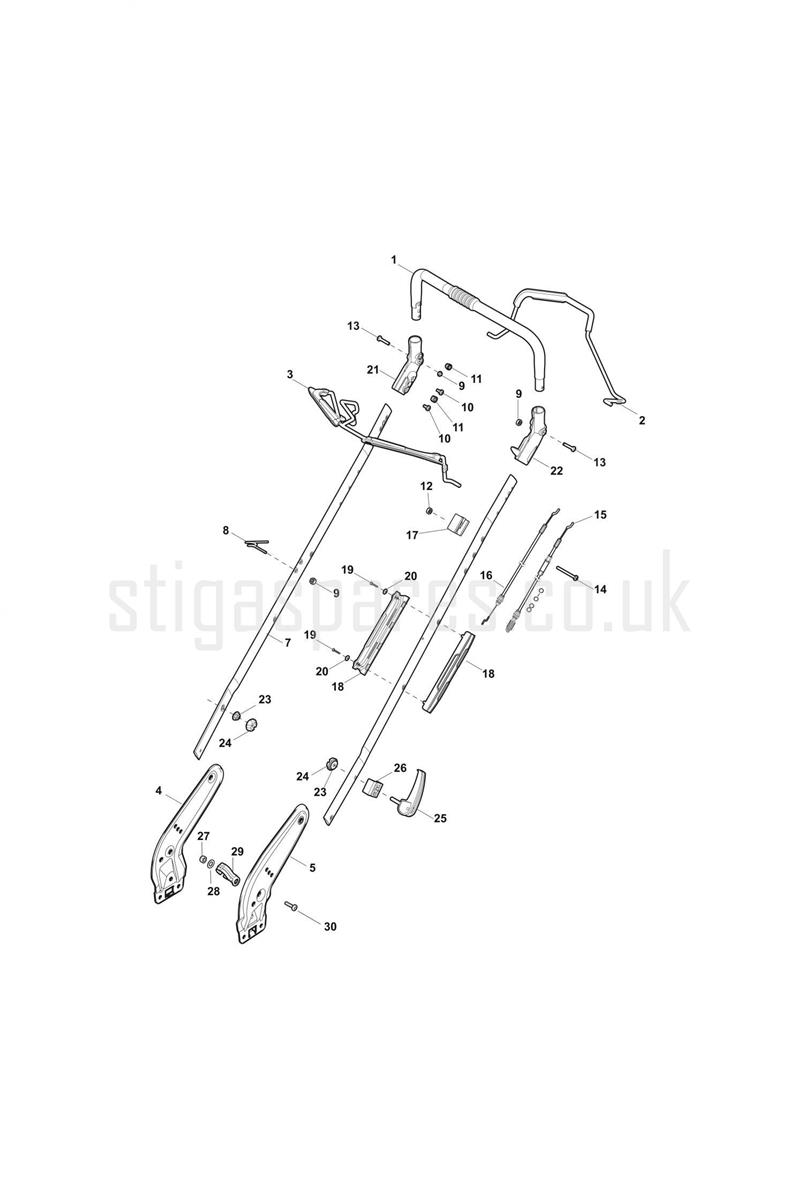

Handle, Upper Part assembly details for Stiga TURBO 48 SE B 299486528 2016 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006670/2	HANDLE TUBE [BLACK]	£28.90	Add to
002	381003349/0	CLUTCH DRIVE LEVER [BLACK]	£45.66	Add to
003	381003472/0	Lever, Engine Brake Black	£39.75	Add to
004	381005185/0	HANDLE BRACKET R/H [GREY]	£15.81	Add to
005	381005187/0	HANDLE BRACKET L/H [GREY]	£14.74	Add to
007	381006774/1	STUMP HANDLE NT ASTRAL GREY - NLA	£50.70	Add to
008	122430309/0	PULL CORD GUIDE	£2.87	Add to
009	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
010	112735662/1	SCREW TCB TORX M6 x 12	£2.87	Add to
011	322041967/1	BUSH	£2.06	Add to
012	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
013	112728721/0	SCREW M6 x 30	£1.91	Add to
014	112727784/0	CROSS-HEAD SCREW M6 x 45	£1.79	Add to
015	381030097/0	CLUTCH DRIVE CABLE	£21.90	Add to
016	181030099/0	ENGINE BRAKE CABLE L=1273	£15.06	Add to
017	322551639/0	CABLE HOLDER BLOCK D=25	£14.93	Add to
018	322806644/0	CABLE PROTECTION BAND	£2.87	Add to
019	112727812/0	SELF-TAPPING SCREW TCB 3.5 x 22	£2.06	Add to
020	112523000/1	WASHER M4 4.3 X 12 X 1	£1.98	Add to
021	322488301/0	RIGHT HANDLE SLEEVE [GREY]	£24.95	Add to
022	322488303/0	LEFT HANDLE SLEEVE [GREY]	£24.95	Add to
023	1137-0155-01	SPACER	£4.52	Add to
024	381004310/0	HANDLE FIXING ASSEMBLY	£2.32	Add to
025	381103359/1	LOCKING HANDLE LEVER L=62 [BLACK]	£5.07	Add to
026	322680017/0	HANDLE BRACKET	£2.06	Add to
027	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
028	125038002/1	BUSH	£2.06	Add to
029	322192156/0	CABLE HOLDER CLAMP	£2.06	Add to
030	112760605/0	SCREW TBEI M8 X 20MM	£2.53	Add to
