Blade (2)

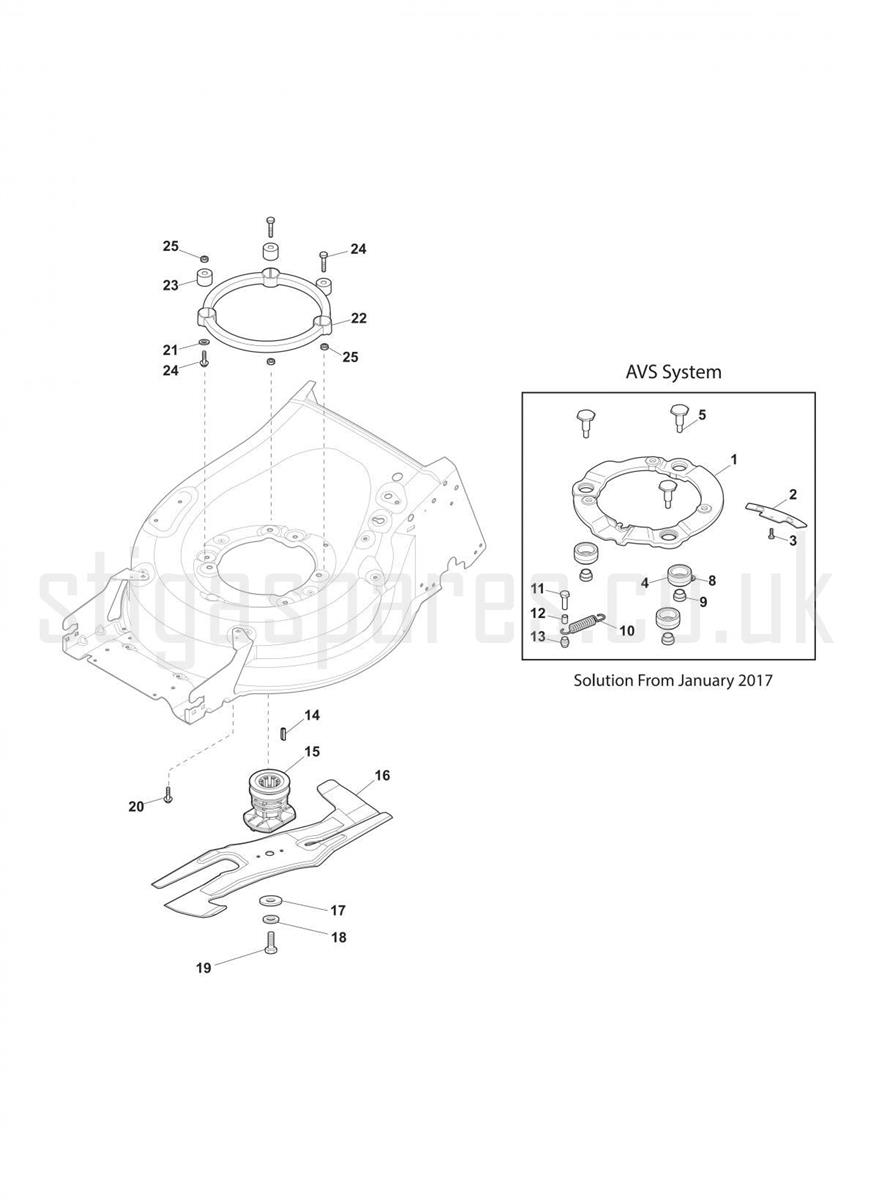

Blade (2) assembly details for Stiga TWINCLIP 55 S B 294562028 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381207230/0ENGINE MOUNTING PLATE AVS MP2 [YELLOW]£34.81 Add to
002322551536/0PLATE£4.10 Add to
003112728210/0SCREW TORX M4 x 10£1.79 Add to
004322250015/1AVS RUBBER DAMPER£7.51 Add to
005122519816/0PIN£10.91 Add to
008112543002/0SPRING WASHER M8 C60£1.58 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010122450439/0TENSION SPRING£3.69 Add to
011112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
012122170846/0SPACER£3.55 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
015122465638/1BLADE BOSS D=22.2mm£15.52 Add to
016181004417/0TWINCLIP BLADE 55£68.42 Add to
017122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
017112508128/0SPRING WASHER 28 x 10 x 2,5£1.79 Add to
018112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
019112736815/0HEX-HEAD SCREW TE 3/8" x 2¾"£4.90 Add to
020112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
021112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
022322170964/0ENGINE SUPPORT RING£4.42 Add to
023122170835/0ENGINE SPACER£6.63 Add to
024112691700/0SCREW M8 x 55£1.91 Add to
025112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
