Blade

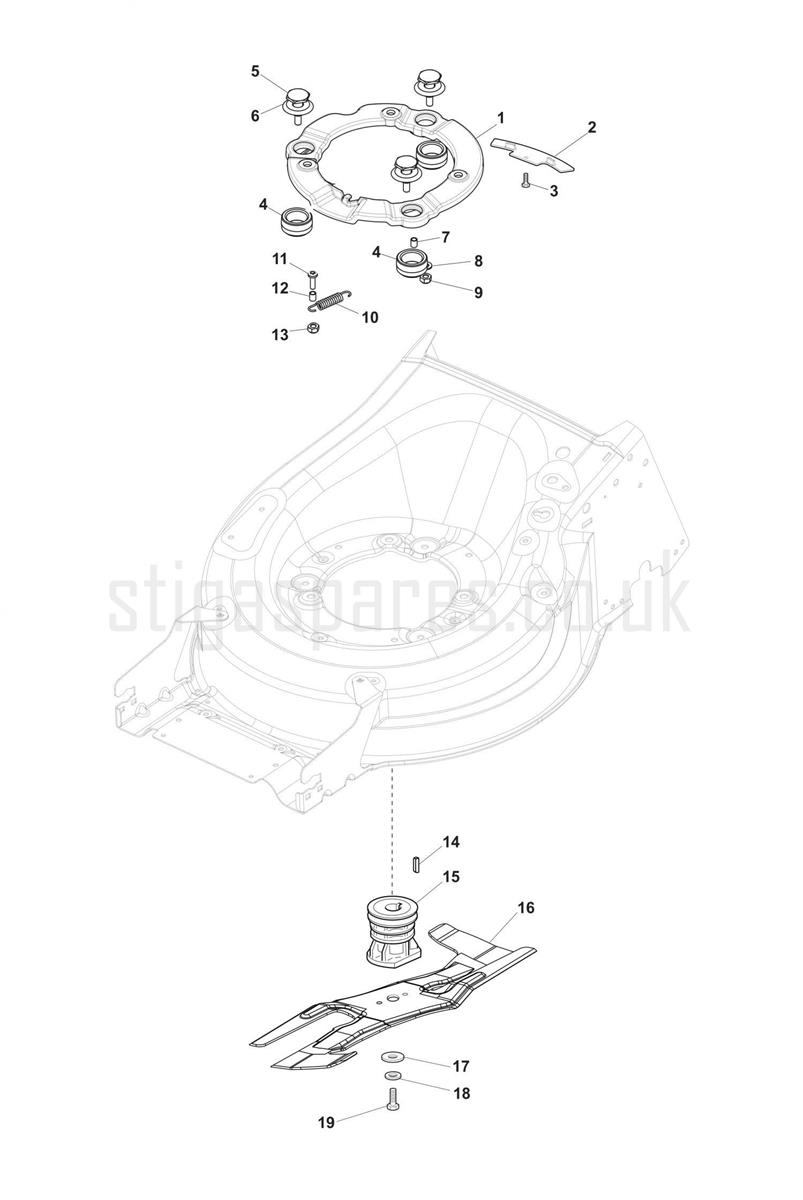

Blade assembly details for Stiga TWINCLIP 55 SEQ B 294562528 2016 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381207230/0ENGINE MOUNTING PLATE AVS MP2 [YELLOW]£34.81 Add to
002322551536/0PLATE£4.10 Add to
003112728210/0SCREW TORX M4 x 10£1.79 Add to
004322250014/0AVS RUBBER DAMPER£5.60 Add to
005122519816/0PIN£10.91 Add to
006322672201/0RUBBER GROMMET£6.27 Add to
007122170850/0SPACER£3.55 Add to
008112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010122450439/0TENSION SPRING£3.69 Add to
011112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
012122170846/0SPACER£3.55 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
015122465638/1BLADE BOSS D=22.2mm£15.52 Add to
016181004417/0TWINCLIP BLADE 55£68.42 Add to
017122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
017112508128/0SPRING WASHER 28 x 10 x 2,5£1.79 Add to
018112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
019112736815/0HEX-HEAD SCREW TE 3/8" x 2¾"£4.90 Add to
