Deck And Height Adjusting

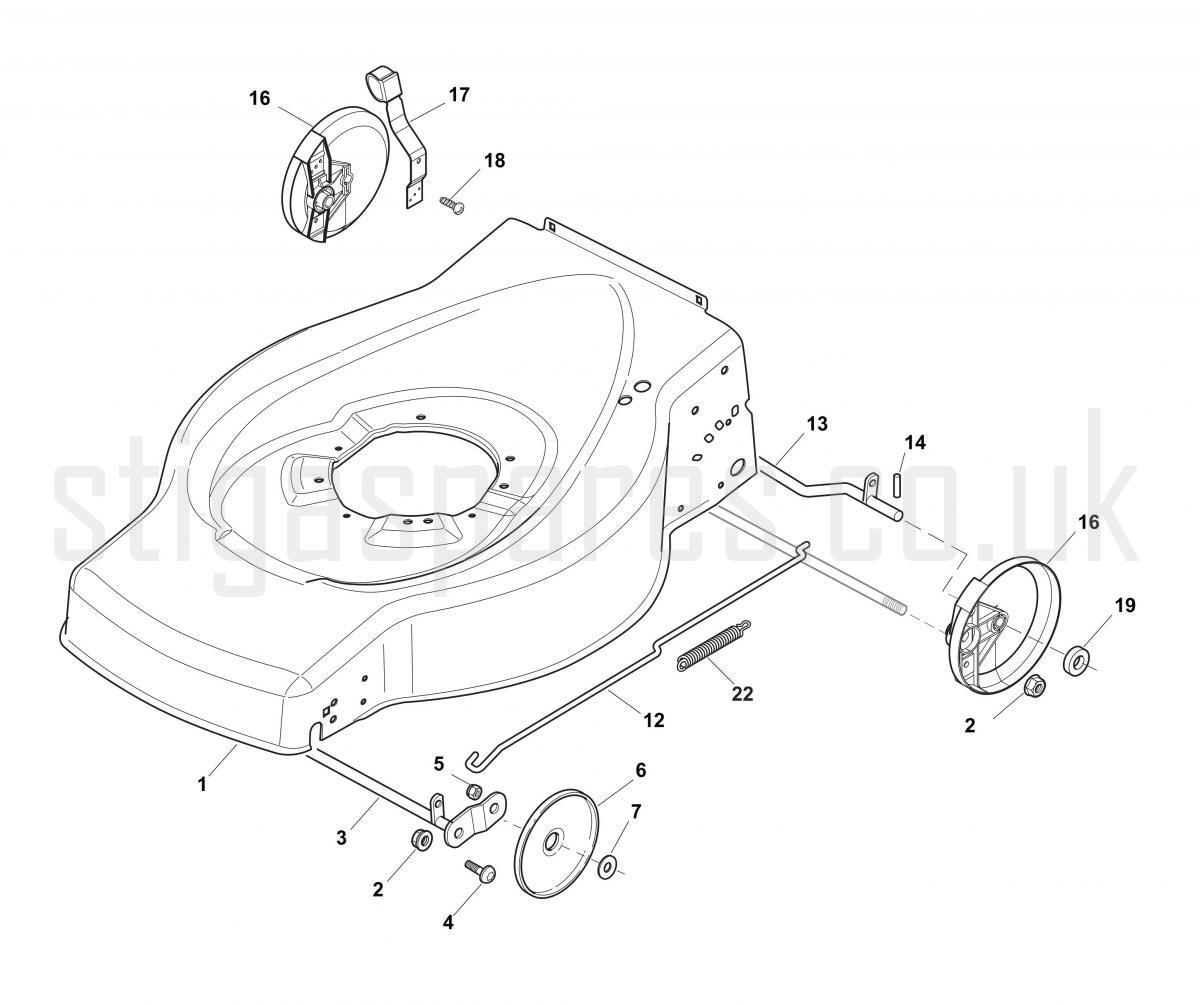

Deck And Height Adjusting assembly details for Stiga COLLECTOR 46 S 299274648 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381004745/0	STEEL DECK [GREY] ES/ESL 464	£109.29	Add to
002	122131750/0	NUT M8	£2.06	Add to
003	381000153/0	FRONT WHEELS AXLE	£54.79	Add to
004	112760600/0	SCREW M8 x 16	£1.19	Add to
005	112293201/0	HEXAGON NUT M8 WITH EXAGONAL FLANGE	£2.06	Add to
006	322600095/0	INNER WHEEL COVER D=165	£2.06	Add to
007	325670011/0	ANTI-FRICTION WASHER 8.2 x 19 x 0.8	£2.06	Add to
012	122033317/0	HEIGHT ADJUST TIE ROD	£15.95	Add to
013	381000159/0	REAR WHEELS AXLE	£24.95	Add to
014	122753001/0	PIN D=4 x 32	£2.06	Add to
016	322600106/1	INNER WHEEL COVER D=190	£7.10	Add to
017	381003303/0	REAR HEIGHT ADJUST LEVER	£17.86	Add to
018	112728689/0	SCREW KA50 x 12	£1.79	Add to
019	122122202/0	BEARING D12	£2.47	Add to
