Blade

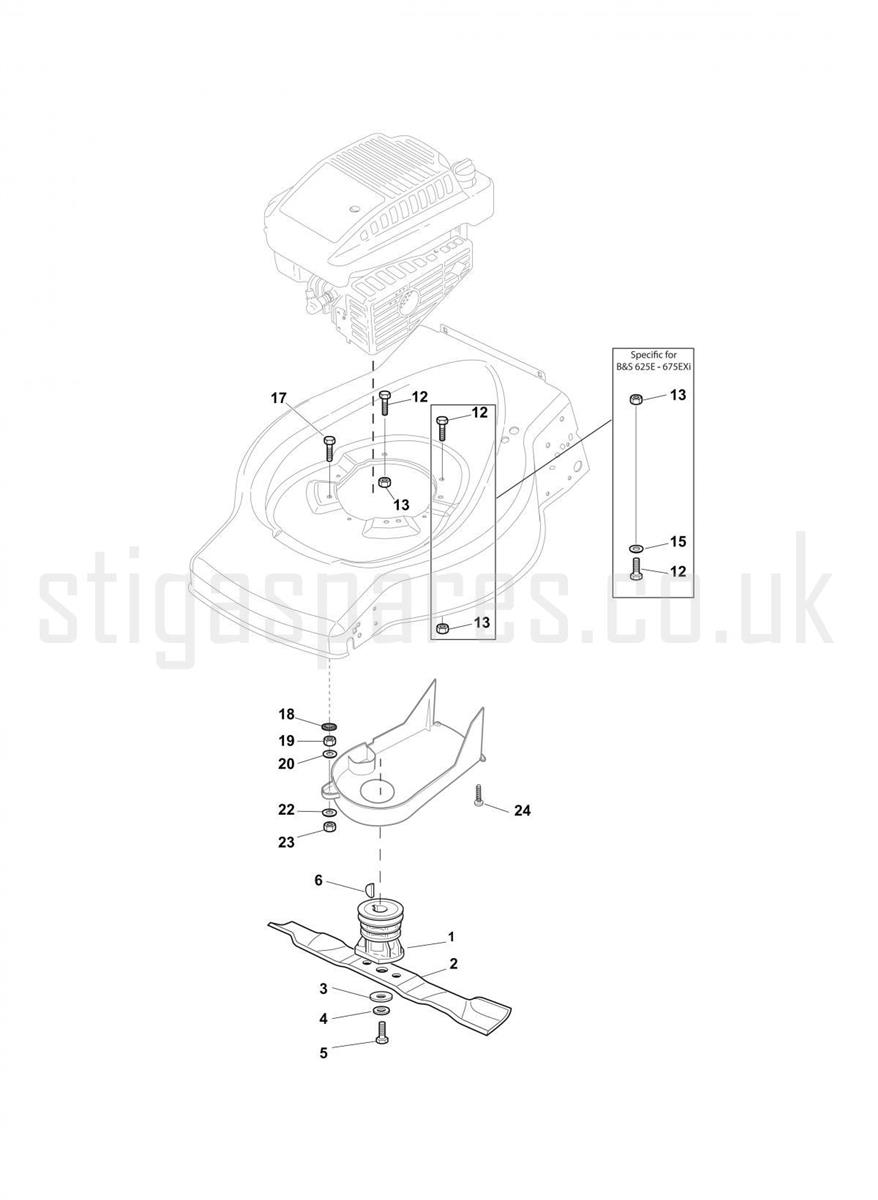

Blade assembly details for Stiga COLLECTOR 46 S H 299274638 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465608/3BLADE BOSS D=25mm£11.34 Add to
002181004365/3BLADE 44cm£15.25 Add to
003122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
004112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
005112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
006112139150/0WOODRUFF KEY D=25mm£2.14 Add to
012119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
017322943100/0ScrewN/A POA
017112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
018112543002/0SPRING WASHER M8 C60£1.58 Add to
019112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
020122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
022325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
023112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
024112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
