Height Adjusting

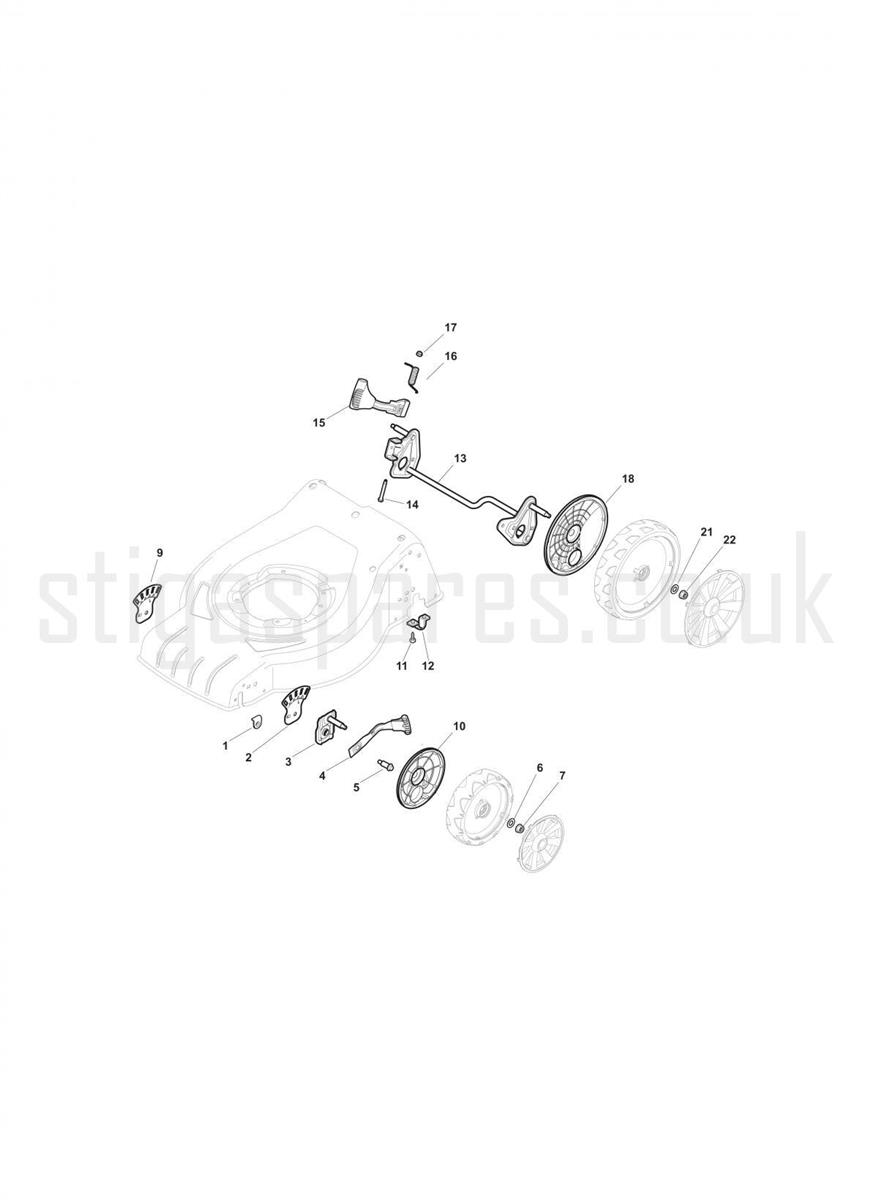

Height Adjusting assembly details for Stiga COLLECTOR 48 S B 295486128 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322545189/0HANDLE FIXING PLATE£2.06 Add to
002322735597/1HEIGHT ADJUST QUADRANT L/H£2.54 Add to
003381005159/0WHEEL STUB AXLE CR D=180£11.59 Add to
004381003354/0HEIGHT ADJUST LEVER£6.79 Add to
005122519811/0WHEEL BOLT£2.06 Add to
006112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
007112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009322735595/1HEIGHT ADJUST QUADRANT R/H£3.00 Add to
010322600247/0INNER WHEEL COVER D=180£4.66 Add to
011112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
012322545152/0AXLE BRACKET£2.06 Add to
013381302817/0ASS.REAR WHEELS AXLE D240 CRUISER TR£32.99 Add to
014122534131/0PIN£2.06 Add to
015381003357/0REAR HEIGHT ADJUST LEVER£6.79 Add to
016122446192/0SPRING£2.47 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018322600205/1INNER WHEEL COVER D=240£4.11 Add to
021112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
