Deck

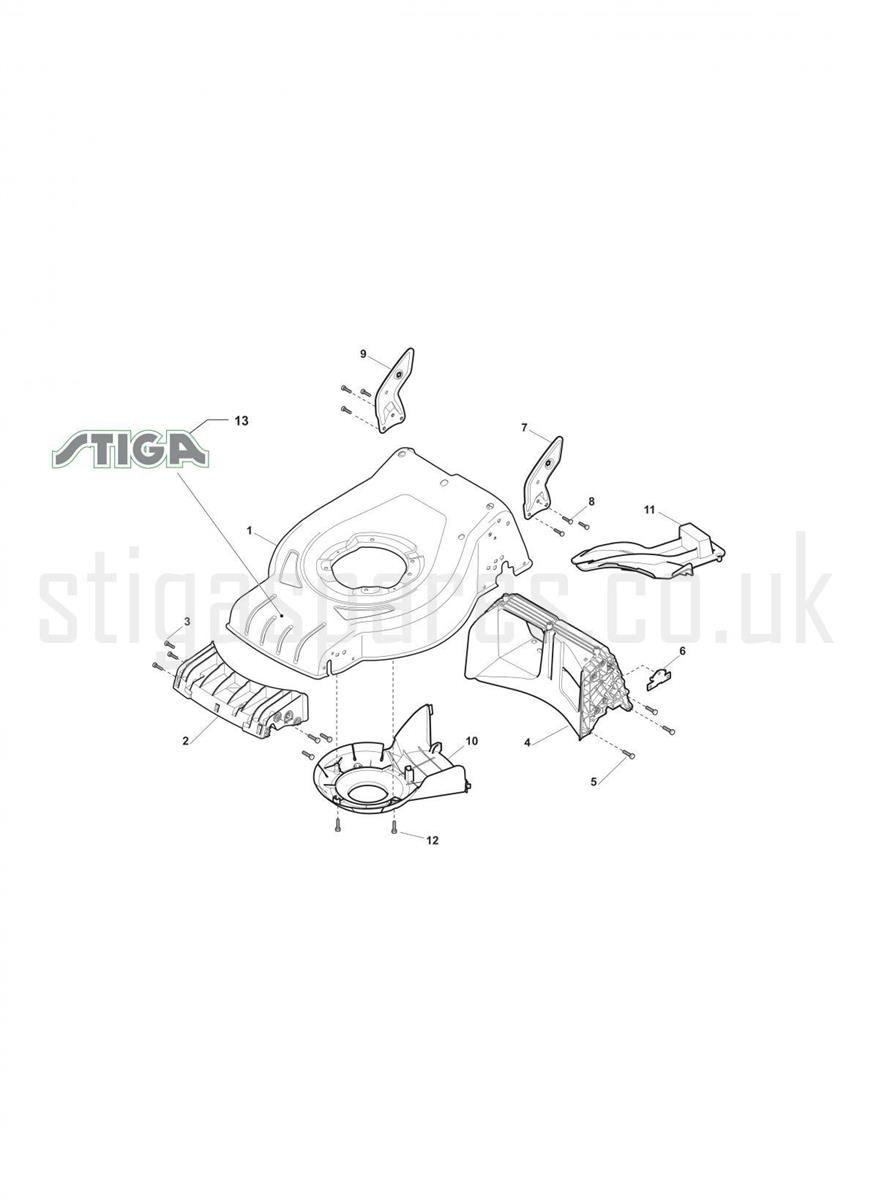

Deck assembly details for Stiga COMBI 48 B 295485028 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004729/0STEEL DECK CR48 [GREY]£122.16 Add to
002322108301/1PLASTIC FRONT BAFFLE£16.79 Add to
003112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
004322108392/0PLASTIC REAR BAFFLE£20.72 Add to
005112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
006322545213/0FIXING PLATE£2.06 Add to
007381005139/0LEFT HANDLE BRACKET£7.10 Add to
008112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
009381005137/0RIGHT HANDLE BRACKET£6.69 Add to
010322060242/2BELT PROTECTION GUARD CR48£11.59 Add to
011322140239/1MULCHING PLUG [CRUISER 48]£11.87 Add to
012112728903/0SCREW£1.69 Add to
013114367494/2EMBLEMA LABEL STIGA 3D 93 x 19mm£9.54 Add to
