Engine-Carburettor, Tank

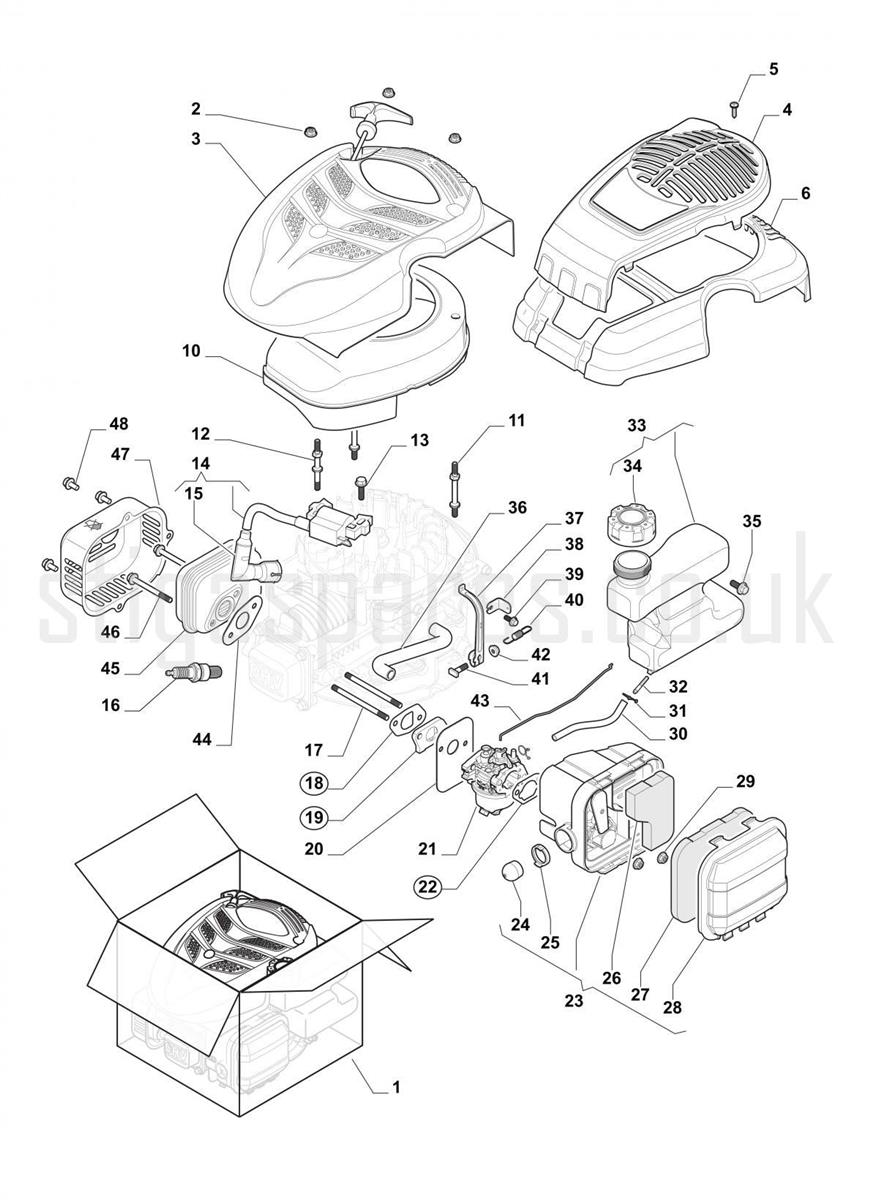

Engine-Carburettor, Tank assembly details for Stiga COMBI 48 S 295486048 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118550941/0ENGINE ASSEMBLY 140cc WBE140£331.01 Add to
002112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
003118550909/0RECOIL ASSEMBLY [WBE140]£73.87 Add to
004322055539/0ENGINE RING COVER WBE140 [YELLOW]£6.42 Add to
005112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
006322055538/0ENGINE TOP COVER WBE140 [GREY]£17.59 Add to
010118550908/0FAN COVER£39.80 Add to
011118550302/0STUD BOLT (OBSOLETE)N/A
012118550906/0STUD BOLT£5.52 Add to
013112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
014118550901/0IGNITION COIL£49.34 Add to
015118550942/0SPARK PLUG CAP£9.49 Add to
0169400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
017118550930/0STUD BOLT£5.92 Add to
018118550929/0GASKET£2.06 Add to
019118550928/0CARBURETTOR INSULATOR£3.41 Add to
020118550927/0GASKET£5.19 Add to
021118550926/0CARBURETTOR£68.42 Add to
022118550924/0CARBURETTOR GASKET£2.06 Add to
023118550921/0AIR FILTER ASSEMBLY£32.99 Add to
024118550923/0PRIMER PUMP£6.42 Add to
025118550922/0PRIMER PUMP STOP£2.87 Add to
026118550946/0INNER AIR FILTER£6.00 Add to
027118550945/0OUTER AIR FILTER£3.55 Add to
028118550944/0AIR FILTER COVER£9.41 Add to
029112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
030118550919/0FUEL PIPE£7.10 Add to
031118550918/0PIPE CLIP£2.06 Add to
032118550314/0FUEL FILTER£4.78 Add to
033118550917/1FUEL TANK ASSEMBLY£28.90 Add to
034118550339/1FUEL TANK CAP£15.81 Add to
035112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
036118550920/0BREATHER FUEL PIPE£4.52 Add to
037118550933/0GOVERNOR ARM£6.55 Add to
038118550931/0PLATE (OBSOLETE)N/A
039112789000/0SCREW TE M5 x 12£2.06 Add to
040118550932/0GOVERNOR SPRING£1.55 Add to
041118550805/0BOLT£4.01 Add to
042118550806/0NUT£2.14 Add to
043118550925/0GOVERNOR ROD£2.06 Add to
044118550898/0MUFFLER GASKET£2.87 Add to
045118550899/0MUFFLER£34.35 Add to
046112792425/0HEX-HEAD SCREW M6 X 55£2.06 Add to
047118550900/0MUFFLER GUARD£21.40 Add to
048118551277/0SCREW M6 X 14 (OBSOLETE)N/A
