Deck And Height Adjusting

Deck And Height Adjusting assembly details for Stiga COMBI 50 SQ 294502848 2017 model

Parts list

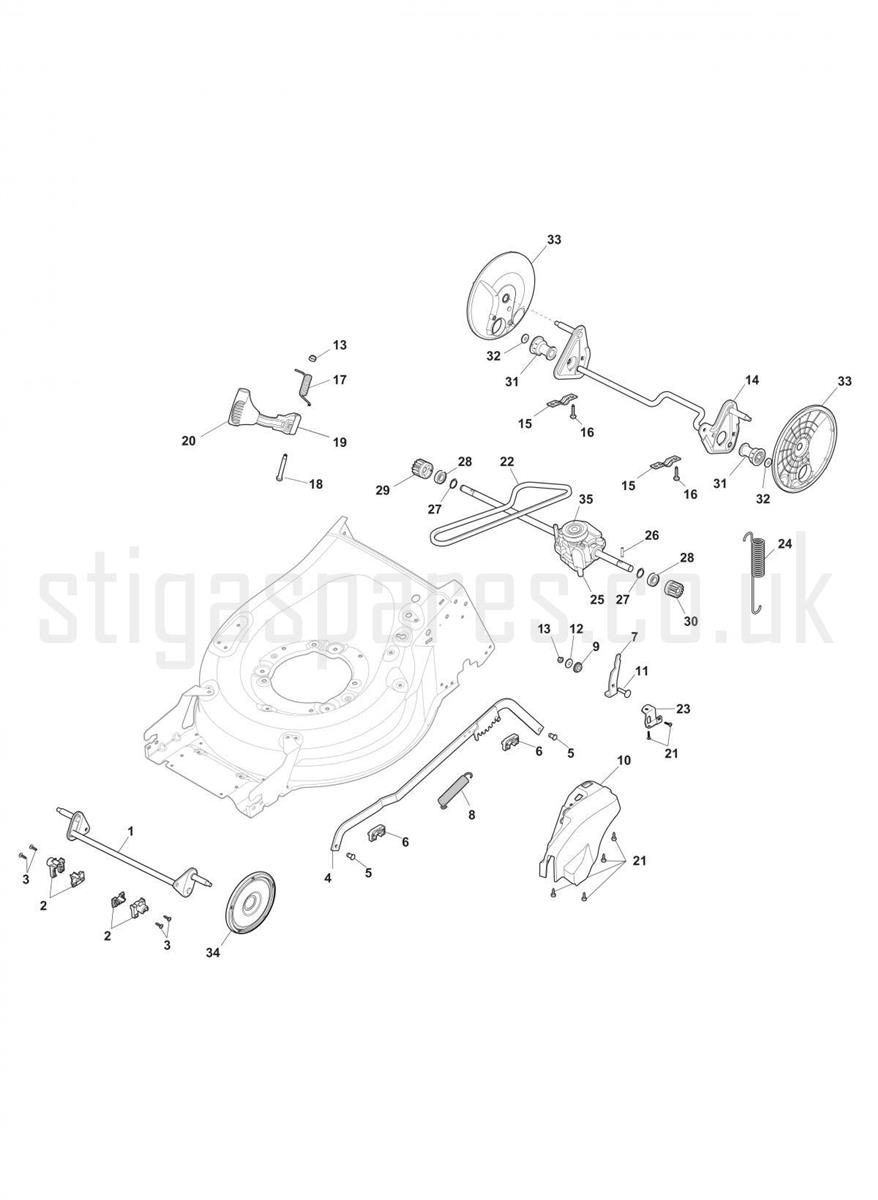

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302913/0FRONT WHEELS AXLE ASS.Y ZNB D180 MP1 50£32.99 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004322869695/0HEIGHT ADJUST TIE BAR£22.37 Add to
005122519820/0PIN£2.47 Add to
006112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
007322778475/0HEIGHT ADJUST BRACKET£3.15 Add to
008122450480/0SPRING£2.32 Add to
009122517873/0BUSH£3.41 Add to
010322055329/0HEIGHT ADJUST COVER [BLACK]£11.18 Add to
011112815270/0SCREW M6 x 25£2.06 Add to
012112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014381302895/0REAR WHEELS AXLE ASS.Y D240 TR MP1 50£32.99 Add to
015322545152/0AXLE BRACKET£2.06 Add to
016112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
017122446192/0SPRING£2.47 Add to
018122534131/0PIN£2.06 Add to
019322322855/0REAR HEIGHT ADJUST LEVER D=240 CR£5.87 Add to
020322394527/0HEIGHT ADJUST KNOB£5.52 Add to
021112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
022135063900/0TRAPEZOIDAL BELT Z28£9.96 Add to
023322778473/0STOP BRACKET£2.87 Add to
024122450478/0SPRING£9.28 Add to
025181003115/0GEARBOX [BLACK]£129.74 Add to
026122753000/0PIN D=5.2 x 25.65£2.06 Add to
027112608600/0CIRCLIP D=12£2.08 Add to
028119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
029122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
030122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
031322042066/0AXLE BUSH£1.91 Add to
032112521371/0WASHER M12 13 x 20 x 2£2.06 Add to
033322600205/1INNER WHEEL COVER D=240£4.11 Add to
034322600247/0INNER WHEEL COVER D=180£4.66 Add to
035122601909/0PULLEY£6.01 Add to
