Engine-Piston, Crankshaft

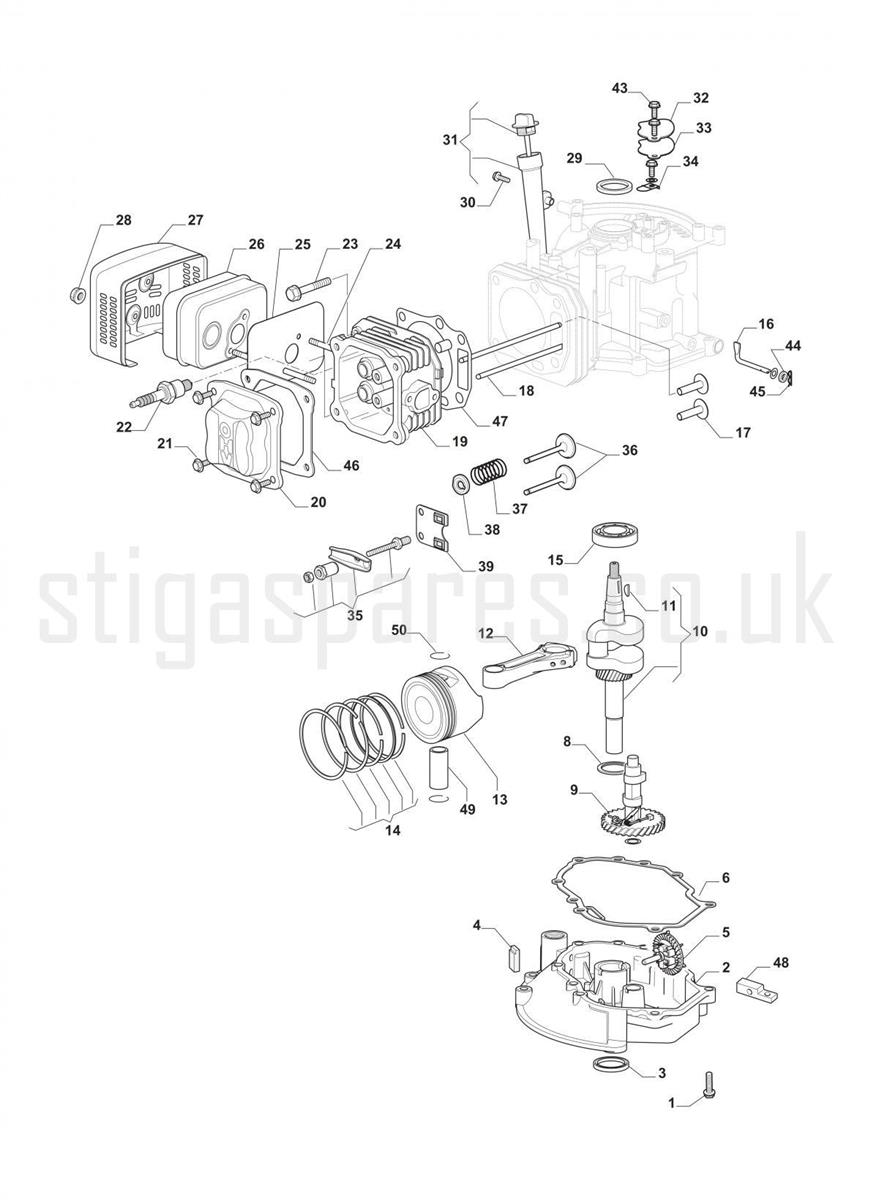

Engine-Piston, Crankshaft assembly details for Stiga COMBI 55 SQ 294556848 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112674550/0SCREW TE M6 x 30£2.06 Add to
002118551208/0CRANKCASE COVER£89.43 Add to
003118550379/0OIL SEAL£7.10 Add to
004118550775/0RUBBER GROMMET£2.78 Add to
005118550312/1SPEED GOVERNOR£12.55 Add to
006118550380/1CRANKCASE GASKET£16.36 Add to
008118550283/0WASHER£3.69 Add to
009118550271/0CAMSHAFT£38.44 Add to
010118550385/0CRANKSHAFT£109.47 Add to
011118550288/0WOODRUFF KEY£6.55 Add to
012118550284/0CONNECTING ROD£41.16 Add to
013118551213/0PISTON£21.67 Add to
014118550286/0PISTON RING SET£27.27 Add to
015118550280/0BALL BEARING£23.72 Add to
016118550936/0GOVERNOR ARM SHAFT£6.95 Add to
017118550291/0VALVE LIFTER£10.09 Add to
018118551251/0PUSH ROD£4.69 Add to
019118551212/0CYLINDER HEAD£75.89 Add to
020118550296/2CYLINDER HEAD COVER£18.97 Add to
021118551277/0SCREW M6 X 14 (OBSOLETE)N/A
0229400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
023118550297/0SCREW£6.69 Add to
024118550298/0STUD BOLT£7.04 Add to
025118550270/0MUFFLER GASKET£12.55 Add to
026118550269/0MUFFLER£35.71 Add to
027118550268/1MUFFLER GUARD£34.35 Add to
028118550806/0NUT£2.14 Add to
029118550300/0OIL SEAL£7.63 Add to
030112674550/0SCREW TE M6 x 30£2.06 Add to
031118550311/1OIL DIPSTICK ASSEMBLY£13.08 Add to
032118551210/0BREATHER CAP£6.22 Add to
033118551211/0BREATHER CHAMBER GASKET£5.11 Add to
034118550303/0PLATE£19.87 Add to
035118550273/0VALVE ARM SET£14.18 Add to
036118550910/0INTAKE/EXHAUST VALVE KIT£20.72 Add to
037118551300/0VALVE SPRING£4.87 Add to
038118550895/0RETAINER VALVE SPRING (OBSOLETE) (OBSOLETE)N/A
039118551253/0PLATE£5.29 Add to
043112790500/0HEX-HEAD SCREW M6 x 10£2.06 Add to
044118550935/0OIL SEAL (OBSOLETE) (OBSOLETE)N/A
045118550856/0LOCK PIN (OBSOLETE) (OBSOLETE)N/A
046118551237/0CYLINDER HEAD GASKET£4.91 Add to
047118551233/0CYLINDER GASKET£10.91 Add to
048118551269/0HOLDER PLATE£7.36 Add to
049118550915/0PISTON PIN£5.73 Add to
050118550914/0PISTON PIN CLIP£2.06 Add to
