Protection, Belt

Protection, Belt assembly details for Stiga COMBI 55 SQ 294556848 2017 model

Parts list

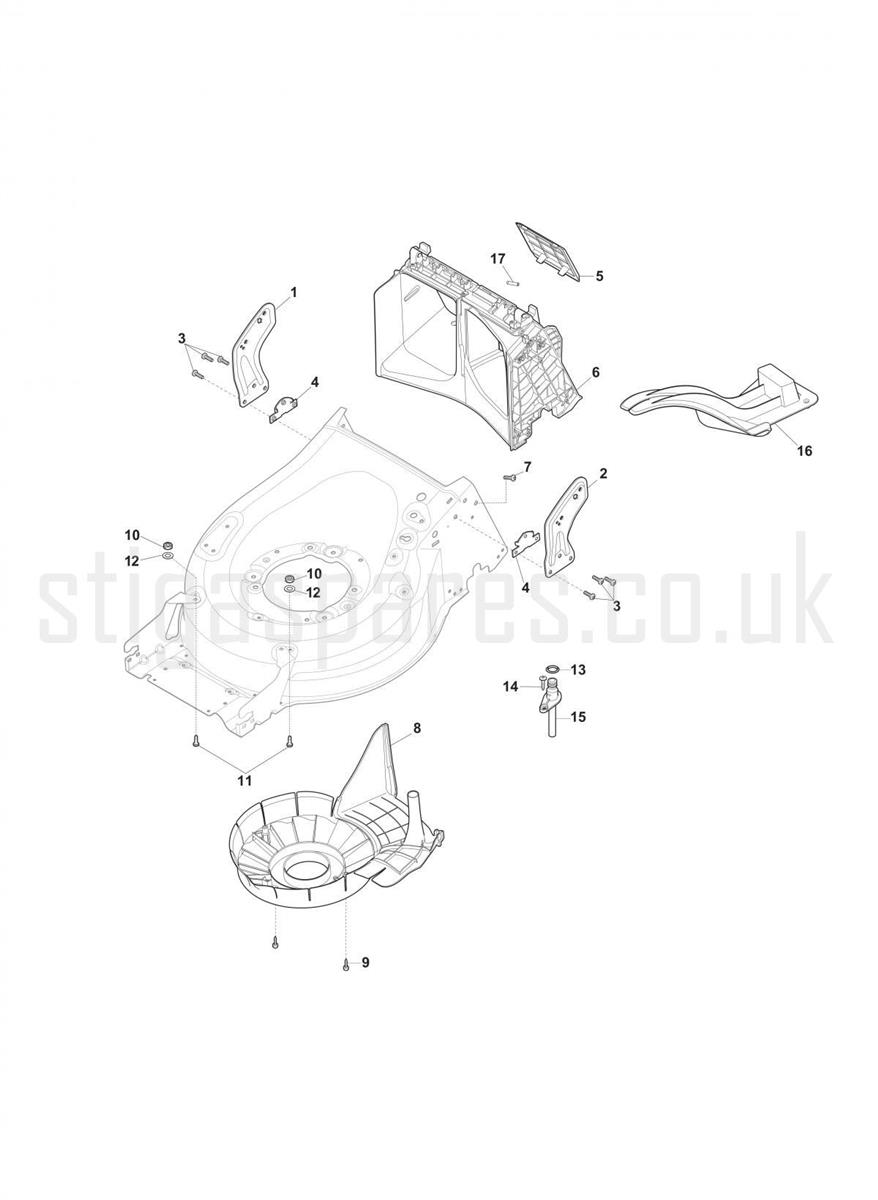

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381005235/0R/H HANDLE SUPPORT MP1 [GREY]£7.28 Add to
002381005237/0L/H HANDLE SUPPORT MP1 [GREY]£7.63 Add to
003112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
004322545213/0FIXING PLATE£2.06 Add to
005322600310/0REAR DOOR£5.46 Add to
006322108316/0PLASTIC REAR BAFFLE£27.27 Add to
007112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
008322060271/2BELT PROTECTION GUARD [MP1 55]£24.81 Add to
009112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
010112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
011112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
012112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
013119035000/0O RING 10.77 x 2.62£5.46 Add to
014112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
015322034002/0WASHING CONNECTION£2.06 Add to
016322140246/0MULCHING PLUG [MP1 55]£13.77 Add to
017112645708/0PIN D=6 x 20£1.90 Add to
