Deck And Height Adjusting

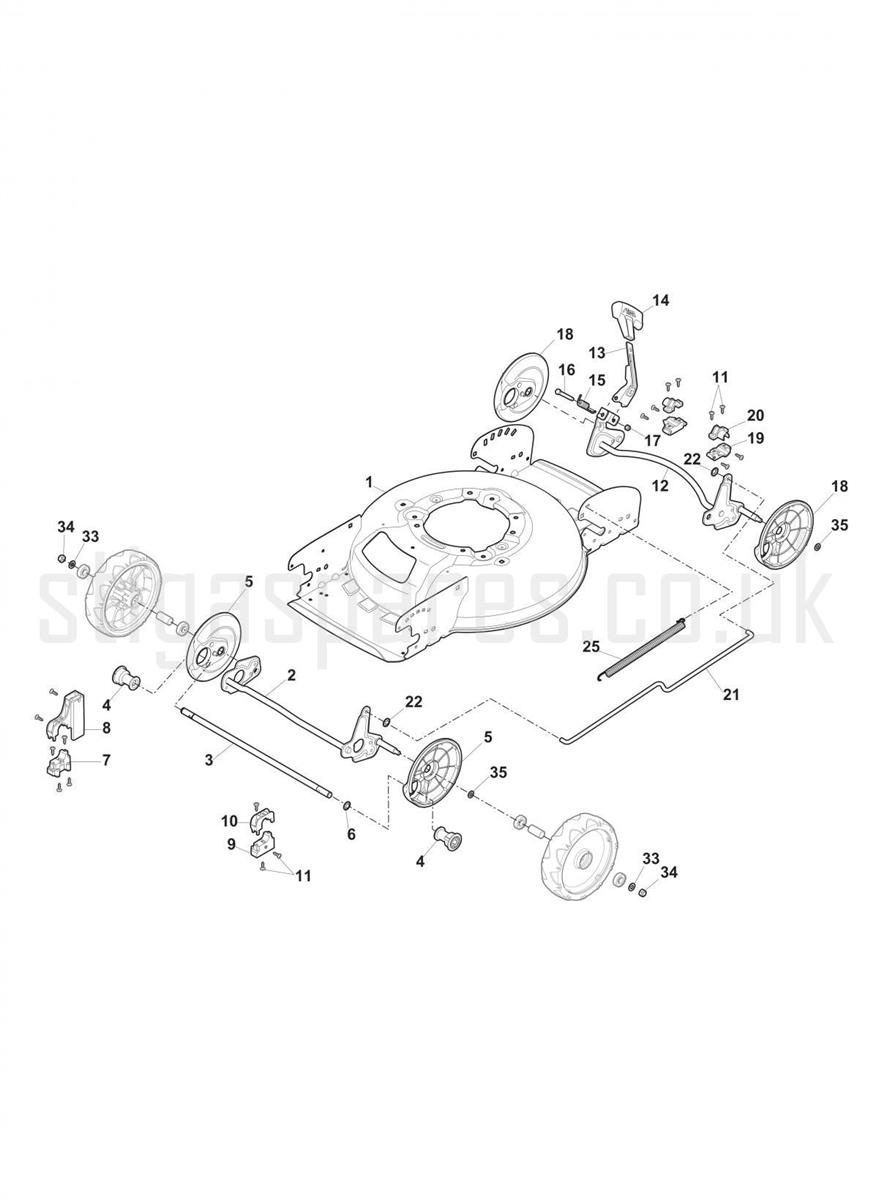

Deck And Height Adjusting assembly details for Stiga MULTICLIP 47 Q B 298471828 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004782/1STEEL DECK MCS 47 S.D. [GREY] STIGA£170.61 Add to
002381302877/0FRONT WHEELS AXLE£23.58 Add to
003322033397/0FRONT WHEELS AXLE£10.23 Add to
004322042066/0AXLE BUSH£1.91 Add to
005322600204/0INNER WHEEL COVER D=180£3.69 Add to
006122020050/0CIRCLIP D=12£2.06 Add to
007322785476/0LOWER RH SUPPORT SHAFT BUSH£3.69 Add to
008322785477/0UPPER RH SUPPORT SHAFT BUSH£5.06 Add to
009322785478/0LOWER LH SUPPORT£3.49 Add to
010322785479/0UPPER LH SUPPORT SHAFT BUSH£3.49 Add to
011112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
012381302879/0REAR WHEELS AXLE£25.28 Add to
013322322857/0REAR HEIGHT ADJ.LEVER ZNW D180/200 CR/NT£6.27 Add to
014322394527/0HEIGHT ADJUST KNOB£5.52 Add to
015122446192/0SPRING£2.47 Add to
016122534131/0PIN£2.06 Add to
017112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
018322600204/0INNER WHEEL COVER D=180£3.69 Add to
019322785474/0LOWER AXLE SUPPORT£2.06 Add to
020322785475/0UPPER AXLE SUPPORT£2.06 Add to
021122033332/0HEIGHT ADJUST ROD£9.54 Add to
022112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
023122446184/0SPRING£5.21 Add to
033112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
034112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
035122671661/0WASHER ZINCED 12.4 x 20 x 1£1.79 Add to
