Ejection-Guard

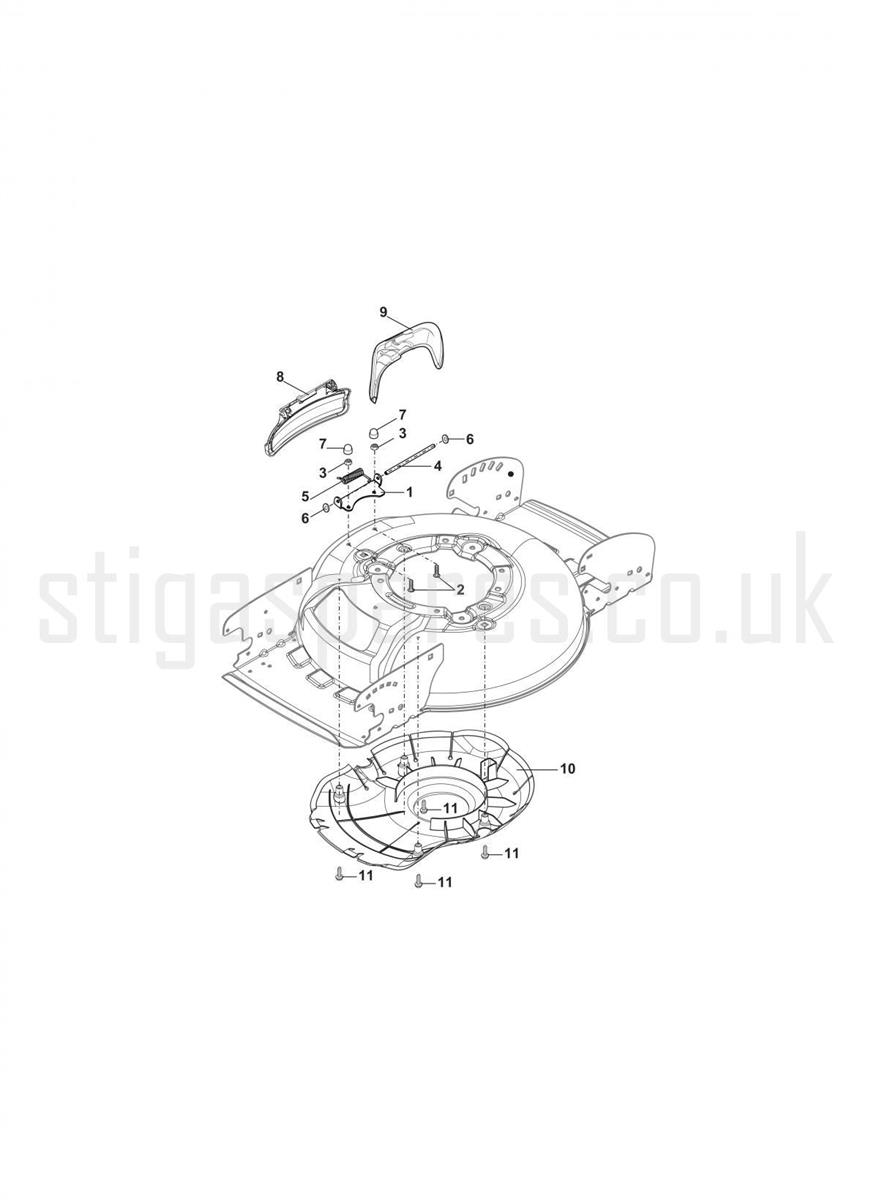

Ejection-Guard assembly details for Stiga MULTICLIP 47 Q H 298471838 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322806639/0FULCRUM BRACKET£3.00 Add to
002112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004122517869/1DEFLECTOR ROD£4.23 Add to
005122450456/1DEFLECTOR SPRING£3.69 Add to
006112604896/0STARLOCK WASHER D=6£2.06 Add to
007118203853/0BLACK NUT CAP M6£3.00 Add to
008322600307/0DEFLECTOR GUARD MCS 47 [BLACK]£8.60 Add to
009322108314/0SIDE DISCHARGE FLAP [BLACK]£11.36 Add to
010322060269/0BELT PROTECTION COVER£7.51 Add to
011112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
