Deck-Handle, Lower Part

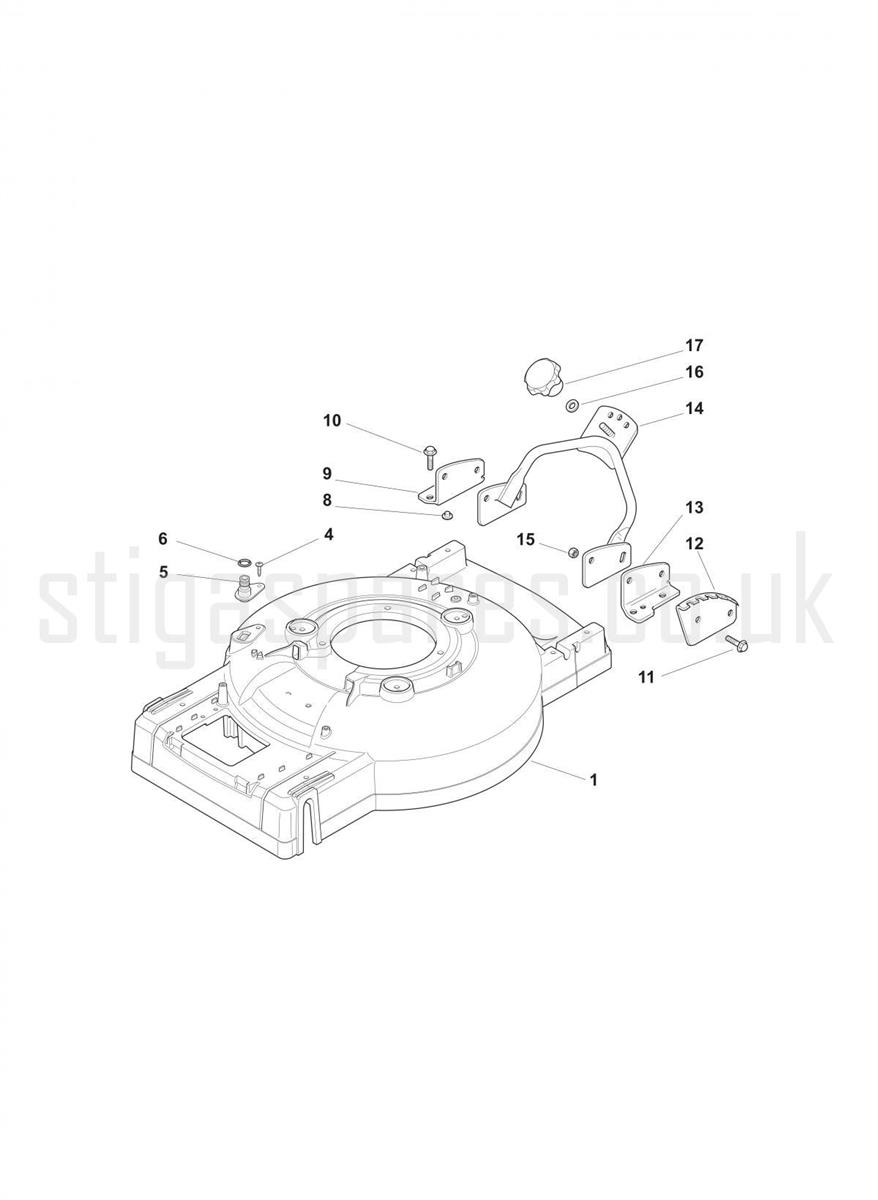

Deck-Handle, Lower Part assembly details for Stiga MULTICLIP PRO 53 S B 293532028 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004736/0ALUMINIUM DECK MC53 [GREY]£417.57 Add to
004112727802/0SCREW TCB TORX M6 x 16£2.06 Add to
005122034000/0WASHING CONNECTION£2.06 Add to
006119035000/0O RING 10.77 x 2.62£5.46 Add to
008322820054/0PLASTIC CAP [WHITE]£3.69 Add to
009322778417/0RIGHT HANDLE BRACKET£10.09 Add to
010112735595/0SCREW£4.01 Add to
011112800815/0SCREW TE FL M8 x 16£2.06 Add to
012322735569/0HEIGHT ADJUST QUADRANT£16.36 Add to
013322778415/0LEFT HANDLE BRACKET£17.86 Add to
014381006369/2MIDDLE HANDLE MC PRO [GREY]£107.93 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
016112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
017322399813/0HANDLE KNOB [BLACK]£20.89 Add to
