Transmission

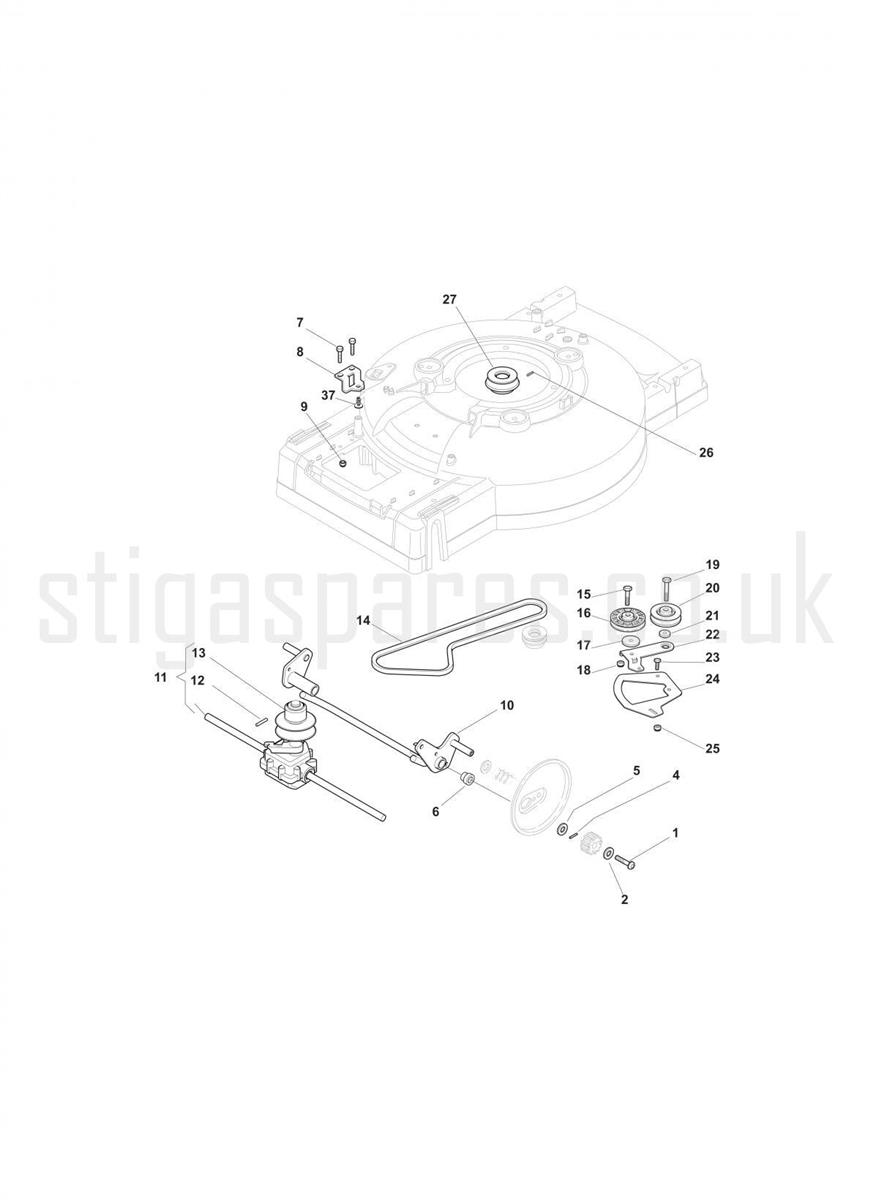

Transmission assembly details for Stiga MULTICLIP PRO 53 SV 293533038 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
002112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
004122753002/0CYLINDRICAL PIN 5 x 25£2.06 Add to
005122671661/0WASHER ZINCED 12.4 x 20 x 1£1.79 Add to
006122038406/0BUSH£2.87 Add to
007112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
008322551661/0FIXING PLATE£13.23 Add to
009112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
010381002833/2FRONT WHEELS AXLE£71.14 Add to
011181003101/2GEARBOX 4 SPEED£195.66 Add to
012112645700/0PIN£2.06 Add to
013122601932/0VARIATOR PULLEY£58.87 Add to
014135064383/0TRAPEZOIDAL BELT XPZ LP=837£15.04 Add to
015112674701/0SCREW TE M6 x 35£2.06 Add to
016122601914/0BELT GUIDE PULLEY£21.95 Add to
017322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
018112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
019112689500/0SCREW M6 x 40£2.06 Add to
020122601915/0TENSION PULLEY£21.82 Add to
021122671656/0WASHER£6.42 Add to
022322320007/0VARIATOR TENSION ARM£20.04 Add to
023112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
024322806629/0VARIATOR LEVER SUPPORT ZNW MCS 50 4S£25.28 Add to
025112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
026112714312/0DOWEL PIN M6 x 12£2.06 Add to
027122601917/0DRIVE ENGINE PULLEY D=22mm£24.50 Add to
027122601920/0DRIVE ENGINE PULLEY D=25£47.97 Add to
037112728704/1SELF-TAP SCREW K70 x 16£2.06 Add to
