Engine-Piston, Crankshaft

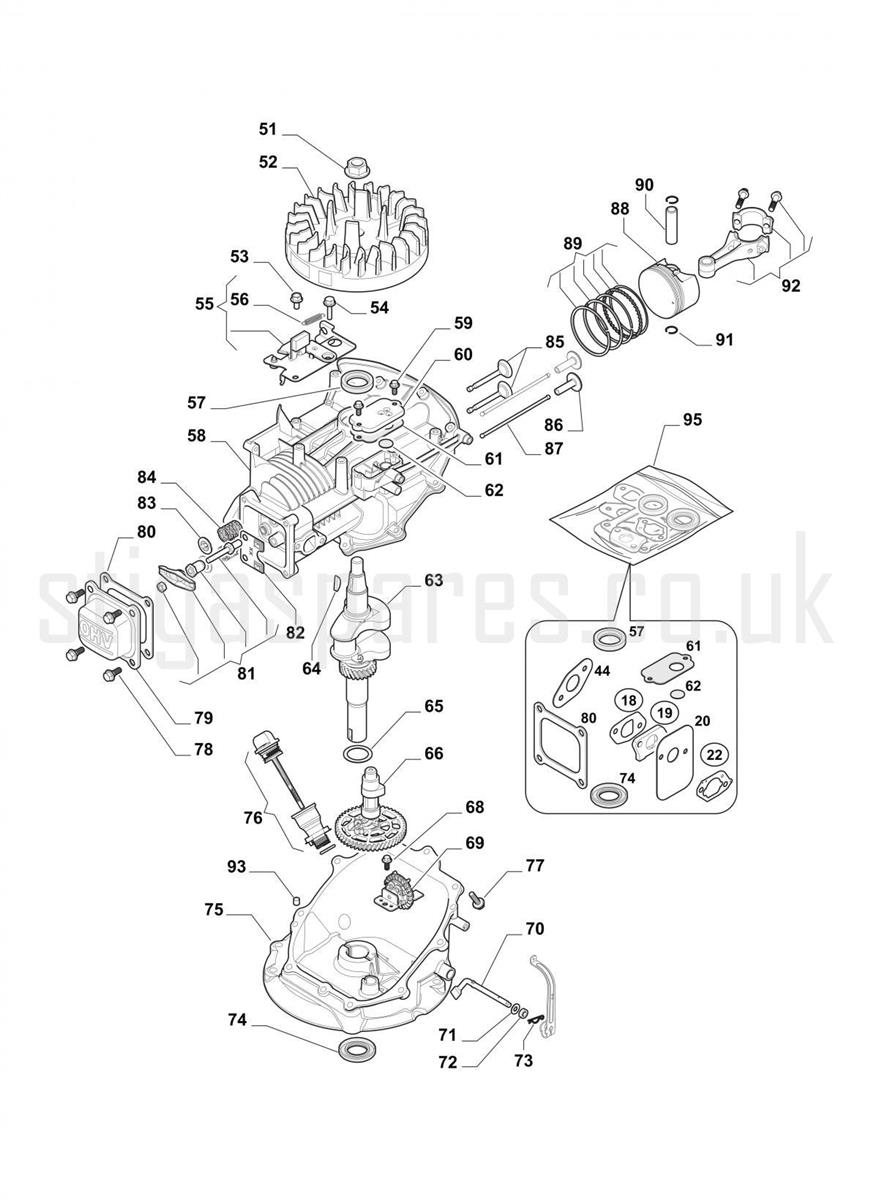

Engine-Piston, Crankshaft assembly details for Stiga MULTIMOWER 48 S 295486148 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
018118550929/0GASKET£2.06 Add to
019118550928/0CARBURETTOR INSULATOR£3.41 Add to
020118550927/0GASKET£5.19 Add to
044118550898/0MUFFLER GASKET£2.87 Add to
051118550336/0NUT£6.42 Add to
052118550905/0FLYWHEEL£84.77 Add to
05318551277/0BoltN/A POA
054112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
055118550938/0FLYWHEEL BRAKE/STOP SWITCH£36.77 Add to
056118550911/0SPRING£2.54 Add to
057118550300/0OIL SEAL£7.63 Add to
058118550897/0CYLINDER ASSEMBLY£119.94 Add to
05912789000/0ScrewN/A POA
060118550904/0BREATHER CHAMBER COVER£4.69 Add to
061118550903/0BREATHER GASKET£3.89 Add to
062118550902/0VALVE£2.06 Add to
063118550889/0CRANKSHAFT£99.76 Add to
06418550288/0Woodruff KeyN/A POA
065118550283/0WASHER£3.69 Add to
066118550890/0CAMSHAFT£28.14 Add to
06812789000/0ScrewN/A POA
069118550888/0SPEED GOVERNOR£17.04 Add to
070118550936/0GOVERNOR ARM SHAFT£6.95 Add to
071118550666/0WASHER (OBSOLETE) (OBSOLETE)N/A
072118550935/0OIL SEAL (OBSOLETE) (OBSOLETE)N/A
073118550856/0LOCK PIN (OBSOLETE) (OBSOLETE)N/A
074118550379/0OIL SEAL£7.10 Add to
075118551209/0CRANKCASE COVER£86.27 Add to
076118550887/0OIL DIPSTICK£11.32 Add to
077112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
078118551276/0HEXAGONAL BOLT£3.15 Add to
079118550891/0HEAD COVER£13.77 Add to
080118550892/0HEAD COVER GASKET£3.69 Add to
081118550893/0ROCKER VALVE ARM SET£13.64 Add to
082118550894/0PLATE£4.82 Add to
083118550895/0RETAINER VALVE SPRING (OBSOLETE) (OBSOLETE)N/A
084118550896/0VALVE SPRING£3.40 Add to
085118550910/0INTAKE/EXHAUST VALVE KIT£20.72 Add to
086118550291/0VALVE LIFTER£10.09 Add to
087118550912/0PUSH ROD£7.63 Add to
088118551216/0PISTON£34.02 Add to
089118550913/0PISTON RING SET£18.53 Add to
090118550915/0PISTON PIN£5.73 Add to
091118550914/0PISTON PIN CLIP£2.06 Add to
092118550916/0CONNECTING ROD ASSEMBLY£26.18 Add to
093118551223/0DOWEL PIN£3.64 Add to
095118550940/0ENGINE GASKET SET£21.40 Add to
