Blade BBC

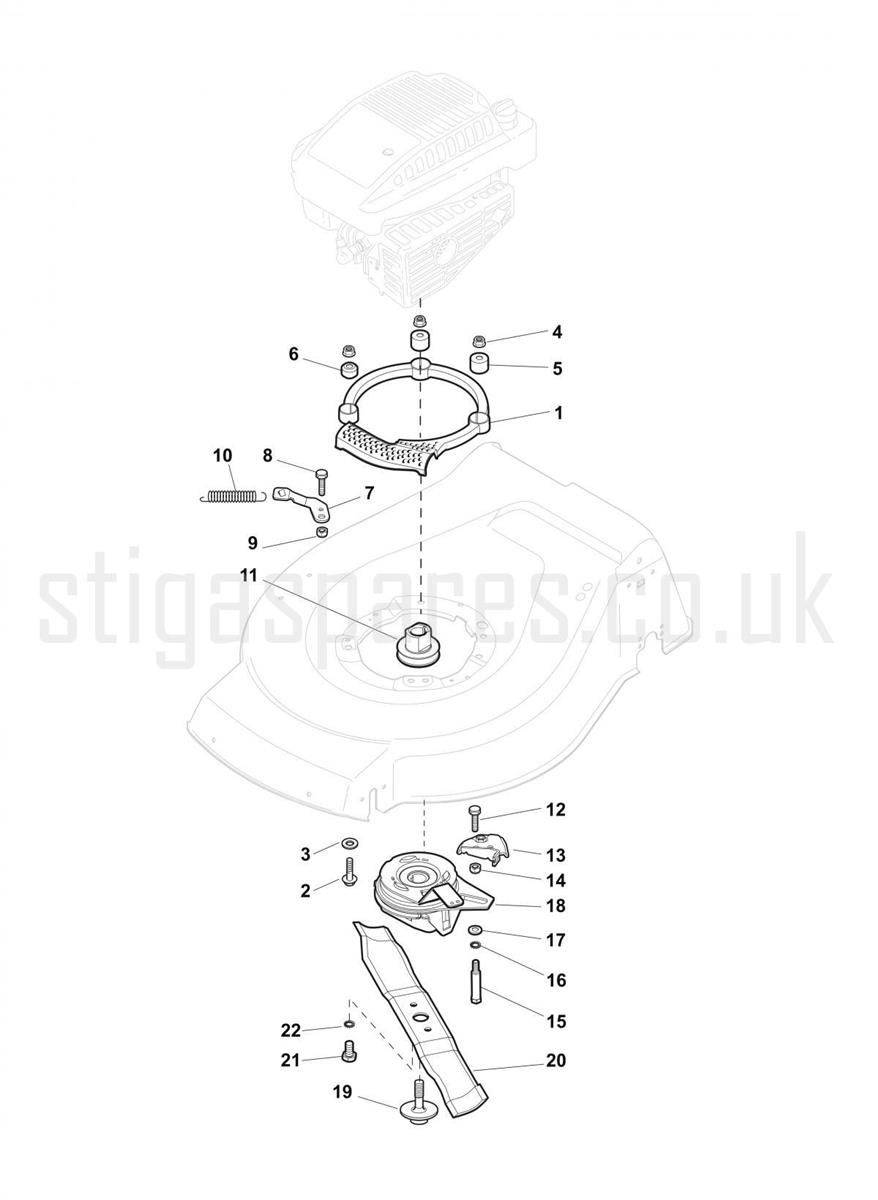

Blade BBC assembly details for Stiga TURBO 53 SQ H BBC 299538838 2017 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322170963/0	Chassis Protection	N/A	POA
002	112691700/0	SCREW M8 x 55	£1.91	Add to
003	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
004	112154210/0	SELF-LOCK WINGED NUT M8 DIN 6927	£2.06	Add to
005	122170835/0	ENGINE SPACER	£6.63	Add to
006	122170836/1	ENGINE SPACER	£8.44	Add to
007	322551671/0	Plate	N/A	POA
008	112791200/1	SCREW TE M6 x 16	£1.79	Add to
009	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
010	122446188/0	SPRING	£10.66	Add to
011	122601923/0	ENGINE HONDA PULLEY NP53	£92.95	Add to
012	112791200/1	SCREW TE M6 x 16	£1.79	Add to
013	381545335/0	PIN PLATE ASS.Y NTD53 BBC	£10.50	Add to
014	112154510/0	LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S	£2.06	Add to
015	122534127/0	FRICTION ANTIROTATION PIN	£9.96	Add to
016	112540060/0	SERRATED LOCK WASHER M8	£2.06	Add to
017	122671653/0	WASHER 8.3 x 20 x 3	£2.06	Add to
018	118399051/0	BLADE BRAKE CLUTCH	£320.51	Add to
019	112735460/0	CLUTCH BOLT	£9.07	Add to
020	181004382/0	MULCHING BLADE L=506mm BBC	£17.04	Add to
021	112540060/0	SERRATED LOCK WASHER M8	£2.06	Add to
022	112794110/1	SCREW TE M10 x 1.5 L=20	£2.18	Add to
