Deck And Height Adjusting

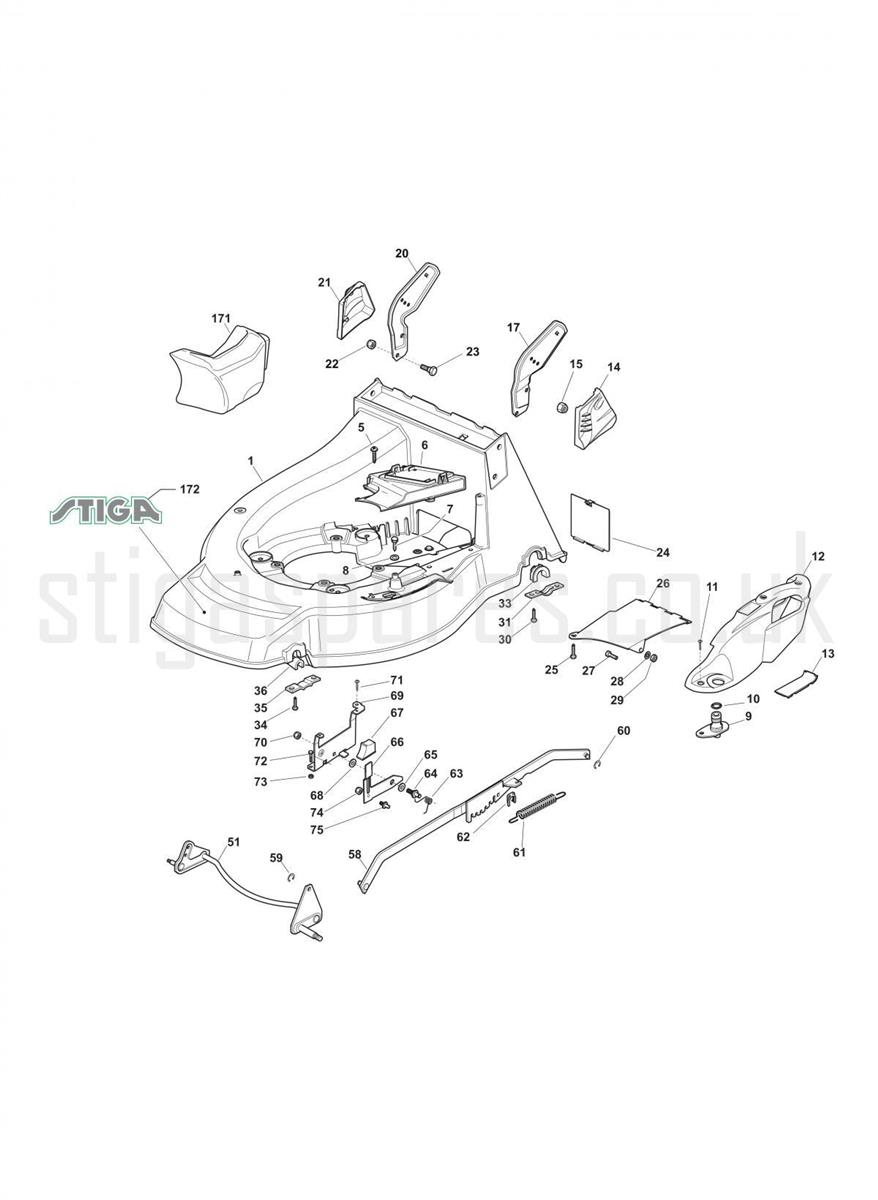

Deck And Height Adjusting assembly details for Stiga TURBO POWER 50 S B 295506028 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381004743/1ALUMINIUM DECK PAN 50 [GREY]£511.29 Add to
005112728522/0SELF-TAP SCREW TCB 5.5 x 19£2.06 Add to
006322060221/0BELT PROTECTION CARTER PAN 50£5.73 Add to
007112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
008112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
009122034000/0WASHING CONNECTION£2.06 Add to
010119035000/0O RING 10.77 x 2.62£5.46 Add to
011112728520/0SELF-TAP SCREW TCB 5.5 x 13£1.79 Add to
012122060146/0DECK HEIGHT ADJUSTER£5.21 Add to
013122546070/0LOCKING PLATE HANDLE HEIGHT ADJ.£2.06 Add to
014322601003/0PROTECTIVE COVER L/H£3.55 Add to
015112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
017322778397/1LEFT HANDLE BRACKET£13.77 Add to
020322778396/1RIGHT HANDLE BRACKET£13.77 Add to
021322601002/1PROTECTIVE COVER R/H£2.06 Add to
022112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
023112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
024122595352/0INSPECTION DOOR£2.74 Add to
025112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
026322108205/1COVER PLATE£10.50 Add to
027112789000/0SCREW TE M5 x 12£2.06 Add to
028112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
029112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
030112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
031322545147/0AXLE PLATE£2.32 Add to
033322038407/0AXLE U PLATE£2.06 Add to
034112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
035322545156/0STOP PLATE£1.79 Add to
036122038400/1FRONT AXLE BUSH£1.91 Add to
051381302865/0FRONT WHEELS AXLE£42.53 Add to
058381002039/1HEIGHT ADJUST ROD£50.70 Add to
059112000930/0CIRCLIP D=6£0.79 Add to
060112000930/0CIRCLIP D=6£0.79 Add to
061122446187/0SPRING£6.42 Add to
062112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
063122446176/1HEIGHT ADJUST SPRING£3.41 Add to
064122517880/1FULCRUM PIN£4.78 Add to
065322672152/0ANTI-FRICTION WASHER 8.2 x 30 x 0.8£1.91 Add to
066322322829/1HEIGHT ADJUST LEVER£3.15 Add to
067122602000/0HEIGHT ADJ.LEVER CONTROL BUTTON£2.06 Add to
068322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
069322785115/0WHEELS ADJ.SUPPORT ZNW PAN 50£7.10 Add to
070112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
071112729600/0SELF-TAP SCREW TE 5.5 x 16£2.06 Add to
072112793101/0HEXAG-HEAD SCREW M8X20 UNI5739 STEEL4.8£2.06 Add to
073112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
074112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
075122519746/0PIN£2.74 Add to
171322140224/1MULCHING PLUG [NP53]£38.12 Add to
172114367494/2EMBLEMA LABEL STIGA 3D 93 x 19mm£9.54 Add to
