Protection, Belt

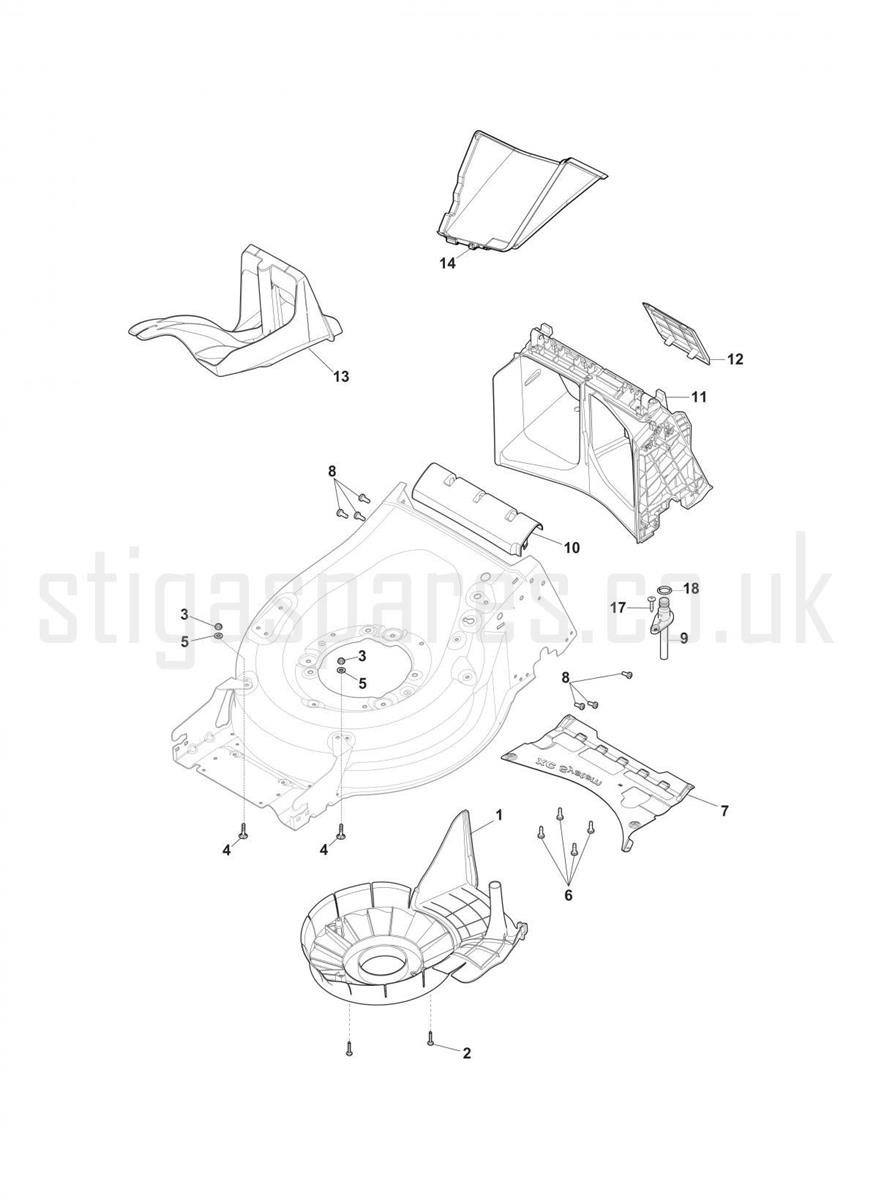

Protection, Belt assembly details for Stiga TWINCLIP 50 S 294512048 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322060270/1BELT PROTECTION GUARD [MP1 50]£17.05 Add to
002112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
005112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
006112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
007322778493/0REAR LOWER COVER£17.86 Add to
008112735664/0SCREW M6 x 16£2.02 Add to
009322034006/0WASHING CONNECTION£7.36 Add to
010322109578/0DEFLECTOR SUPPORT [GREY] MP2£5.87 Add to
011381004825/0REAR BAFFLE [GREY]£143.37 Add to
012322600310/0REAR DOOR£5.46 Add to
013322140247/0MULCHING PLUG [MP2 504]£24.95 Add to
014322108319/0REAR BAFFLE PLATE£22.35 Add to
017112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
018119035000/0O RING 10.77 x 2.62£5.46 Add to
