Blade (2)

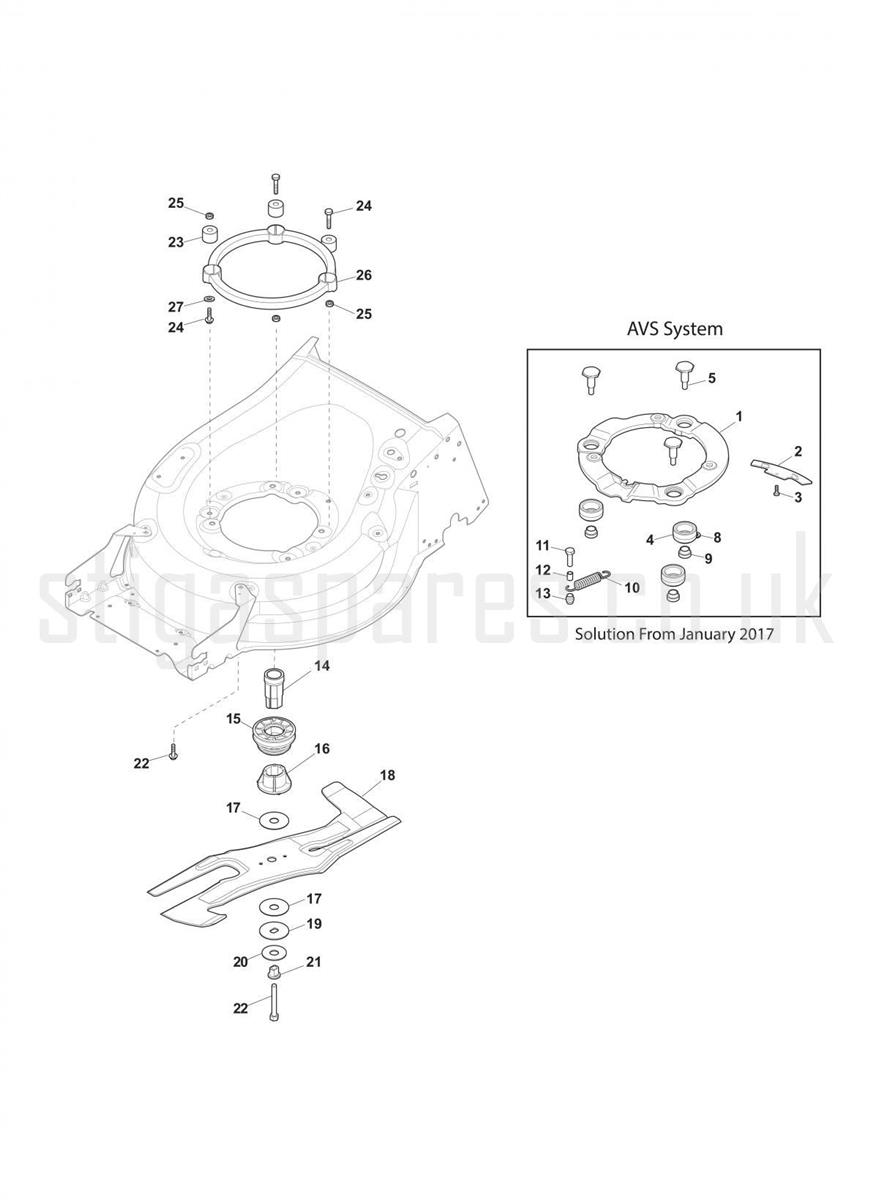

Blade (2) assembly details for Stiga TWINCLIP 50 SV H 294513038 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381207230/0ENGINE MOUNTING PLATE AVS MP2 [YELLOW]£34.81 Add to
002322551536/0PLATE£4.10 Add to
003112728210/0SCREW TORX M4 x 10£1.79 Add to
004322250015/1AVS RUBBER DAMPER£7.51 Add to
005122519816/0PIN£10.91 Add to
008112543002/0SPRING WASHER M8 C60£1.58 Add to
009112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
010122450439/0TENSION SPRING£3.69 Add to
011112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
012122170846/0SPACER£3.55 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014122785494/0PULLEY ADAPTOR D=25£15.13 Add to
015122601933/0PULLEY£60.24 Add to
016122465656/0BLADE BOSS D=22£11.46 Add to
017322672110/1FRICTION WASHER 18.3 x 60 x 1.5£1.91 Add to
018181004415/0TWINCLIP BLADE 50£58.87 Add to
019322672105/0BLADE WASHER 60 x 18 x 2£1.91 Add to
020112508120/0SPRING WASHER 18.4 x 50 x 2£3.72 Add to
021122041943/0BUSH£10.02 Add to
022112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
023122170835/0ENGINE SPACER£6.63 Add to
024112691700/0SCREW M8 x 55£1.91 Add to
025112154210/0SELF-LOCK WINGED NUT M8 DIN 6927£2.06 Add to
026322170964/0ENGINE SUPPORT RING£4.42 Add to
027112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
