Chassis-Handle, Upper Part

Chassis-Handle, Upper Part assembly details for Stiga TWINCLIP 50 SV H 294513038 2017 model

Parts list

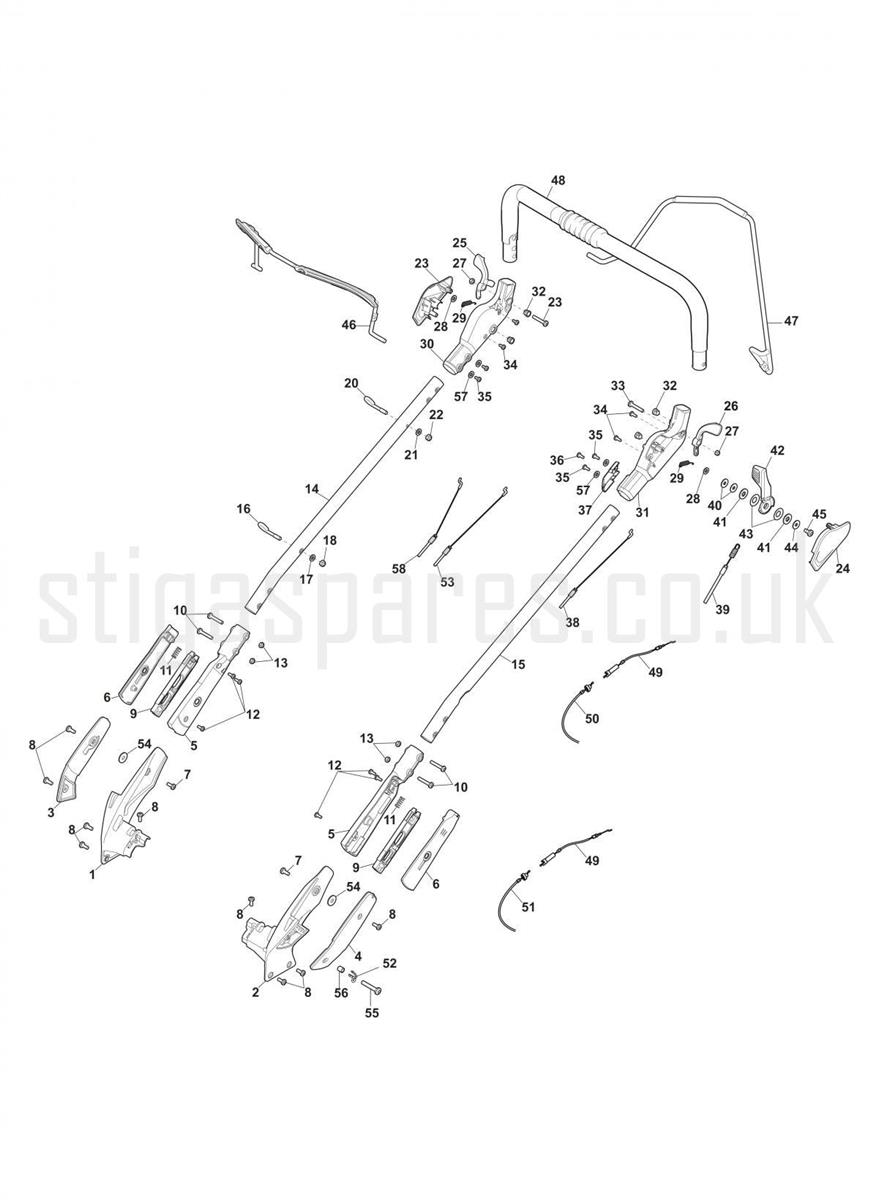

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381005219/1RIGHT HANDLE BRACKET£33.86 Add to
002381005221/0LEFT HANDLE BRACKET£33.16 Add to
003381005223/0Cover, Right (USE 1 x 381005219/1 + 381005239/0)£45.65 Add to
004381005225/0Cover, Left (USE 1 x 381005241/0 & 1 x 381005221/1£45.66 Add to
005381005233/0381005247/0 x1 / 381005245/0 x1£42.05 Add to
006381005245/0OUTER HANDLE COVER£16.50 Add to
007122517885/0HANDLE PIN£3.64 Add to
008112735664/0SCREW M6 x 16£2.02 Add to
009322246106/0INNER HANDLE GUIDE£13.24 Add to
010112727783/0CROSS-HEAD SCREW M6 x 40£2.06 Add to
011125430202/1SPRING£2.06 Add to
012112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
013112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
014381007579/0R/H UPPER HANDLE MP2 [ASTRAL GREY]£34.35 Add to
015381007591/0L/H UPPER HANDLE MP2 [ASTRAL GREY]£28.46 Add to
016122430318/0LONG PULL CORD GUIDE MP2£10.09 Add to
017112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
018112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
020122430314/0PULL CORD GUIDE£6.27 Add to
021112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
022112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
023381004848/0RIGHT OUTER COVER£12.06 Add to
024381004849/0LEFT OUTER COVER£17.34 Add to
025322722823/0RIGHT ADJUST LEVER£11.98 Add to
026322722822/0LEFT ADJUST LEVER£11.98 Add to
027112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
028112604897/0STARLOCK WASHER D=5£2.06 Add to
029122450490/0SPRING£2.06 Add to
030381007580/0UPPER R/H JOINT MP2 [GREY]£34.35 Add to
031381007581/0UPPER L/H JOINT MP2 [GREY]£33.69 Add to
032322041967/1BUSH£2.06 Add to
033112728721/0SCREW M6 x 30£1.91 Add to
034112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
035112735664/0SCREW M6 x 16£2.02 Add to
036112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
037322557108/0PROTECTION PLATE£2.06 Add to
038381030120/0CABLE CURSOR£11.59 Add to
039381030122/0UPPER VARIATOR CABLE£19.77 Add to
040112508127/0SPRING WASHER 25 x 12.2 x 0.9£3.64 Add to
041322672157/0WASHER£2.06 Add to
042381007228/0VARIATOR SPEED LEVER MP2 [YELLOW]£31.63 Add to
043322672155/0FRICTION WASHER 12.2 x 25 x 1.5£3.15 Add to
044112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
045112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
046381003472/1ENGINE BRAKE LEVER [BLACK]£47.16 Add to
047381003349/0CLUTCH DRIVE LEVER [BLACK]£45.66 Add to
048381007590/0UPPER HANDLE c/w SPONGE GRIP MP2£38.44 Add to
049322246112/0UPPER CABLE JOINT£10.42 Add to
050381030126/0LOWER VARIATOR CABLE£14.58 Add to
051381030130/0LOWER CLUTCH DRIVE CABLE MP2£15.41 Add to
052122430324/0LOWER ROPE GUIDE£2.86 Add to
053381030127/0UPPER CLUTCH CABLE£18.82 Add to
054122675110/0WASHER D=13.5 x 20.5 x 0.5£2.14 Add to
055112735660/0SCREW M6 x 35£2.00 Add to
056122170610/0SPACER (OBSOLETE) (OBSOLETE)N/A
057112543001/0SERRATED SPRING WASHER M6£5.32 Add to
058181030128/0ENGINE BRAKE CABLE MP2E 50£15.28 Add to
