Deck And Height Adjusting

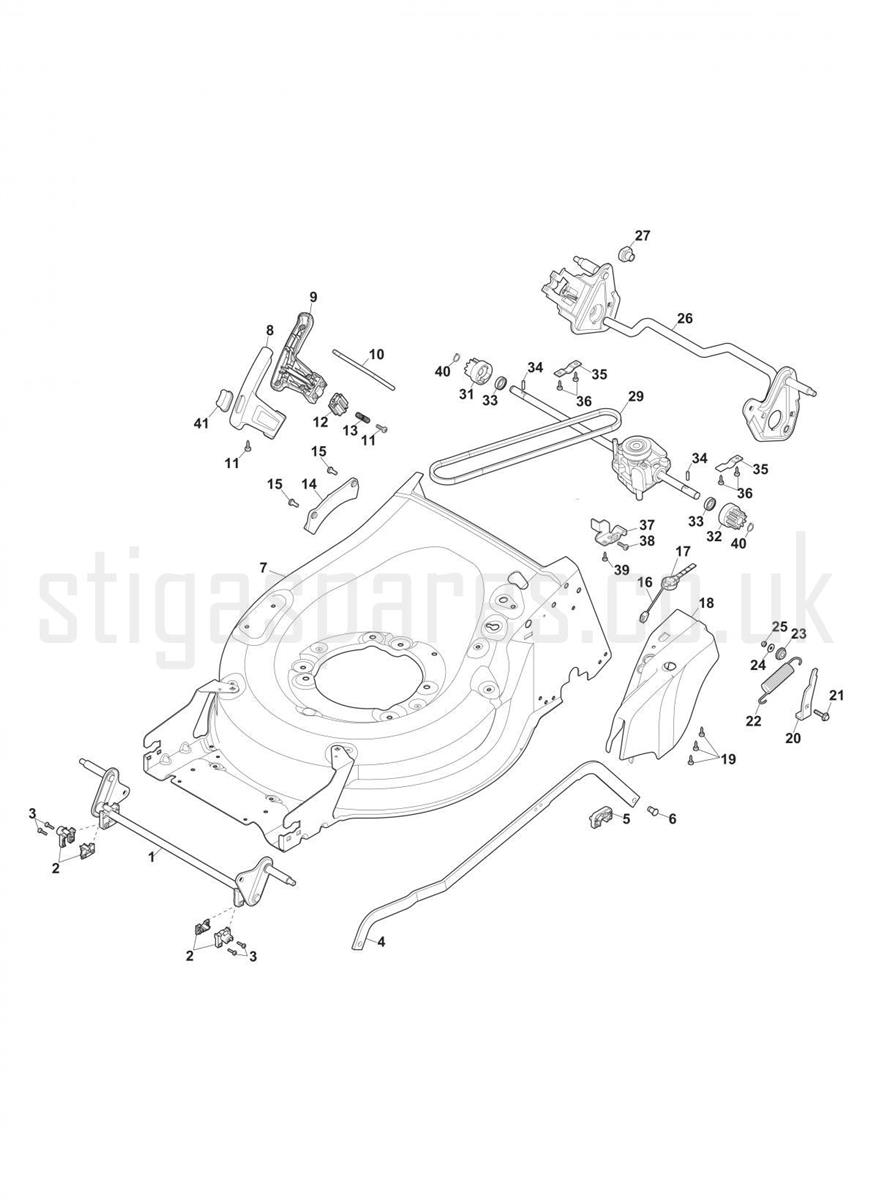

Deck And Height Adjusting assembly details for Stiga TWINCLIP 55 SV H 294563038 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302903/0FRONT WHEELS AXLE£34.34 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
003112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
004322869693/1WHEEL CONTROL ROD 200/280 ZNB MP1/MP2 55£35.71 Add to
005112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
006122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
007381004839/0HYBRID STEEL DECK MP2 554 [GREY]£211.50 Add to
008322394534/0UPPER HEIGHT ADJUST GRIP [BLACK]£4.52 Add to
009322394554/0LOWER HEIGHT ADJUST GRIP [BLACK/YELLOW]£5.48 Add to
010322869723/0ROD£2.06 Add to
011112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
012322109580/0ADJUSTER SLIDE£6.69 Add to
013122450484/0SPRING£2.00 Add to
014322735592/0HEIGHT ADJUST QUADRANT£12.00 Add to
015112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
016322602031/0HEIGHT ADJUST PLASTIC TAB£2.47 Add to
017322602027/0LENS£2.18 Add to
018322055335/0HEIGHT ADJUST COVER MP2 55 [GREY]£16.10 Add to
019112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
020322778475/0HEIGHT ADJUST BRACKET£3.15 Add to
021112815270/0SCREW M6 x 25£2.06 Add to
022122450480/0SPRING£2.32 Add to
023122517873/0BUSH£3.41 Add to
024112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
025112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
026381302905/0REAR WHEELS AXLE ASS.Y D240 MP2 50-55£62.97 Add to
027322038407/0AXLE U PLATE£2.06 Add to
028181003119/0VARIATOR GEARBOX MC600£231.93 Add to
029135064394/0VARI-SPEED BELT ZX31 LP=808£30.78 Add to
031122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
032122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
033119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
034122753000/0PIN D=5.2 x 25.65£2.06 Add to
035322545147/0AXLE PLATE£2.32 Add to
036112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
037322778491/0FIXING PLATE£6.14 Add to
038112735664/0SCREW M6 x 16£2.02 Add to
039112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
040112608600/0CIRCLIP D=12£2.08 Add to
041322602029/0BUTTON [YELLOW]£2.06 Add to
