Protection, Belt

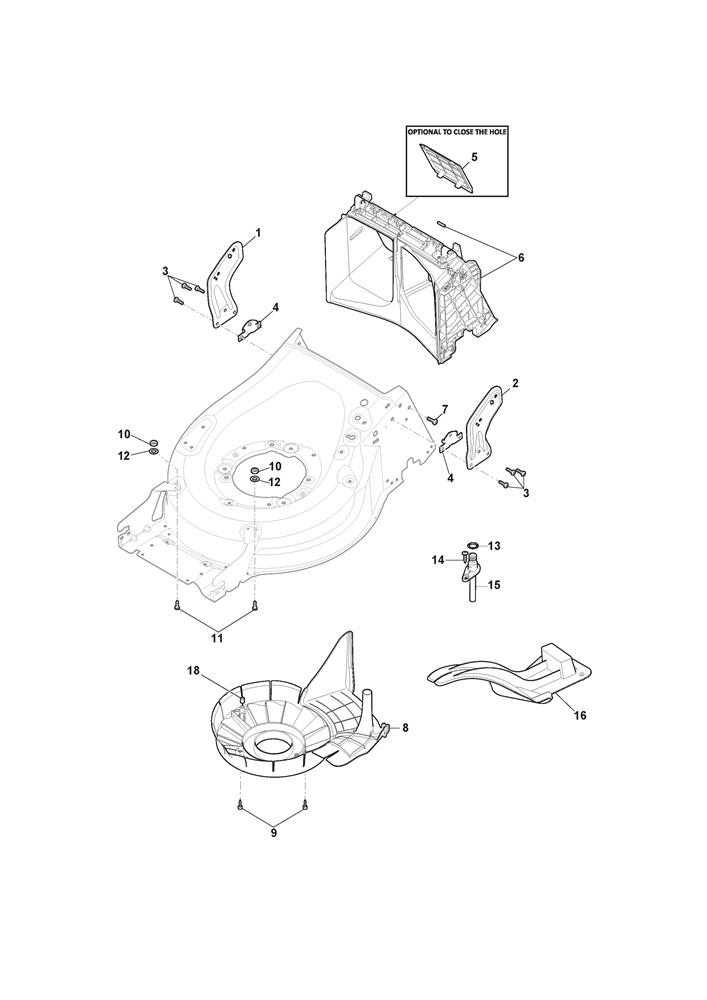

Protection, Belt assembly details for Stiga COMBI 50 SVEQ (294503548/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381005235/2RIGHT HANDLE SUPPORT MP1 STIGA GREY WRIN£8.44 Add to
002381005237/2LEFT HANDLE SUPPORT MP1 STIGA GREY WRIN£8.44 Add to
003112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
004322545213/0FIXING PLATE£2.06 Add to
005322600310/0REAR DOOR£5.46 Add to
006381102204/1REAR CONVEYOR ASSEMBLY MP1 50-55£28.90 Add to
007112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
008322060270/3BELT PROTECTION GUARD [MP1 50]£11.46 Add to
009112735645/0SCREW TCB TORX M4 x 20£2.18 Add to
011112815206/0SCREW M6 x 12 UNI5732 8.8 WHITE ZINC£2.05 Add to
012112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
013119035000/0O RING 10.77 x 2.62£5.46 Add to
015322034002/0WASHING CONNECTION£2.06 Add to
016322140245/0MULCHING PLUG [MP1 504]£12.55 Add to
018122042073/0BELT GUARD BUSH MP1-MP2£2.06 Add to
