Ejection-guard

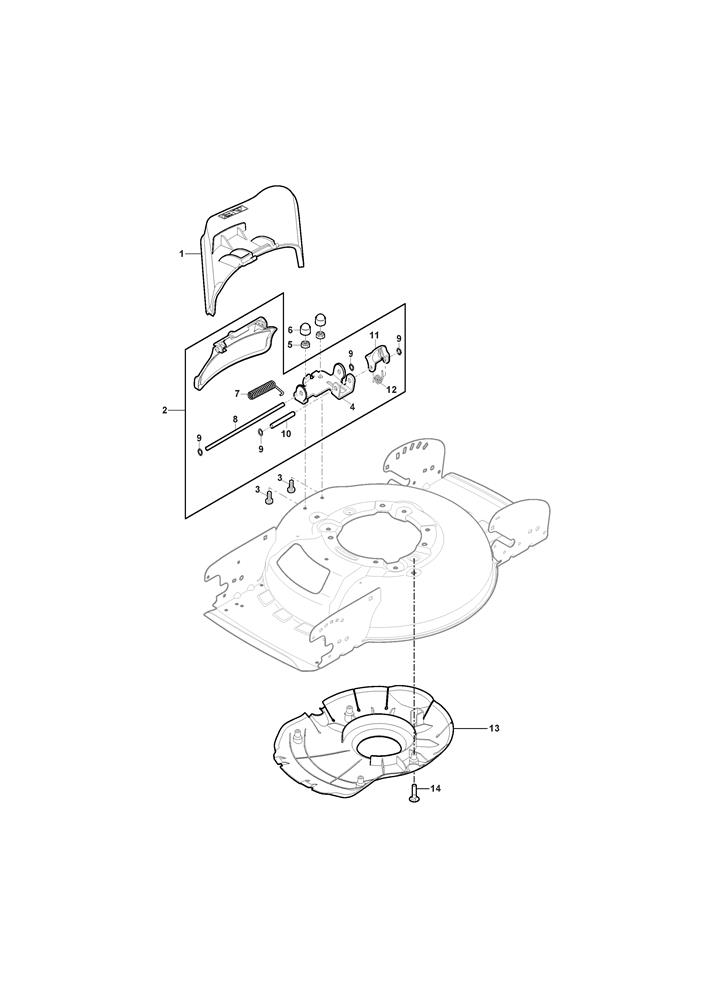

Ejection-guard assembly details for Stiga MULTICLIP 47 SQ B (298472828/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108314/0SIDE DISCHARGE FLAP [BLACK]£11.36 Add to
002381008160/1SIDE STONE GUARD ASS.Y MCS 47 BLACK£18.27 Add to
003112727803/0SCREW TCB TORX M6 x 14£2.06 Add to
004322806659/0FULCRUM SUPPORT£5.60 Add to
006118203853/0BLACK NUT CAP M6£3.00 Add to
007122450456/1DEFLECTOR SPRING£3.69 Add to
008122517869/1DEFLECTOR ROD£4.23 Add to
009112604896/0STARLOCK WASHER D=6£2.06 Add to
010122517876/0SAFETY PIN£1.79 Add to
011322783013/0SAFETY LOCK£2.06 Add to
012122450493/0SAFETY SPRING£1.79 Add to
013322060269/0BELT PROTECTION COVER£7.51 Add to
014112728903/0SCREW£1.69 Add to
