Engine - Carburettor, Tank

Engine - Carburettor, Tank assembly details for Stiga MULTICLIP 47 ST 120 OHV (298471048/ST1) 2020 model

Parts list

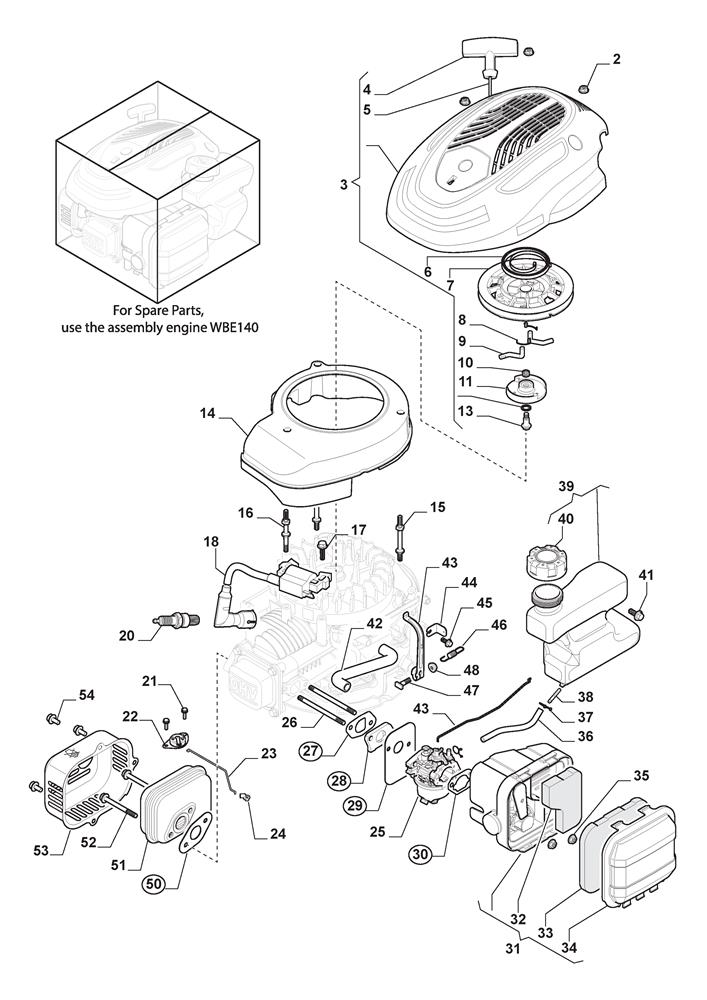

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
003118551467/0RECOIL ASSEMBLY£73.87 Add to
004118550779/0RECOIL ROPE£7.63 Add to
005118550779/0RECOIL ROPE£7.63 Add to
006118551621/0RECOIL STARTER SPRING£8.73 Add to
007118551620/0RECOIL PULLEY£15.81 Add to
008118551626/0RATCHET, RETURN SPRING£2.32 Add to
009118551622/0RATCHET, STARTER£3.41 Add to
010118551625/0SPRING£2.87 Add to
011118551623/0COVER£8.04 Add to
013118551624/0RECOIL PULLEY BOLT£4.52 Add to
014118550908/0FAN COVER£39.80 Add to
015118550302/0STUD BOLT (OBSOLETE)N/A
016118550906/0STUD BOLT£5.52 Add to
018118551475/0IGNITION COIL£53.42 Add to
0209400-0244-00SPARK PLUG [CHAMPION RC12YC]£6.35 Add to
021112789000/0SCREW TE M5 x 12£2.06 Add to
022118551456/0AUTO-CHOKE CONTROL£22.93 Add to
023118551459/0CHOKE CONTROL ROD£8.73 Add to
024118551352/0RETAINING CLIP£3.41 Add to
025118551489/1CARBURETTOR 120cc£71.14 Add to
026118550930/0STUD BOLT£5.92 Add to
027118550929/0GASKET£2.06 Add to
028118550928/0CARBURETTOR INSULATOR£3.41 Add to
029118550927/0GASKET£5.19 Add to
030118550924/0CARBURETTOR GASKET£2.06 Add to
031118551461/0AIR FILTER ASSEMBLY£32.99 Add to
032118550946/0INNER AIR FILTER£6.00 Add to
033118550945/0OUTER AIR FILTER£3.55 Add to
034118550944/0AIR FILTER COVER£9.41 Add to
035112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
036118551481/0FUEL PIPE£7.23 Add to
037118550918/0PIPE CLIP£2.06 Add to
038118550314/0FUEL FILTER£4.78 Add to
039118551454/0FUEL TANK ASSEMBLY£42.53 Add to
040118550339/1FUEL TANK CAP£15.81 Add to
041112792099/0HEX HEAD SCREW M6 x 30£1.79 Add to
042118550920/0BREATHER FUEL PIPE£4.52 Add to
043118550933/0GOVERNOR ARM£6.55 Add to
044118550931/0PLATE (OBSOLETE)N/A
045112789000/0SCREW TE M5 x 12£2.06 Add to
046118550932/0GOVERNOR SPRING£1.55 Add to
047118550805/0BOLT£4.01 Add to
048118550806/0NUT£2.14 Add to
049118550925/0GOVERNOR ROD£2.06 Add to
050118550898/0MUFFLER GASKET£2.87 Add to
051118551464/0MUFFLER£34.35 Add to
052112792425/0HEX-HEAD SCREW M6 X 55£2.06 Add to
053118550900/0MUFFLER GUARD£21.40 Add to
054118551277/0SCREW M6 X 14 (OBSOLETE)N/A
