Blade

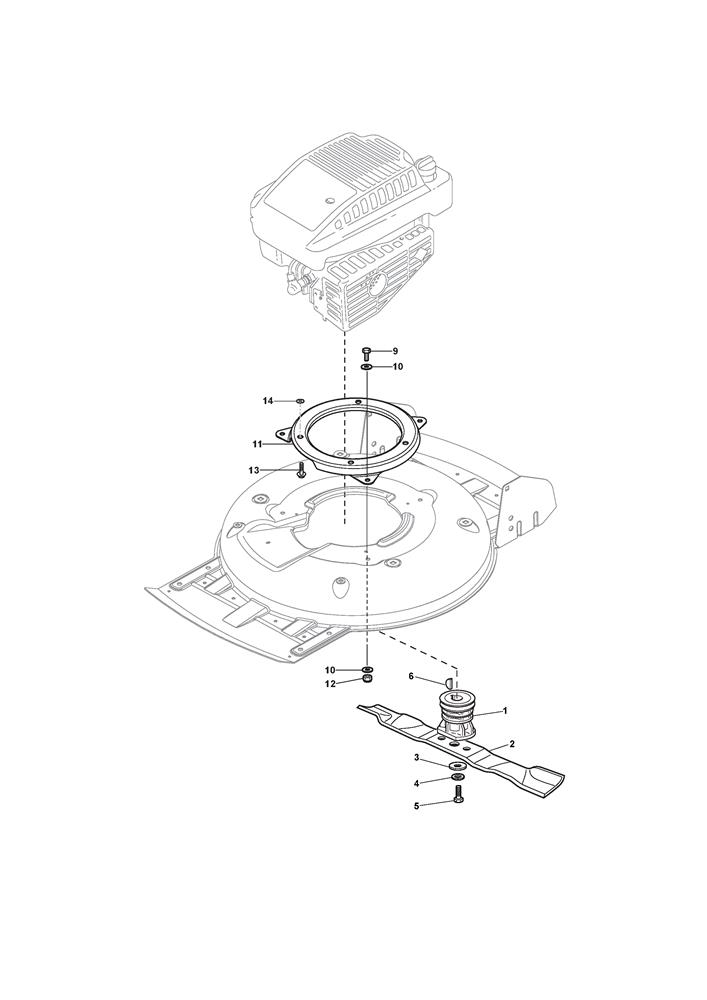

Blade assembly details for Stiga MULTICLIP 50 SX - ST 170 OHV (291502048/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001122465607/4BLADE BOSS D=22.2mm£10.09 Add to
002181004146/0MULTICLIP BLADE 48/50cm£15.94 Add to
003122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
004112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
005112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
006112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
009112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
011322207219/1ENGINE MOUNTING PLATE [BLACK]£24.81 Add to
013112735108/1TELF-FORM SCREW 3/8" X 1¼" UNC£2.57 Add to
014112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
