Handle, Upper Part

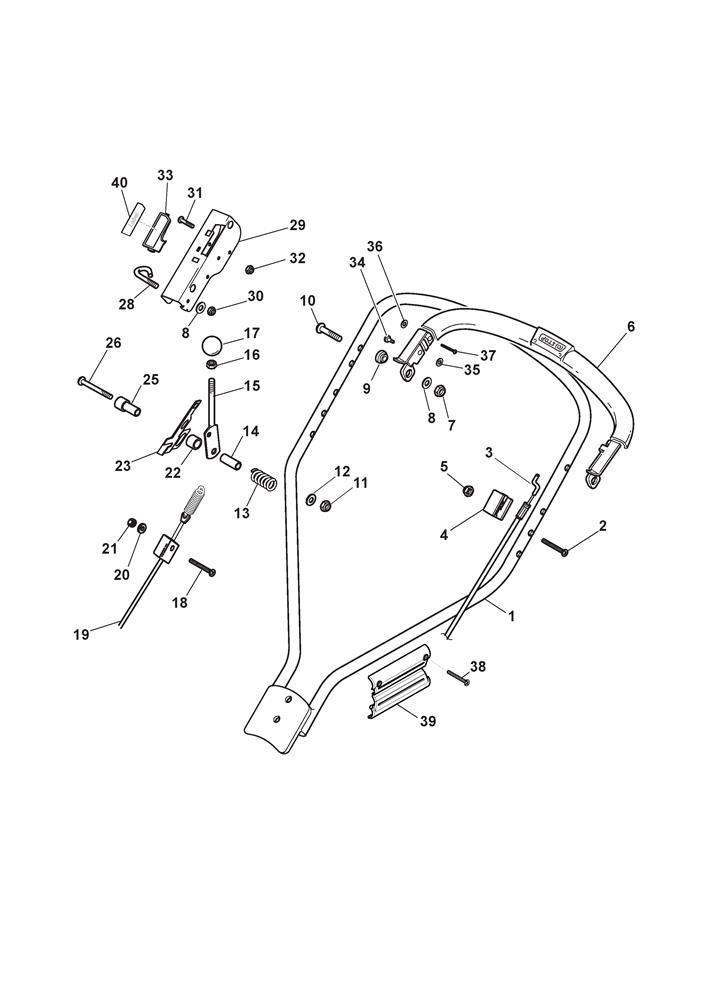

Handle, Upper Part assembly details for Stiga MULTICLIP PRO 50 SX H - GCV 170 A.C. (291502138/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006371/0UPPER HANDLE PRO MC [GREY]£124.82 Add to
002112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
003181000769/1ENGINE BRAKE CABLE L=1206£14.74 Add to
004322551639/0CABLE HOLDER BLOCK D=25£14.93 Add to
006381003318/1ENGINE BRAKE LEVER£34.35 Add to
008112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
009122671660/1WASHER£3.69 Add to
010112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
012112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
013122450446/0SPRING£2.06 Add to
014122170840/0SPACER£6.32 Add to
015381003313/0CLUTCH DRIVE LEVER£16.22 Add to
016112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
017322399812/0BALL KNOB£3.41 Add to
018112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
019381030133/0CLUTCH DRIVE CABLE G.T. MCS50£22.37 Add to
020112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
022122170843/0SPACER - NLA£1.91 Add to
023322551653/0SUPPORT LEVER PLATE£4.52 Add to
025122170842/0SPACER£2.59 Add to
026112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
028122430314/0PULL CORD GUIDE£6.27 Add to
029381004405/0DASHBOARD£21.26 Add to
031112727792/0CROSS-HEAD SCREW M6 x 35£2.06 Add to
033322500050/0DECAL PLATE£2.06 Add to
034122524342/0FIXING PIN£2.06 Add to
035112604897/0STARLOCK WASHER D=5£2.06 Add to
037112727796/0SCREW TCB TORX M5 x 12£2.06 Add to
038112728701/0SELF-TAP SCREW TORX K40 x 25£1.79 Add to
039322806645/0CABLES SUPPORT£4.23 Add to
040114361298/0TRACTION DRIVE LABEL X DASHB.PRO MCS534£2.18 Add to
