Transmission

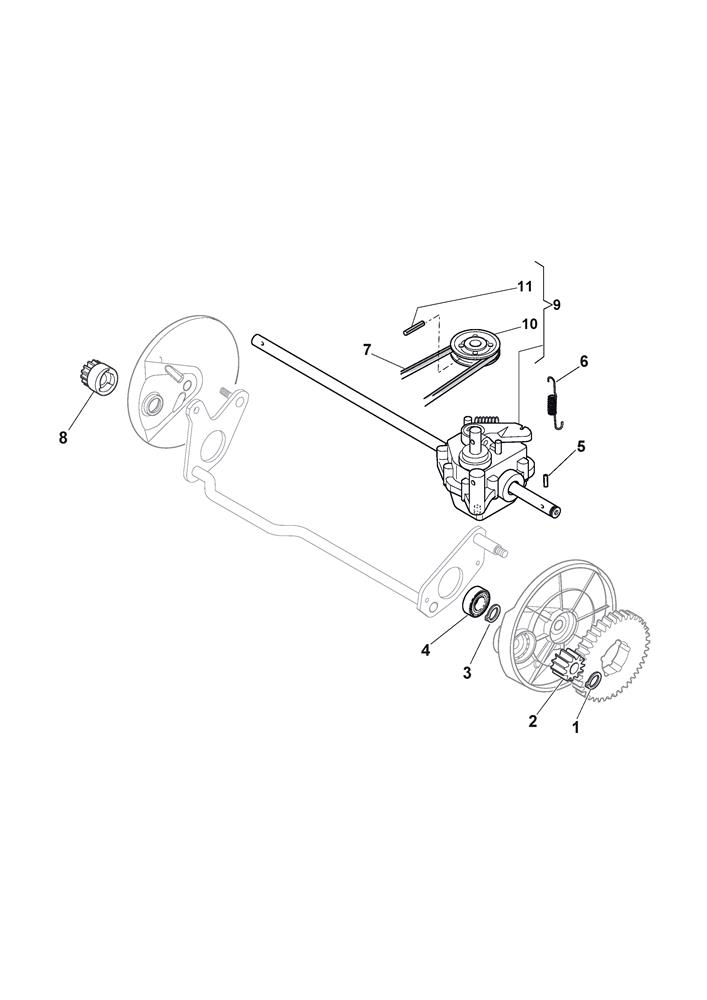

Transmission assembly details for Stiga MULTICLIP PRO 50 SX H - GCV 170 A.C. (291502138/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112608600/0CIRCLIP D=12£2.08 Add to
002122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
003112608600/0CIRCLIP D=12£2.08 Add to
004119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
005122753000/0PIN D=5.2 x 25.65£2.06 Add to
006122450437/0SPRING£3.55 Add to
007135064105/0TRAPEZOIDAL BELT Z30 Lp=809±2£10.77 Add to
008122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
009181003127/0GEARBOX GT MCS 50£135.19 Add to
010122601909/0PULLEY£6.01 Add to
011112645705/0ROLL PIN D=5 x 32£2.02 Add to
