Blade

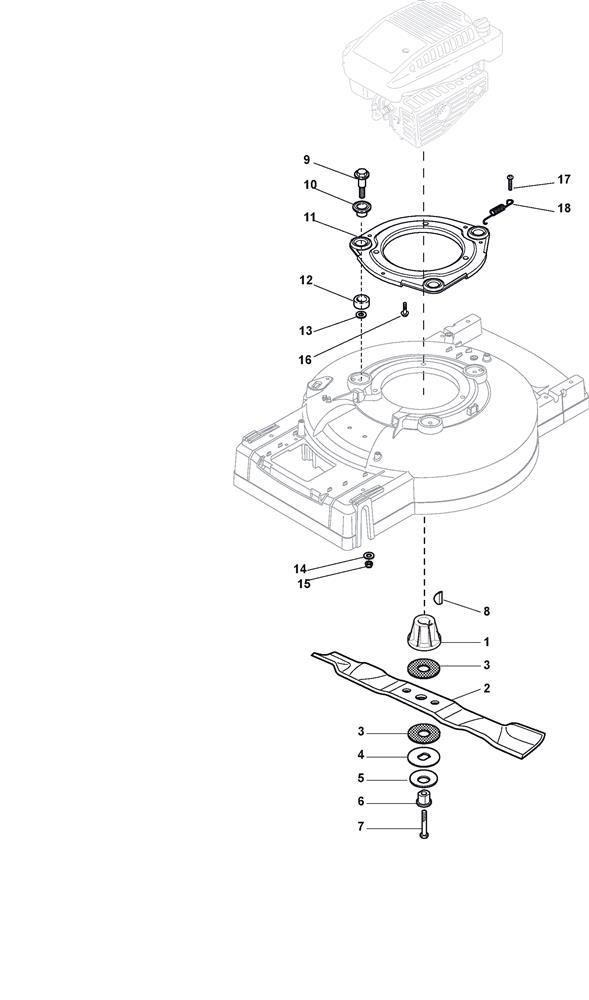

Blade assembly details for Stiga MULTICLIP PRO 53 SVX B (293533028/ST1) 2020 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	122465621/0	FRICTION BLADE BOSS 22.2mm	£14.86	Add to
002	181004139/0	MULCHING BLADE L=508 MCA 53	£17.59	Add to
003	322672110/1	FRICTION WASHER 18.3 x 60 x 1.5	£1.91	Add to
004	322672105/0	BLADE WASHER 60 x 18 x 2	£1.91	Add to
005	112508120/0	SPRING WASHER 18.4 x 50 x 2	£3.72	Add to
006	122041940/0	METAL BUSH 25 x 19 x 15	£5.87	Add to
007	112736850/0	HEX-HEAD SCREW 3/8" x 2½"	£2.32	Add to
008	112139100/0	WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40	£2.06	Add to
009	122524329/0	HEXAGON BOLT M8	£12.68	Add to
010	322672201/0	RUBBER GROMMET	£6.27	Add to
011	381207225/1	ENGINE MOUNTING [YELLOW]	£34.18	Add to
012	322250012/0	AVS RUBBER DAMPER	£9.00	Add to
013	122671651/0	WASHER 8.3 x 22 x 2	£2.32	Add to
014	112521350/0	WASHER M8 8.4 x 16 x 1.6	£2.06	Add to
016	112735108/1	TELF-FORM SCREW 3/8" X 1¼" UNC	£2.57	Add to
017	112729601/1	SELF-TAP SCREW TE FL 5.5 x 16	£2.06	Add to
018	122450449/0	TENSION SPRING	£3.69	Add to
