Handle

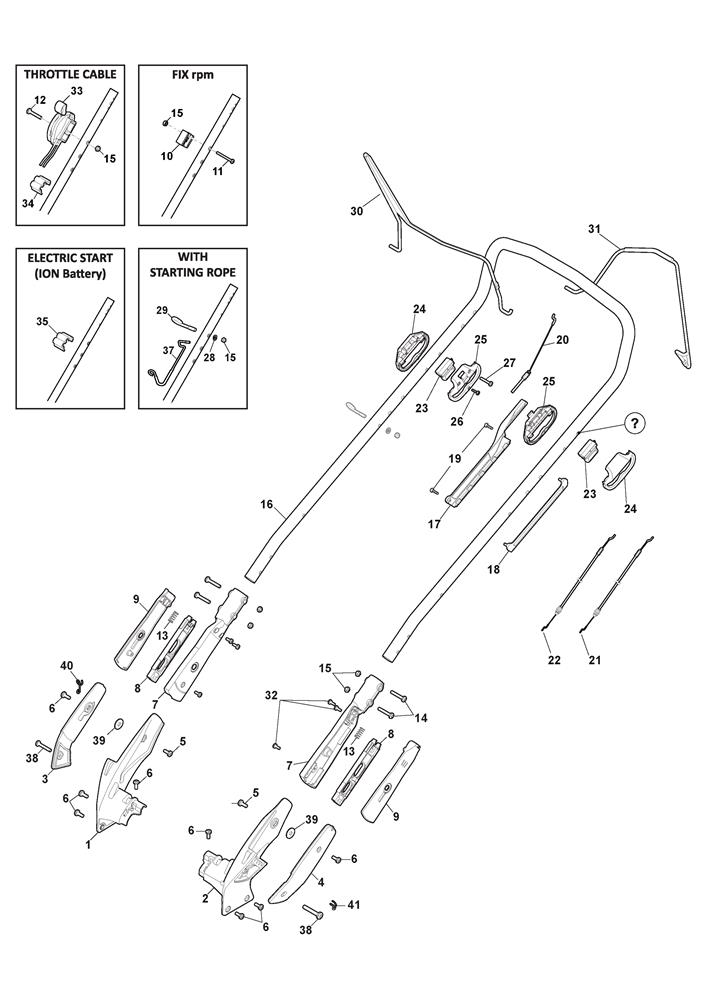

Handle assembly details for Stiga TWINCLIP 50 S - ST 170 OHV (294512048/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381005219/1RIGHT HANDLE BRACKET£33.86 Add to
002381005221/1LEFT HANDLE BRACKET£32.99 Add to
003381005239/0RIGHT HANDLE COVER£13.91 Add to
004381005241/0LEFT HANDLE COVER£13.91 Add to
005122517885/0HANDLE PIN£3.64 Add to
006112735664/0SCREW M6 x 16£2.02 Add to
007381005243/0MAIN HANDLE BASE£22.69 Add to
008322246106/0INNER HANDLE GUIDE£13.24 Add to
009381005245/0OUTER HANDLE COVER£16.50 Add to
010322551684/0CABLES HOLDER WBH HANDLE D=25£9.28 Add to
011112727784/0CROSS-HEAD SCREW M6 x 45£1.79 Add to
012112727786/0CROSS-HEAD SCREW M6 x 60£2.32 Add to
013125430202/1SPRING£2.06 Add to
014112727799/0SCREW TCB TORX M6 x 35£2.18 Add to
016381007578/1BULLDOG HANDLE ASSY MP2 ASTRAL GREY+GRIP£84.70 Add to
017322806650/0INTERNAL SUPPORT MP2 [GREY]£5.60 Add to
018322806651/0EXTERNAL SUPPORT MP2 [GREY]£5.46 Add to
019112728713/0SELF-TAP SCREW K40 x 20£1.79 Add to
020381030123/0CABLE CURSOR£10.50 Add to
021381030118/0CLUTCH DRIVE CABLE£20.45 Add to
022181030053/0ENGINE BRAKE CABLE L=1150£16.87 Add to
023322394540/0LEVER BLOCK MP2 [YELLOW]£3.55 Add to
024322722821/0EXTERNAL HANDLE COVER MP2£3.69 Add to
025322722820/0INTERNAL HANDLE COVER MP2£3.69 Add to
026112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
027112728705/0SELF-TAPPING SCREW TORX K50 x 25£3.00 Add to
028112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
029122430313/0PULL CORD GUIDE£4.37 Add to
030181003490/0ENGINE BRAKE LEVER£36.31 Add to
031181003491/0CLUTCH DRIVE LEVER£37.33 Add to
032112735651/0SCREW TCB TORX M5 x 10£2.06 Add to
033181005541/0THROTTLE CABLE [MP2 50-55 GGP 160]£26.85 Add to
034118390020/0CABLE CLIP£1.91 Add to
035118390020/0CABLE CLIP£1.91 Add to
037122430318/0LONG PULL CORD GUIDE MP2£10.09 Add to
038112735660/0SCREW M6 x 35£2.00 Add to
0399694-0001-00SPACER WASHER£2.06 Add to
040122430323/0LOWER PULL CORD GUIDE ROPE MP2£3.00 Add to
041122430324/0LOWER ROPE GUIDE£2.86 Add to
