Crankcase

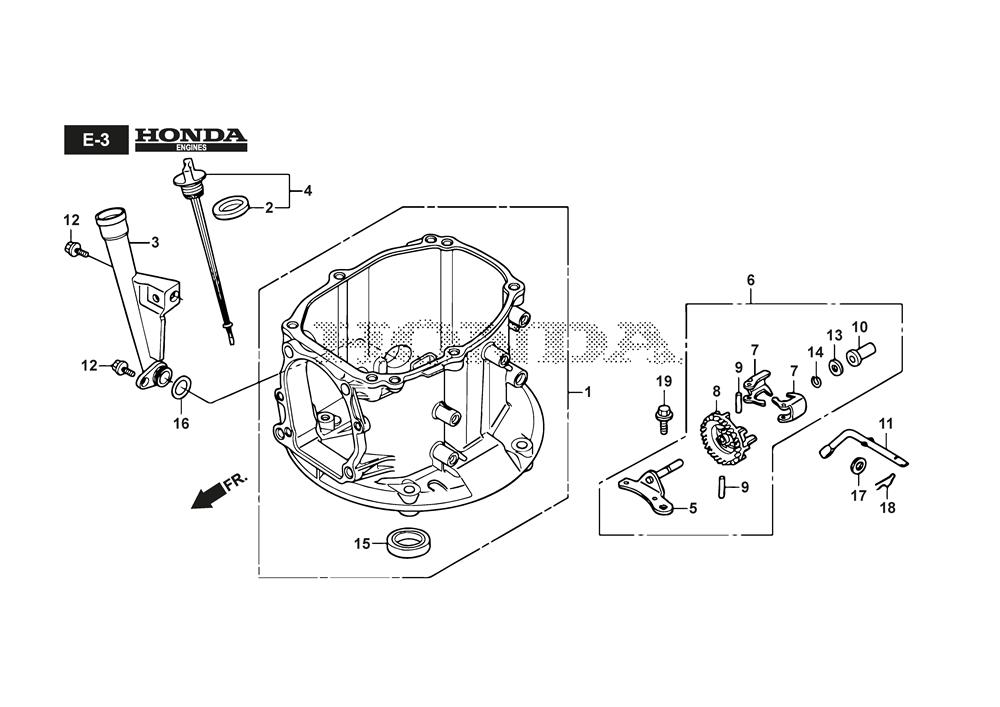

Crankcase assembly details for Stiga TWINCLIP 50 SQ H - GCV 145 A.C. (294512838/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118551712/0CRANKCASE ASSY.£402.28 Add to
003118551912/0OIL FILLER TUBE£25.44 Add to
004118551917/0OIL LEVER GAUGE£15.45 Add to
006118551971/0GOVERNOR ASSEMBLY£25.67 Add to
010118551973/0GOVERNOR SLIDER£5.12 Add to
011118551977/0GOVERNOR ARM SHAFT£6.23 Add to
014118552244/0GOVERNOR HOLDER CLIP£1.74 Add to
015118552254/0OIL SEAL 28 X 41.25 X 6£15.59 Add to
016118552262/0O RING 19.1 X 2.2£2.54 Add to
017118552273/0PLAIN WASHER 6MM£1.74 Add to
