Deck and height adjusting

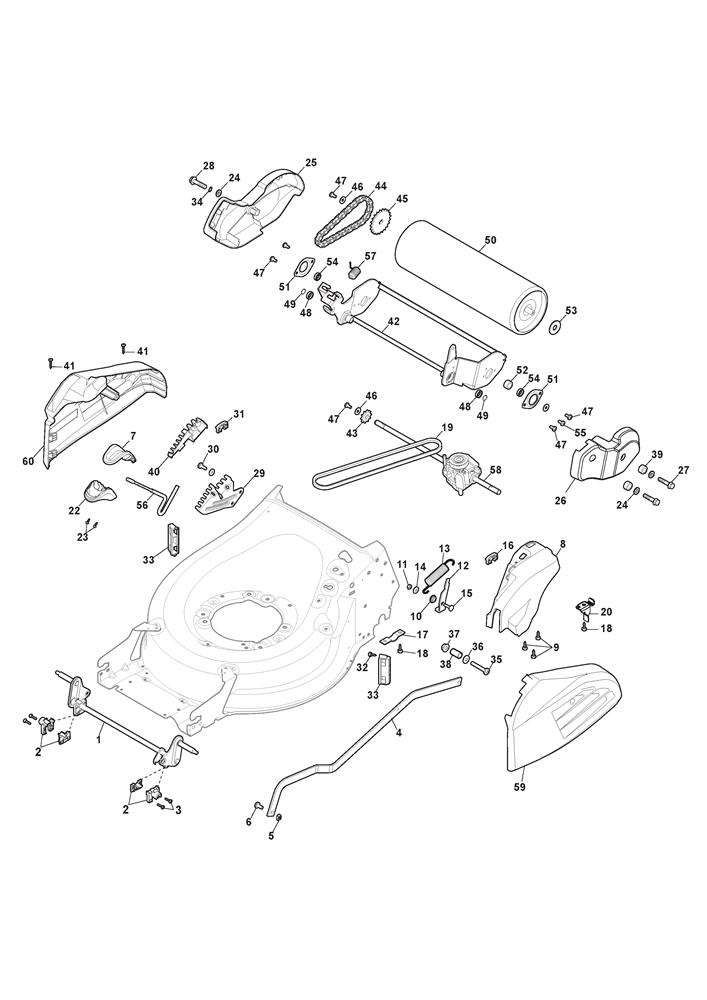

Deck and height adjusting assembly details for Stiga TWINCLIP 50 SVE-R B - B&S 675 IS Instart (294519528/ST1) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381302885/0FRONT WHEELS AXLE ASS.Y ZNB D200 MP1 50£34.35 Add to
002322785305/1AXLE SUPPORT£3.00 Add to
004322869719/1HEIGHT ADJUST ROD CTF MP2 50 ROLLER£39.80 Add to
005112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
006122519823/0WHEEL CONTROL ROD PIN£2.74 Add to
007322394541/0HEIGHT ADJUST KNOB£3.28 Add to
008322055329/0HEIGHT ADJUST COVER [BLACK]£11.18 Add to
009112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
010122517873/0BUSH£3.41 Add to
012322778475/0HEIGHT ADJUST BRACKET£3.15 Add to
013122450480/0SPRING£2.32 Add to
014112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
015112815270/0SCREW M6 x 25£2.06 Add to
016322038407/0AXLE U PLATE£2.06 Add to
017322545147/0AXLE PLATE£2.32 Add to
018112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
019135064393/0VARI-SPEED BELT ZX29 LP=757£26.07 Add to
020322778491/0FIXING PLATE£6.14 Add to
022322394537/0HEIGHT ADJUST KNOB£4.52 Add to
023112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
024112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
025322060272/2R/H ROLLER COVER MP2 50/55 [BLACK]£9.54 Add to
026322060273/1L/H ROLLER COVER MP2 50 [BLACK]£9.54 Add to
027112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
028112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
029322735605/0HEIGHT ADJUST QUADRANT£7.92 Add to
030112735654/0SELF-TAPPING SCREW M5 x 16£2.74 Add to
031118737864/0FIXING PLATE D=9.5£1.79 Add to
032112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
033322546053/0PLATE£3.00 Add to
034119035002/0O RING 5.28 x 1.78£2.06 Add to
035112691200/0HEX-HEAD SCREW M8 x 45£2.06 Add to
036122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
037112155015/0SELF-GRIP NUT M8(FROM 1ST SEPT 2015)£2.06 Add to
038122167840/0SPACER£2.06 Add to
039122170610/0SPACER (OBSOLETE) (OBSOLETE)N/A
040322570216/0HEIGHT ADJUST QUADRANT£5.87 Add to
041112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
042381302907/0ROLLER FRAME ASSEMBLY£94.31 Add to
0431111-3423-01SPROCKET 10T£15.13 Add to
0441111-3562-01ROLLER CHAIN (RIVETED)£20.45 Add to
0451111-3424-01SPROCKET 21T£18.28 Add to
046112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
047112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
048119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
049112608600/0CIRCLIP D=12£2.08 Add to
050381007403/0ROLLER ASSEMBLY [50]£294.82 Add to
051322207325/0BEARING SUPPORT PLATE£2.32 Add to
052122170820/0ROLLER SPACER£18.13 Add to
053112523100/0WASHER M12 14 x 36 x 3£2.06 Add to
054119216036/0BEARING 6201-2RS£9.96 Add to
055112735664/0SCREW M6 x 16£2.02 Add to
056322321551/0HEIGHT ADJUST LEVER£10.73 Add to
057122446194/0SPRING£3.83 Add to
058322060296/0FIXED L/H ROLLER COVER MP2 50 [BLACK]£12.96 Add to
059322060296/0FIXED L/H ROLLER COVER MP2 50 [BLACK]£12.96 Add to
060322060295/0FIXED R/H ROLLER COVER MP2 50 [BLACK]£12.96 Add to
